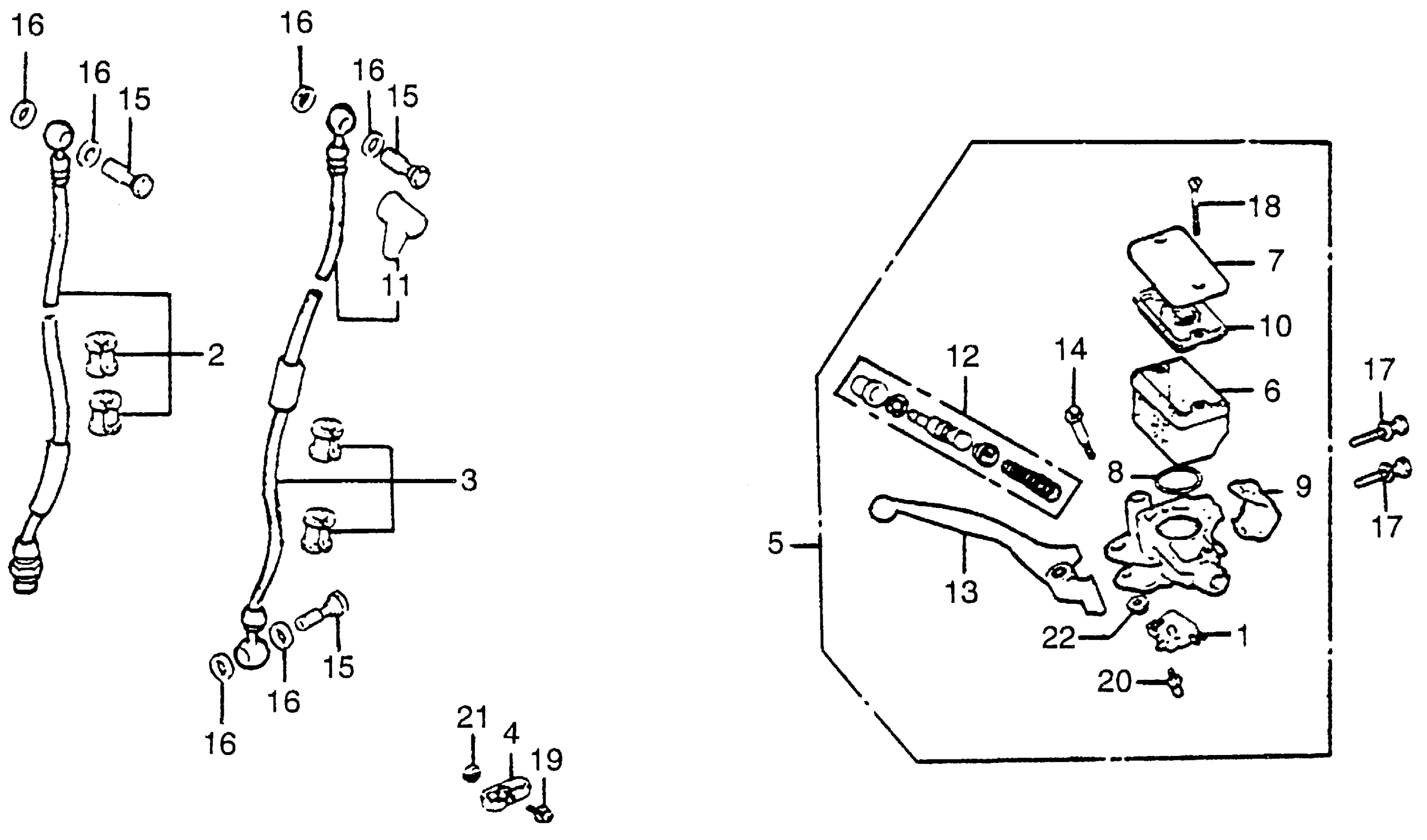

Honda GL1100A (83) GOLD WING, USA, VIN# 1HFSC020-DA300101 FR BRAKE MASTER CYL. Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MA5-671

$24.51

2

HOSE A, FR. BRAKE (NOT AVAILABLE) This part replaces 45125-MB9-951.

45125-MB9-952

Unavailable

2

HOSE A, FR. BRAKE (NOT AVAILABLE)

45125-MB9-952

Unavailable

2

HOSE A, FR. BRAKE (NOT AVAILABLE) This part replaces 45125-MB9-781.

45125-MB9-952

Unavailable

3

HOSE B, FR. BRAKE (NOT AVAILABLE) This part replaces 45126-MB9-781.

45126-MB9-782

Unavailable

3

HOSE B, FR. BRAKE (NOT AVAILABLE)

45126-MB9-782

Unavailable

4

CLAMP, BRAKE HOSE (NOT AVAILABLE)

45128-463-000

Unavailable

5

MASTER CYLINDER ASSY., FR. (NOT AVAILABLE)

45500-447-732

Unavailable

6

CUP, OIL

45511-MA5-671

$44.69

7

CAP, OIL CUP

45513-MA5-671

Unavailable

8

O-RING (26.7X2.4)

45516-166-006

$6.81

9

HOLDER, MASTER CYLINDER

45517-MA5-671

$29.30

10

DIAPHRAGM This part replaces 45520-MA5-671.

45520-MA5-672

$18.13

10

DIAPHRAGM

45520-MA5-672

$18.13

11

BOOT, MASTER CYLINDER

45522-422-000

$8.68

12

MASTER CYLINDER SET

45530-MA4-671

$47.76

13

LEVER, R. HANDLEBAR

53175-MA5-671

Unavailable

14

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

$9.43

15

BOLT, OIL This part replaces 90145-300-000.

90145-300-010

$9.68

15

BOLT, OIL

90145-300-010

$9.68

16

WASHER, OIL BOLT

90545-300-000

$3.99

17

BOLT-WASHER (6X25)

93401-06025-07

Unavailable

17

BOLT-WASHER (6X25) This part replaces 93481-06025-07.

93401-06025-07

Unavailable

18

SCREW, FLAT (4X45)

93600-04045-1G

$1.49

19

SCREW-WASHER (4X16)

93891-04016-00

Unavailable

20

SCREW-WASHER (4X12)

93893-04012-08

$1.49

20

SCREW-WASHER (4X12) This part replaces 93893-04012-18.

93893-04012-08

$1.49

21

NUT, HEX. (4MM)

94002-04000-0S

$1.49

22

NUT, FLANGE (6MM)

94050-06000

$1.49
