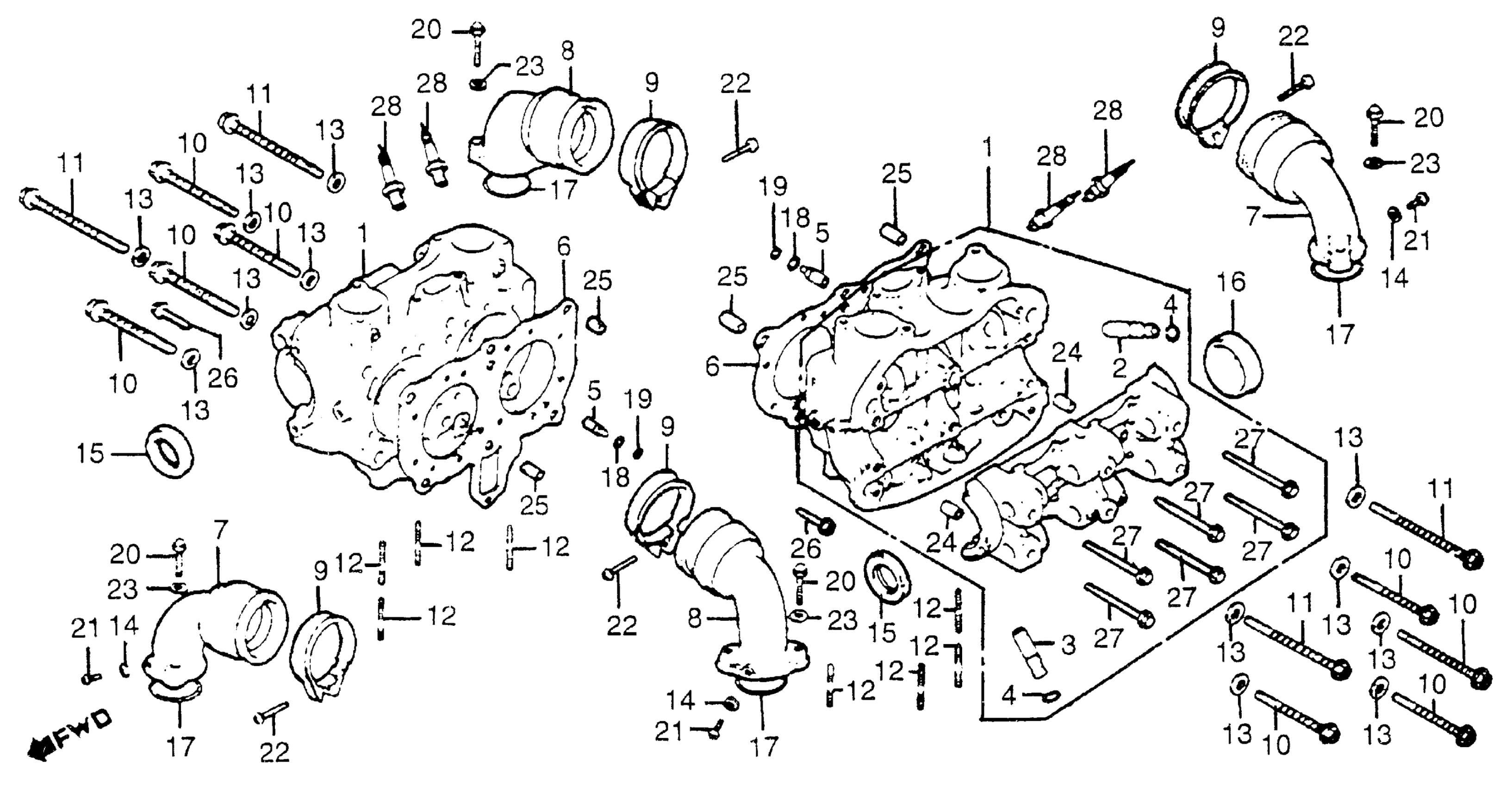

Honda GL1100A (83) GOLD WING, USA, VIN# 1HFSC020-DA300101 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD (NOT AVAILABLE)

12200-463-010

Unavailable

2

GUIDE, VALVE

12204-371-305

Unavailable

3

GUIDE, VALVE

12204-371-305

Unavailable

3

GUIDE, VALVE This part replaces 12205-371-305.

12204-371-305

Unavailable

4

CLIP, VALVE GUIDE

12211-250-310

$4.39

5

ORIFICE, OIL CONTROL

12238-371-000

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-MG9-000.

12251-MG9-306

$76.70

6

GASKET, CYLINDER HEAD

12251-MG9-306

$76.70

6

GASKET, CYLINDER HEAD This part replaces 12251-463-000.

12251-MG9-306

$76.70

7

MANIFOLD A, IN. (NOT AVAILABLE)

17110-431-010

Unavailable

8

MANIFOLD B, IN. (NOT AVAILABLE)

17120-431-010

Unavailable

9

BAND, AIR CLEANER CONNECTING TUBE (54) This part replaces 17255-371-000.

95018-54250

$5.14

9

BAND, AIR CLEANER CONNECTING TUBE (54)

95018-54250

$5.14

10

BOLT, FLANGE (10X90)

90001-371-013

Unavailable

11

BOLT, FLANGE (10X115)

90002-371-013

Unavailable

12

BOLT, STUD (8X43)

90035-371-000

$3.85

13

WASHER (21X11X2.3)

90438-634-000

Unavailable

14

WASHER, SEALING (5MM)

90452-323-000

$1.59

15

OIL SEAL (27X43X9)

91209-371-003

$17.60

16

SEAL, CAP (43X9)

91209-463-013

$11.58

17

O-RING (40X2.6) This part replaces 91301-371-003.

91301-371-005

$4.65

17

O-RING (40X2.6)

91301-371-005

$4.65

18

O-RING (6.5X1.5)

91305-371-003

$2.91

19

O-RING (4.1X1.5)

91308-371-003

$4.83

20

BOLT, CAP (6X32)

92500-06032-0B

$3.67

20

BOLT, CAP (6X32) This part replaces 92500-06032-02.

92500-06032-0B

$3.67

21

SCREW, PAN (5X8)

93500-05008-0A

$1.49

22

SCREW, PAN (5X20)

93500-05020-0G

$1.49

23

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

23

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

23

WASHER, PLAIN (6MM)

94101-06800

$1.49

24

PIN, DOWEL (10X16)

94301-10160

$2.28

25

PIN, DOWEL (12X20)

94301-12200

$2.29

26

BOLT, FLANGE (6X28)

95700-06028-00

$1.73

26

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

27

BOLT, FLANGE (8X70) This part replaces 95700-08070-00.

95701-08070-00

$2.67

27

BOLT, FLANGE (8X70)

95701-08070-00

$2.67

28

SPARK PLUG (DPR7EA-9) (NGK) | (Optional).

98069-57916

$2.62

28

SPARK PLUG (X22EPR-U9) (DENSO) | (Optional).

98069-57926

$2.54

28

SPARK PLUG (DPR8EA-9) (NGK)

98069-58916

$2.62

28

SPARK PLUG (X24EPR-U9) (DENSO)

98069-58926

$2.54

28

SPARK PLUG (DPR9EA-9) (NGK) | (Optional).

98069-59916

$2.62

28

SPARK PLUG (X27EPR-U9) (DENSO) | (Optional).

98069-59926

$2.54
