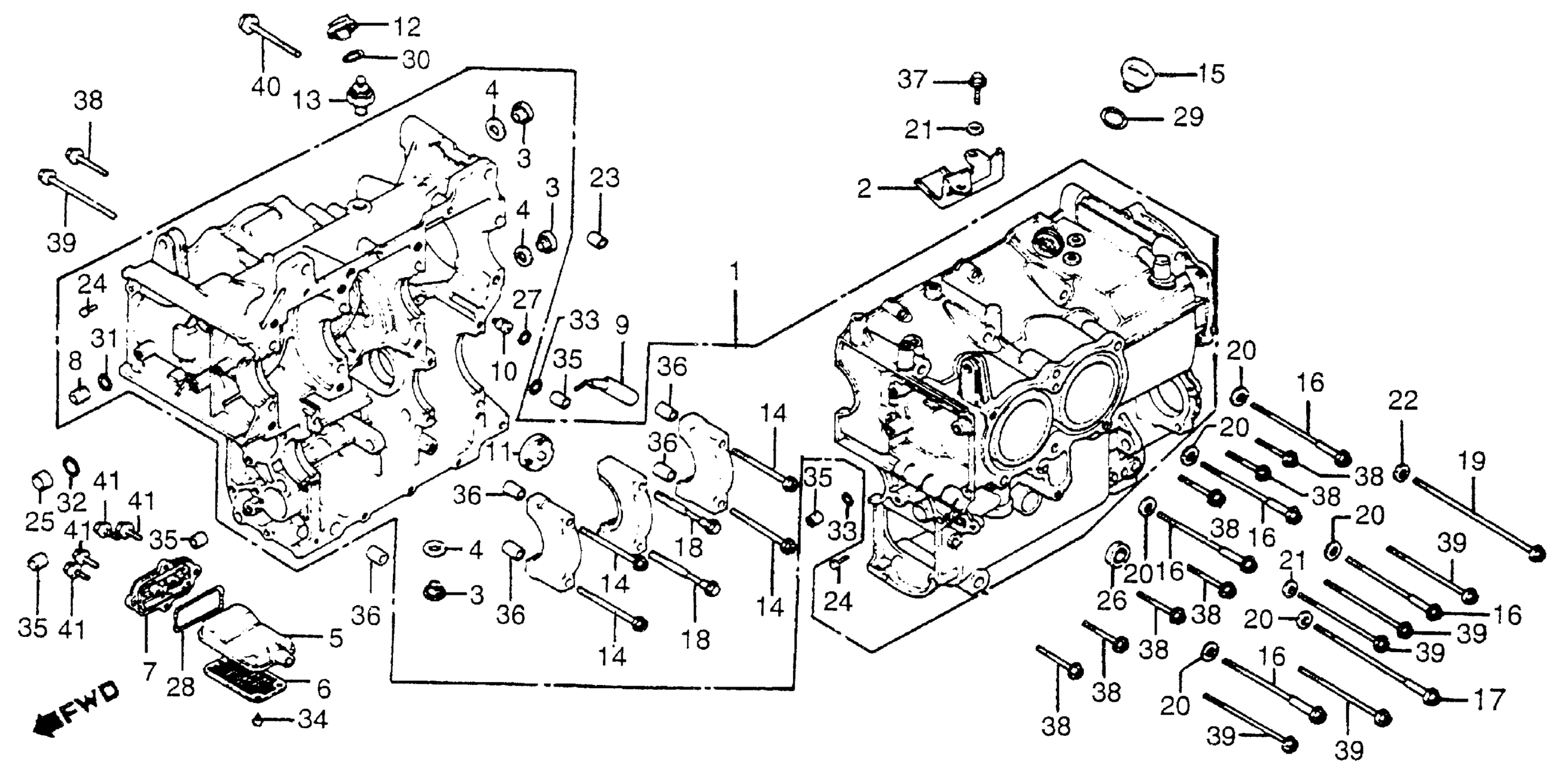

Honda GL1100A (83) GOLD WING, USA, VIN# 1HFSC020-DA300101 CYLINDER BLOCK Diagram

#

Description
Price

1

BLOCK ASSY., CYLINDER

11000-MB9-000

Unavailable

2

GUIDE, OIL (NOT AVAILABLE)

11220-371-000

Unavailable

3

BOLT, SEALING (18MM)

12206-ML8-300

$9.11

3

BOLT, SEALING (18MM) This part replaces 12206-371-305.

12206-ML8-300

$9.11

4

WASHER, SEALING BOLT

12207-611-300

Unavailable

5

CASE, OIL STRAINER (NOT AVAILABLE)

15151-371-000

Unavailable

6

SCREEN, OIL STRAINER (NOT AVAILABLE)

15152-371-000

Unavailable

7

COVER, OIL STRAINER (NOT AVAILABLE)

15153-371-000

Unavailable

8

PLUG, OIL TUBE (NOT AVAILABLE)

15337-300-010

Unavailable

9

NOZZLE, OIL SUPPLY (NOT AVAILABLE)

15520-371-000

Unavailable

10

ORIFICE, CHAIN

15530-371-000

Unavailable

11

FINDER, OIL LEVEL

15661-KM3-005

Unavailable

11

FINDER, OIL LEVEL This part replaces 15661-371-015.

15661-KM3-005

Unavailable

12

CAP, LEVEL GAUGE (NOT AVAILABLE)

25611-371-000

Unavailable

13

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-MB9-004.

35500-MJ4-024

$42.43

13

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-MJ0-004.

35500-MJ4-024

$42.43

13

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-MJ4-004.

35500-MJ4-024

$42.43

13

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-MJ4-014.

35500-MJ4-024

$42.43

13

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$42.43

14

BOLT, FLANGE (10X82) (NOT AVAILABLE)

90003-371-013

Unavailable

15

BOLT, SPECIAL (25MM) This part replaces 90008-371-000.

90008-443-000

Unavailable

15

BOLT, SPECIAL (25MM)

90008-443-000

Unavailable

16

BOLT, FLANGE (10X120) This part replaces 90009-371-003.

90009-371-015

$10.71

16

BOLT, FLANGE (10X120) This part replaces 90009-371-005.

90009-371-015

$10.71

16

BOLT, FLANGE (10X120) (SATO)

90009-371-015

$10.71

17

BOLT, FLANGE (10X166) (TOKA1) (NOT AVAILABLE)

90010-371-003

Unavailable

17

BOLT, FLANGE (10X166) (SATO) (NOT AVAILABLE)

90010-371-005

Unavailable

18

BOLT, FLANGE (12X90) (NOT AVAILABLE)

90024-463-000

Unavailable

19

BOLT, FLANGE (8X175) (NOT AVAILABLE)

90026-371-004

Unavailable

20

WASHER, SPECIAL (11X21X2.3)

90438-463-000

$2.53

21

WASHER, SEALING (6MM)

90441-028-010

$2.92

22

WASHER, SEALING (8MM)

90441-422-000

$4.85

23

COLLAR (15X20)

90702-371-000

$5.87

24

PIN (4X12MM) (NOT AVAILABLE)

90702-634-300

Unavailable

25

COLLAR (17X10) (NOT AVAILABLE)

90703-371-000

Unavailable

26

OIL SEAL (14X28X7) (ARAI)

91206-286-013

$3.01

27

O-RING (9.5X1.7)

91259-333-000

$3.69

28

GASKET A, OIL STRAINER (NOT AVAILABLE)

91303-371-000

Unavailable

29

O-RING (25.4X2.4)

91307-703-000

Unavailable

30

O-RING (27X2.7)

91318-500-000

Unavailable

31

O-RING (13X2.5)

91319-300-000

$5.07

32

O-RING (17.0X2.5) (ARAI)

91333-KE5-003

$2.13

32

O-RING (17.0X2.5) (ARAI) This part replaces 91333-567-010.

91333-KE5-003

$2.13

33

O-RING (7.8X1.9) (NOK)

91352-SA5-952

$2.68

33

O-RING (7.8X1.9) (NOK) This part replaces 91361-706-000.

91352-SA5-952

$2.68

34

SCREW, TAPPING (3X8)

93901-12110

$1.49

35

PIN, DOWEL (8X14)

94301-08140

$2.25

36

PIN, DOWEL (12X20)

94301-12200

$2.29

37

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

37

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

38

BOLT, FLANGE (6X35) This part replaces 95700-06035-00.

95701-06035-00

$1.80

38

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

39

BOLT, FLANGE (6X110) This part replaces 95700-06110-00.

95701-06110-00

$3.09

39

BOLT, FLANGE (6X110)

95701-06110-00

$3.09

40

BOLT, FLANGE (8X70) This part replaces 95700-08070-00.

95701-08070-00

$2.67

40

BOLT, FLANGE (8X70)

95701-08070-00

$2.67

41

BOLT, FLANGE (6X20) This part replaces 96000-06020-00.

96001-06020-00

$1.49

41

BOLT, FLANGE (6X20)

96001-06020-00

$1.49
