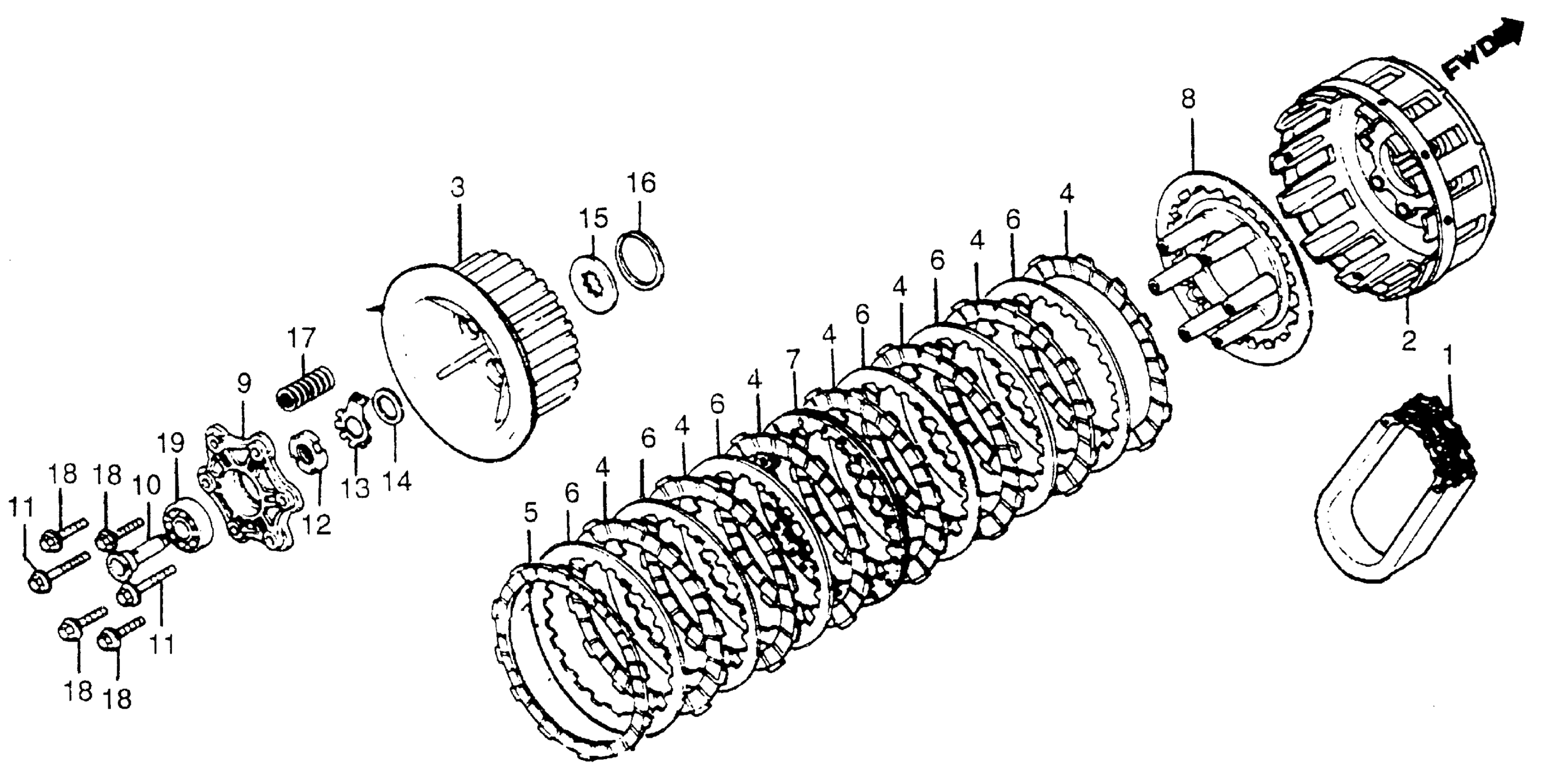

Honda GL1100A (83) GOLD WING, USA, VIN# 1HFSC020-DA300101 CLUTCH Diagram

#

Description
Price

1

CHAIN, OIL PUMP (NOT AVAILABLE)

15130-371-003

Unavailable

2

CLUTCH (OUTER) (NOT AVAILABLE)

22100-463-000

Unavailable

3

CENTER, CLUTCH (NOT AVAILABLE)

22120-MB9-000

Unavailable

3

CENTER, CLUTCH (NOT AVAILABLE) This part replaces 22120-463-000.

22120-MB9-000

Unavailable

4

DISK A, CLUTCH FRICTION

22201-MG9-000

$22.51

4

DISK A, CLUTCH FRICTION This part replaces 22201-463-000.

22201-MG9-000

$22.51

5

DISK B, CLUTCH FRICTION

22202-463-000

Unavailable

6

PLATE A, CLUTCH This part replaces 22321-MG9-000.

22321-371-010

$26.21

6

PLATE A, CLUTCH

22321-371-010

$26.21

6

PLATE A, CLUTCH This part replaces 22321-463-000.

22321-371-010

$26.21

7

PLATE B, CLUTCH (NOT AVAILABLE)

22322-463-000

Unavailable

8

PLATE, CLUTCH PRESSURE (NOT AVAILABLE)

22350-MC7-000

Unavailable

8

PLATE, CLUTCH PRESSURE (NOT AVAILABLE) This part replaces 22350-463-000.

22350-MC7-000

Unavailable

9

PLATE, CLUTCH LIFTER (NOT AVAILABLE)

22360-463-000

Unavailable

10

PIN, CLUTCH LIFTER GUIDE (NOT AVAILABLE)

22366-MB9-000

Unavailable

11

BOLT, FLANGE (6X32) (NOT AVAILABLE)

90008-422-000

Unavailable

12

NUT, LOCK (20MM) (NOT AVAILABLE)

90204-426-000

Unavailable

13

WASHER, LOCK (20MM) (NOT AVAILABLE)

90431-463-000

Unavailable

14

WASHER, LOCK

90432-121-000

$4.21

15

WASHER, SPLINE (23MM) This part replaces 90432-371-000.

90433-MB0-000

$15.39

15

WASHER, SPLINE (23MM)

90433-MB0-000

$15.39

16

CIRCLIP (OUTER) (40MM) (NOT AVAILABLE)

90602-371-000

Unavailable

17

SPRING, CLUTCH

95014-75140

$3.06

18

BOLT, FLANGE (6X25)

95701-06025-08

$1.72

18

BOLT, FLANGE (6X25) This part replaces 95720-06025-08.

95701-06025-08

$1.72

19

BEARING, RADIAL BALL (6203)

96100-62030-00

$8.70
