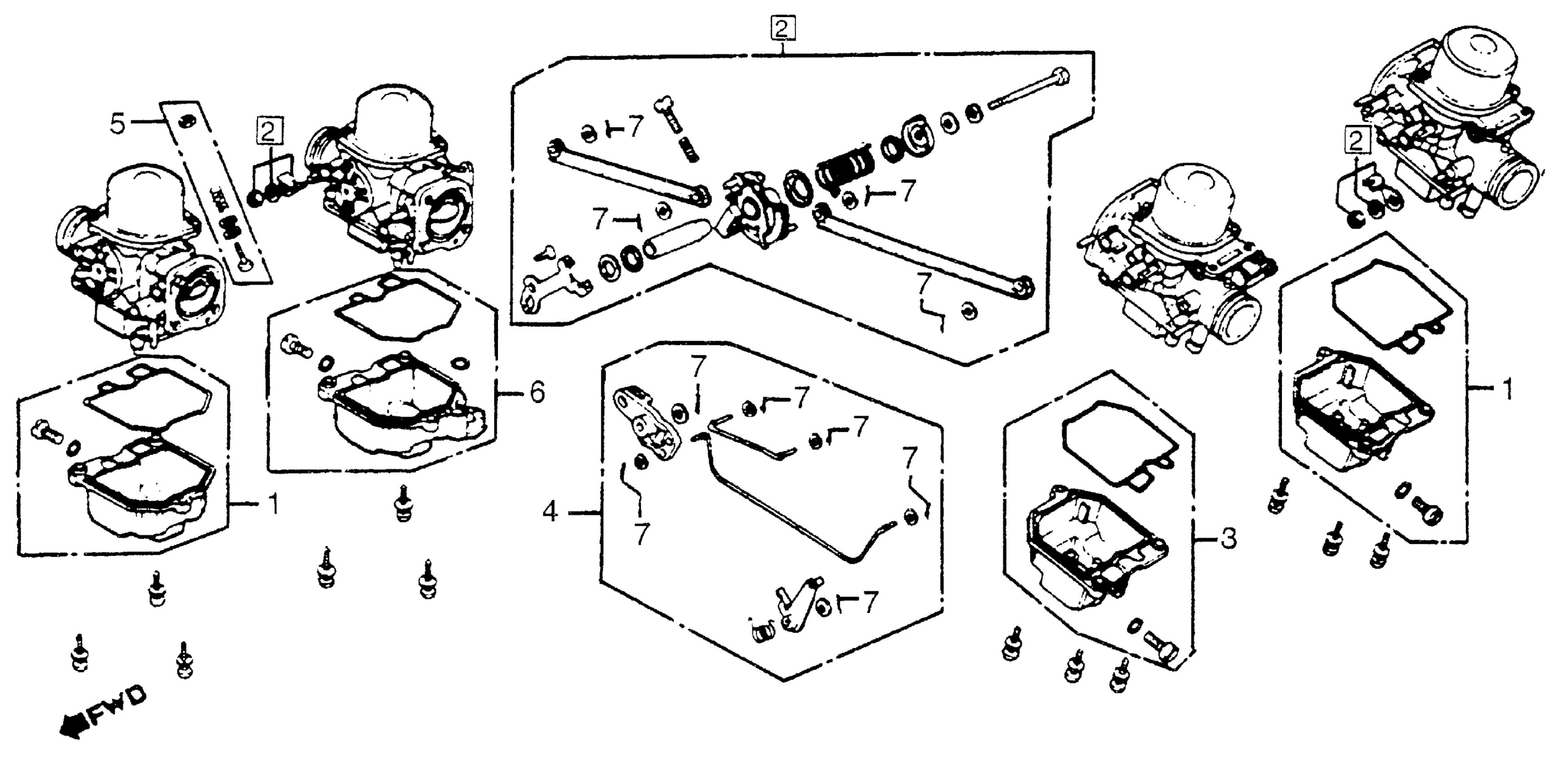

Honda GL1100A (83) GOLD WING, USA, VIN# 1HFSC020-DA300101 CARBURETOR COMP. II Diagram

#

Description

Price

1

CHAMBER SET A, FLOAT (NOT AVAILABLE)

16015-463-004

Unavailable

2

LINK SET (NOT AVAILABLE)

16017-463-004

Unavailable

3

CHAMBER SET B, FLOAT (NOT AVAILABLE)

16023-463-004

Unavailable

4

ROD SET, CHOKE (NOT AVAILABLE)

16025-463-004

Unavailable

5

SCREW SET C (NOT AVAILABLE)

16029-PC6-005

Unavailable

5

SCREW SET C This part replaces 16029-413-004.

16029-PC6-005

Unavailable

6

CHAMBER SET C, FLOAT (NOT AVAILABLE)

16045-463-004

Unavailable

7

PIN, SPLIT (1.0MM) This part replaces 94201-10080.

94201-10150

$1.49

7

PIN, SPLIT (1.0MM) This part replaces 94201-10100.

94201-10150

$1.49

7

PIN, SPLIT (1.0MM)

94201-10150

$1.49
