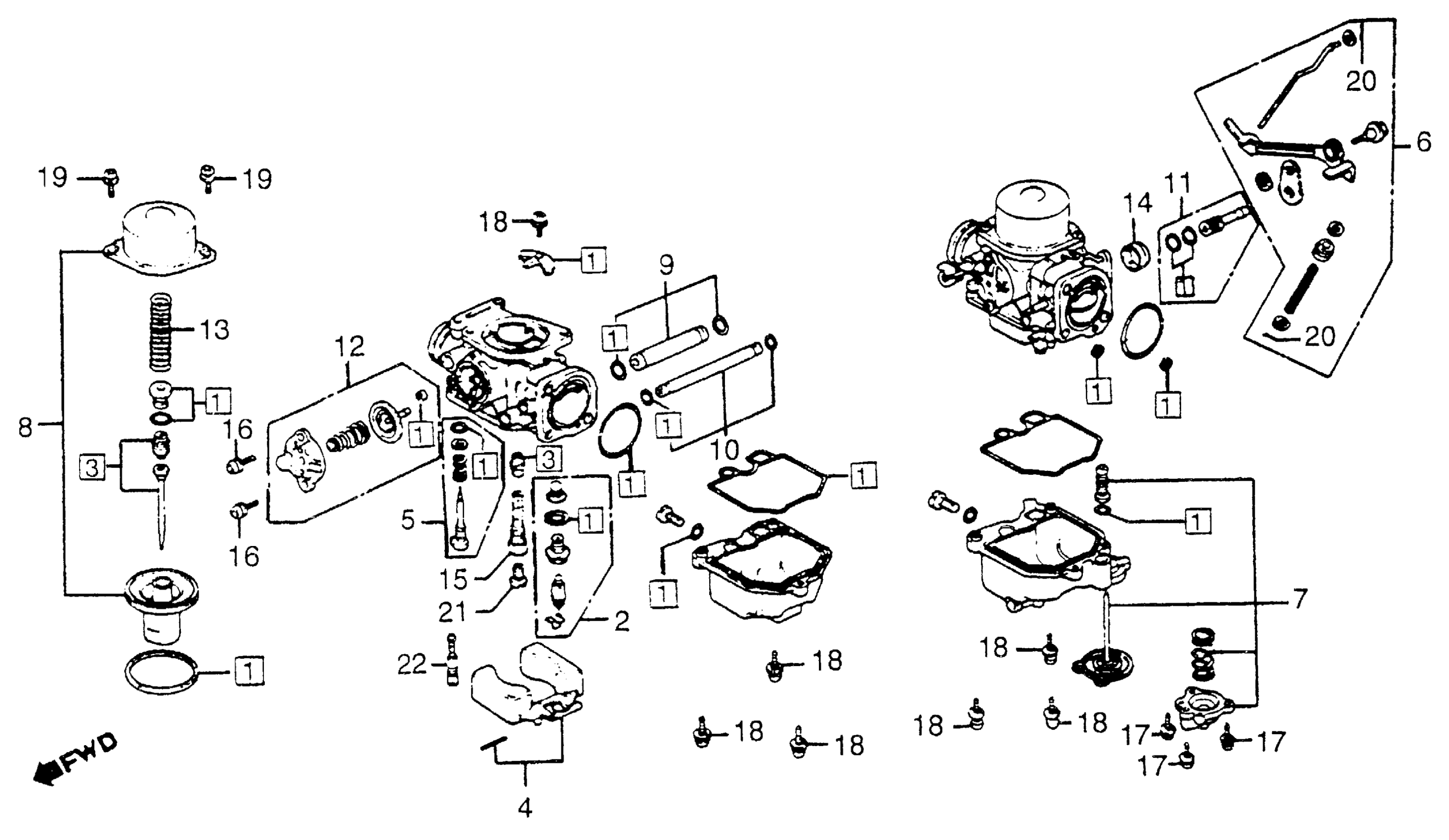

Honda GL1100A (83) GOLD WING, USA, VIN# 1HFSC020-DA300101 CARBURETOR COMP. I Diagram

#

Description
Price

1

GASKET SET

16010-463-004

$59.93

2

VALVE SET, FLOAT

16011-PK1-005

$79.13

2

VALVE SET, FLOAT This part replaces 16011-679-005.

16011-PK1-005

$79.13

3

NEEDLE SET, JET

16012-MB9-004

Unavailable

4

FLOAT SET

16013-679-005

Unavailable

5

SCREW SET A

16016-KC2-970

$25.35

5

SCREW SET A This part replaces 16016-413-751.

16016-KC2-970

$25.35

6

ROD SET, PUMP (NOT AVAILABLE)

16019-463-004

Unavailable

7

DIAPHRAGM SET, PUMP

16021-463-004

Unavailable

8

PISTON SET, VACUUM (NOT AVAILABLE) This part replaces 16022-463-004.

16022-463-014

Unavailable

8

PISTON SET, VACUUM (NOT AVAILABLE)

16022-463-014

Unavailable

8

PISTON SET, VACUUM (NOT AVAILABLE) This part replaces 16022-463-305.

16022-463-014

Unavailable

9

JOINT SET A, FUEL (NOT AVAILABLE)

16027-463-004

Unavailable

10

JOINT SET B, FUEL (NOT AVAILABLE)

16031-463-004

Unavailable

11

JOINT SET C, FUEL

16033-463-004

Unavailable

12

VALVE SET, AIR CUT This part replaces 16048-429-671.

16048-443-901

Unavailable

12

VALVE SET, AIR CUT This part replaces 16048-429-771.

16048-443-901

Unavailable

13

SPRING, VACUUM PISTON (NOT AVAILABLE)

16050-463-004

Unavailable

14

CAP, CHOKE DUST

16148-141-881

$4.75

14

CAP, CHOKE LEVER DUST This part replaces 16148-943-003.

16148-141-881

$4.75

15

HOLDER, NEEDLE JET

16165-417-004

$24.74

16

SCREW-WASHER (4X10)

93892-04010-00

$1.49

17

SCREW-WASHER (4X12)

93892-04012-00

$1.49

18

SCREW-WASHER (4X16)

93892-04016-00

$1.49

19

SCREW-WASHER (5X16)

93892-05016-00

$1.49

20

PIN, SPLIT (1.0MM) This part replaces 94201-10080.

94201-10150

$1.49

20

PIN, SPLIT (1.0MM) This part replaces 94201-10100.

94201-10150

$1.49

20

PIN, SPLIT (1.0MM)

94201-10150

$1.49

21

JET, MAIN (#145) This part replaces 99101-GHB-1450.

99101-MCK-1450

Unavailable

21

JET, MAIN (#145)

99101-MCK-1450

Unavailable

21

JET, MAIN (#145) This part replaces 99101-393-1450.

99101-MCK-1450

Unavailable

22

JET,SLOW #35 This part replaces HC 1191105.

99103-MR4-0350

$12.80

22

JET,SLOW #35 This part replaces HC0110276.

99103-MR4-0350

$12.80

22

JET,SLOW #35 This part replaces 99103-MA1-0350.

99103-MR4-0350

$12.80

22

JET,SLOW #35 This part replaces 99103-441-035.

99103-MR4-0350

$12.80

22

JET,SLOW #35 This part replaces 99103-441-0350.

99103-MR4-0350

$12.80
