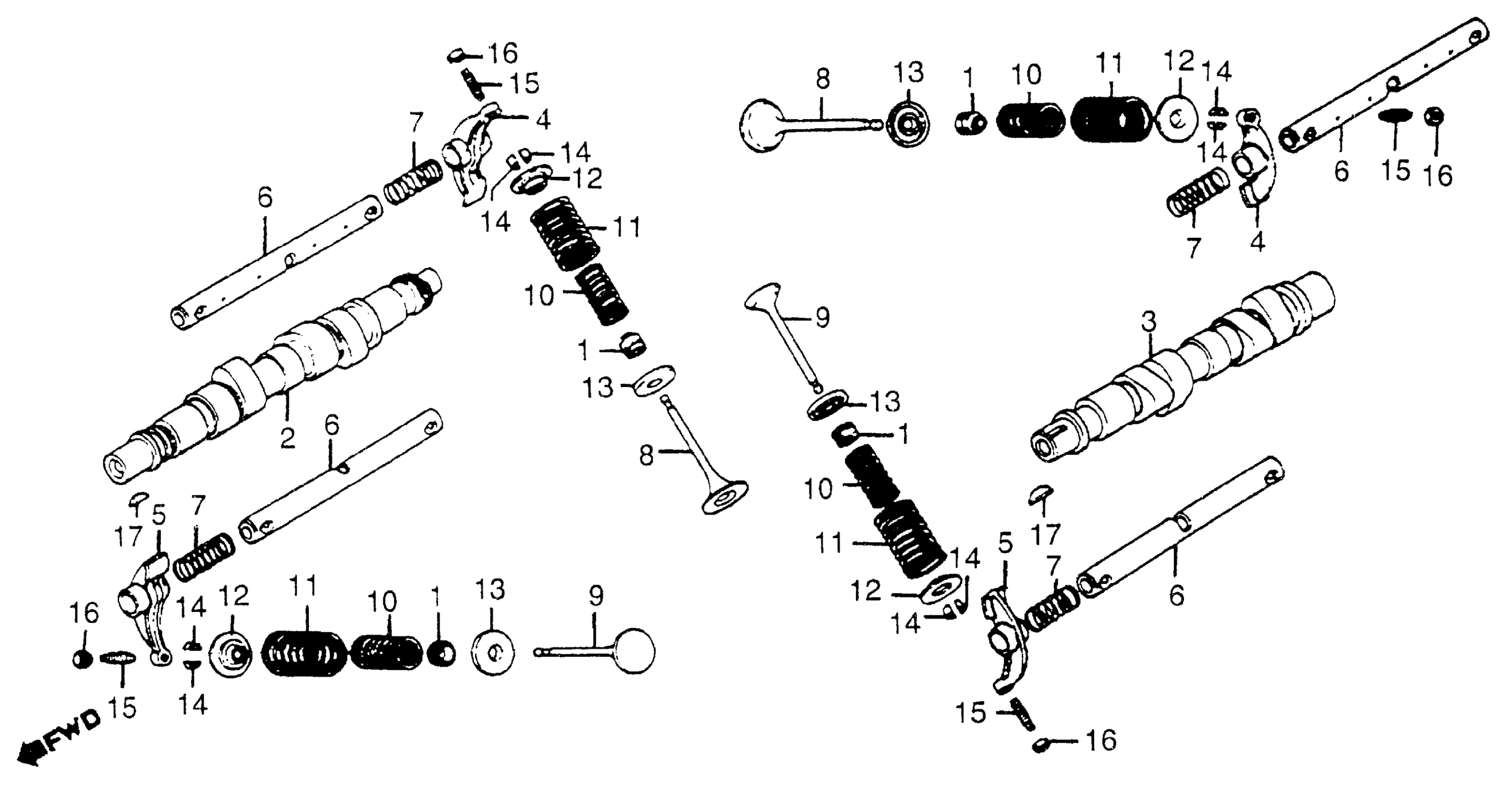

Honda GL1100A (83) GOLD WING, USA, VIN# 1HFSC020-DA300101 CAMSHAFT + VALVE Diagram

#

Description
Price

1

SEAL, VALVE STEM (NOK)

12209-MB9-003

$12.43

2

CAMSHAFT, R. (NOT AVAILABLE)

14110-463-000

Unavailable

3

CAMSHAFT, L. (NOT AVAILABLE)

14211-463-000

Unavailable

4

ARM A, VALVE ROCKER

14611-463-000

Unavailable

5

ARM B, VALVE ROCKER (NOT AVAILABLE)

14621-463-000

Unavailable

6

SHAFT, VALVE ROCKER ARM

14631-371-000

Unavailable

7

SPRING, VALVE ROCKER ARM SIDE (NOT AVAILABLE)

14642-371-000

Unavailable

8

VALVE, IN.

14711-MB9-780

$39.25

9

VALVE, EX.

14721-MB9-405

Unavailable

9

VALVE, EX. This part replaces 14721-MB9-780.

14721-MB9-405

Unavailable

10

SPRING, VALVE (INNER) (NIPPON HATSUJO)

14751-611-003

Unavailable

11

SPRING, VALVE (OUTER) (NIPPON HATSUJO)

14761-611-003

$7.00

12

RETAINER, VALVE SPRING

14771-410-010

$8.75

12

RETAINER, VALVE SPRING This part replaces 14771-679-000.

14771-410-010

$8.75

13

SEAT, VALVE SPRING (NOT AVAILABLE)

14775-679-000

Unavailable

14

COTTER, VALVE

14781-MB9-000

$4.95

15

SCREW, TAPPET ADJUSTING This part replaces 90012-300-000.

90012-426-000

$5.94

15

SCREW, TAPPET ADJUSTING

90012-426-000

$5.94

16

NUT, TAPPET ADJ. This part replaces 90205-300-000.

90206-250-000

$2.94

16

NUT, TAPPET ADJUSTING

90206-250-000

$2.94

17

KEY, WOODRUFF (25X14)

94401-25140

$1.75
