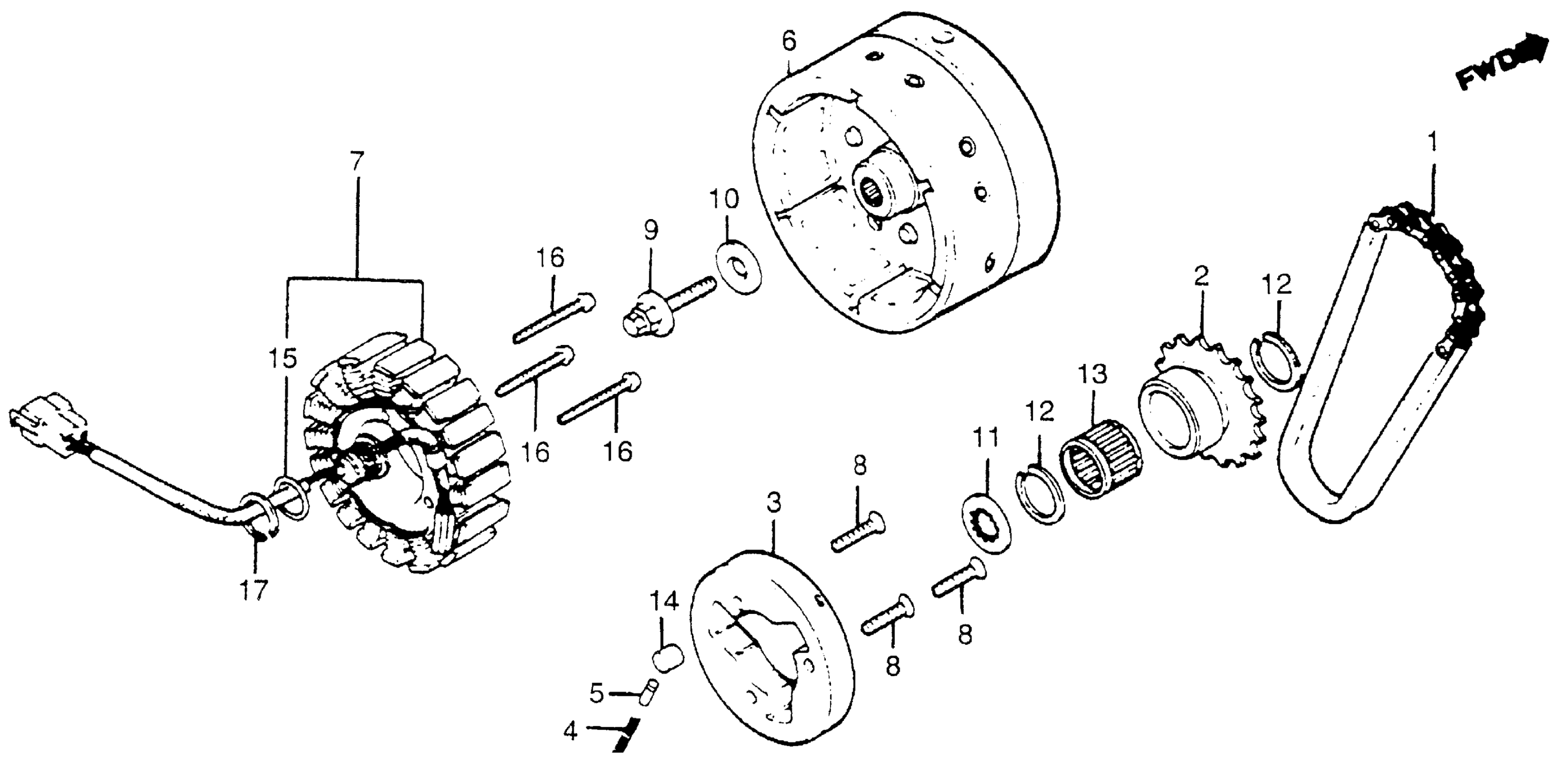

Honda GL1100A (83) GOLD WING, USA, VIN# 1HFSC020-DA300101 ALTERNATOR + STARTER CLUTCH Diagram

#

Description
Price

1

CHAIN, STARTER (DAIDO) (NOT AVAILABLE)

28101-371-003

Unavailable

2

SPROCKET, STARTING (NOT AVAILABLE)

28111-371-000

Unavailable

3

CLUTCH, STARTING (NOT AVAILABLE)

28120-371-000

Unavailable

4

SPRING, STARTER CLUTCH ROLLER

28125-516-030

$2.73

5

CAP, STARTER CLUTCH ROLLER SPRING

28126-415-000

$18.84

6

ROTOR (KOKUSAN) (NOT AVAILABLE)

31110-MB9-003

Unavailable

7

STATOR (KOKUSAN)

31120-MB9-003

Unavailable

8

SCREW, FLAT (8X22)

90015-371-003

Unavailable

9

BOLT, SETTING (12X40) (NOT AVAILABLE)

90023-371-000

Unavailable

10

WASHER (12.2X33X3.2)

90401-371-000

$6.43

11

WASHER, THRUST (25X24) (NOT AVAILABLE)

90454-371-000

Unavailable

12

CIRCLIP (INNER) (33MM) (NOT AVAILABLE)

90605-371-000

Unavailable

13

BEARING, NEEDLE (28X33X26) (NOT AVAILABLE) This part replaces 91101-371-004.

91101-371-006

Unavailable

13

BEARING, NEEDLE (28X33X26) (NOT AVAILABLE)

91101-371-006

Unavailable

13

BEARING, NEEDLE (28X33X26) (NOT AVAILABLE) This part replaces 91101-371-008.

91101-371-006

Unavailable

14

ROLLER (15X13)

91101-516-000

$6.32

15

O-RING (23X2)

91354-371-000

$3.19

16

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.49

16

SCREW, PAN (6X40)

93500-06040-0A

$1.49

17

CIRCLIP (OUTER) (26MM)

94511-26000

Unavailable
