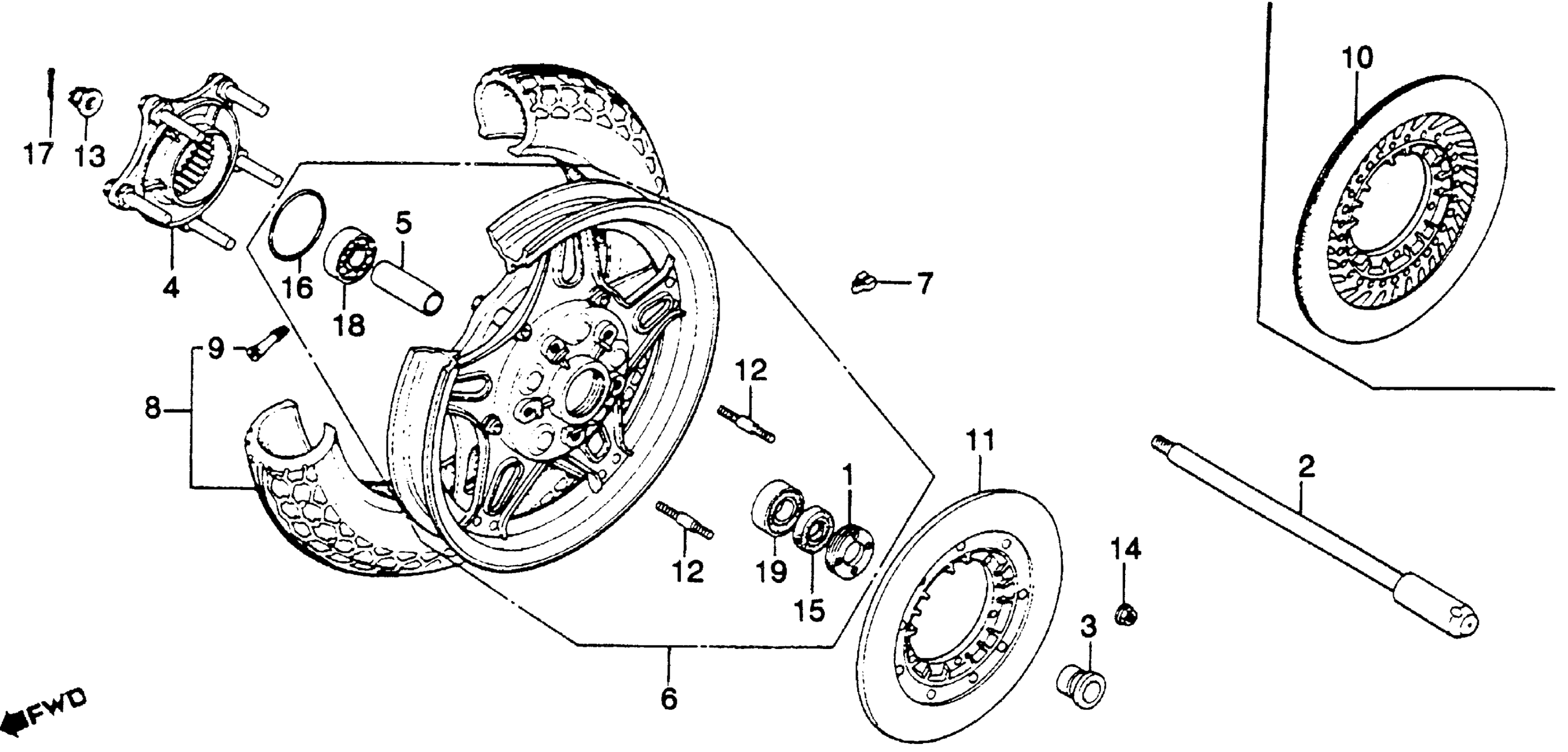

Honda GL1100A (82) GOLD WING, USA, VIN# 1HFSC020-CA200103 TO 1HFSC020-CA232930 REAR WHEEL Diagram

#

Description
Price

1

RETAINER, RR. WHEEL BEARING

41231-286-000

$29.11

2

AXLE, RR. WHEEL (NOT AVAILABLE)

42301-463-000

Unavailable

3

COLLAR, RR. BRAKE PANEL SIDE

42313-422-000

$38.23

4

FLANGE, FINAL DRIVEN This part replaces 42615-MB9-000.

42615-463-305

Unavailable

4

FLANGE, FINAL DRIVEN This part replaces 42615-463-000.

42615-463-305

Unavailable

4

FLANGE, FINAL DRIVEN

42615-463-305

Unavailable

5

COLLAR A, RR. DISTANCE

42620-MB4-405

Unavailable

5

COLLAR A, RR. DISTANCE This part replaces 42620-431-670.

42620-MB4-405

Unavailable

6

WHEEL, RR. (NOT AVAILABLE)

42650-MB9-670

Unavailable

7

WEIGHT, BALANCE (20G)

42705-410-000

Unavailable

7

WEIGHT, BALANCE (30G)

42706-410-000

$11.69

8

TIRE ASSY., RR. (140/90-16) (71H) (DUNLOP) (NOT AVAILABLE) This part replaces 42710-MB4-672.

42710-MB4-773

Unavailable

8

TIRE ASSY., RR. (140/90-16) (71H) (DUNLOP)

42710-MB4-773

Unavailable

8

TIRE ASSY., RR. (140/90-16) (71H) (DUNLOP) (NOT AVAILABLE) This part replaces 42710-MB9-671.

42710-MB4-773

Unavailable

8

TIRE ASSY., RR. (140/90-16) (71H) (DUNLOP) (NOT AVAILABLE) This part replaces 42710-MB9-672.

42710-MB4-773

Unavailable

8

TIRE ASSY., RR. (140/90-16) (71H) (DUNLOP) (NOT AVAILABLE) This part replaces 42710-MB9-673.

42710-MB4-773

Unavailable

8

TIRE ASSY., RR. (140/90-16) (71H) (DUNLOP) (NOT AVAILABLE) This part replaces 42710-ME1-672.

42710-MB4-773

Unavailable

9

VALVE, RIM (BS)

42753-425-003

$11.00

9

VALVE, RIM (BS) This part replaces 42753-425-004.

42753-425-003

$11.00

11

DISK, RR. BRAKE

43120-MB9-000

Unavailable

12

BOLT, STUD (8X45)

90125-329-010

$3.26

13

NUT, AXLE (18MM)

90305-393-000

Unavailable

14

NUT, HEX. (8MM)

90309-357-000

$3.40

15

DUST SEAL (30X45X9.5)

91253-286-013

$6.81

15

DUST SEAL (30X45X9.5) This part replaces 91253-356-005.

91253-286-013

$6.81

16

O-RING (62.4X3.1) This part replaces 91304-MN5-003.

91316-PE7-730

$5.69

16

O-RING (62.4X3.1) This part replaces 91316-PT6-003.

91316-PE7-730

$5.69

16

O-RING (63X3.0)

91359-371-003

$5.69

17

PIN, COTTER (4.0X30)

94201-40300

$1.49

18

BEARING, RADIAL BALL (6204U)

96140-62040-10

$21.84

19

BEARING, RADIAL BALL (6304U)

96140-63040-10

$24.03
