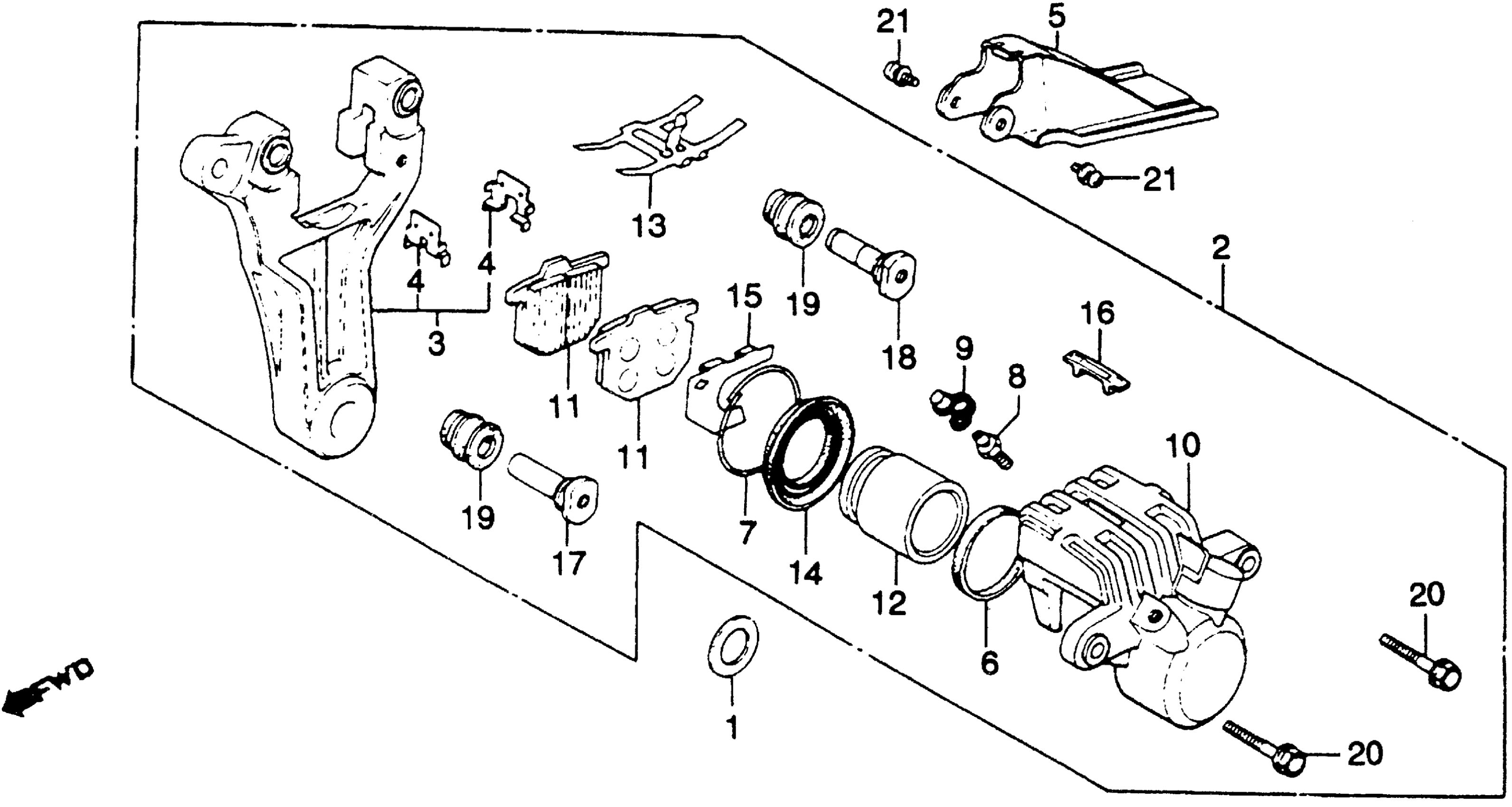

Honda GL1100A (80) GOLD WING, JPN, VIN# SC02-2000040 TO SC02-2022041 REAR BRAKE CALIPER 80-81 Diagram

SPACER, RR. BRAKE SIDE

42312-463-000

$13.39

CALIPER ASSY., RR. (NOT AVAILABLE)

43100-463-006

Unavailable

BRACKET, RR. CALIPER (NOT AVAILABLE)

43110-463-006

Unavailable

RETAINER, RR. BRACKET (NISSHIN)

43112-410-006

Unavailable

COVER, RR. DISK

43140-463-000

Unavailable

SEAL, PISTON

43209-431-671

$12.28

CLIP, DUST COVER

43218-371-006

$13.86

SCREW, BLEEDER

43352-568-003

$7.95

CAP, BLEEDER SCREW

43353-548-003

$4.93

CALIPER, L. (NOT AVAILABLE)

45101-415-026

Unavailable

PAD (JB) (NISSHIN) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 45105-415-006.

45105-415-772

Unavailable

PAD (JB) (NISSHIN) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 45105-415-770.

45105-415-772

Unavailable

PAD (JB) (NISSHIN) (NOT AVAILABLE)

45105-415-772

Unavailable

PISTON

45107-415-006

Unavailable

SPRING, PAD

45108-415-006

Unavailable

BOOT, PISTON

45109-371-006

$26.38

SHIM A, PAD

45114-371-006

Unavailable

CAP, INDICATOR (NOT AVAILABLE)

45119-463-000

Unavailable

PIN A (NISSHIN)

45131-410-006

Unavailable

PIN B (NISSHIN)

45132-410-006

Unavailable

COVER, DUST

45133-371-006

$7.68

BOLT (8X25)

90116-410-006

$6.07

SCREW-WASHER (5X12)

93892-05012-07

$1.49
