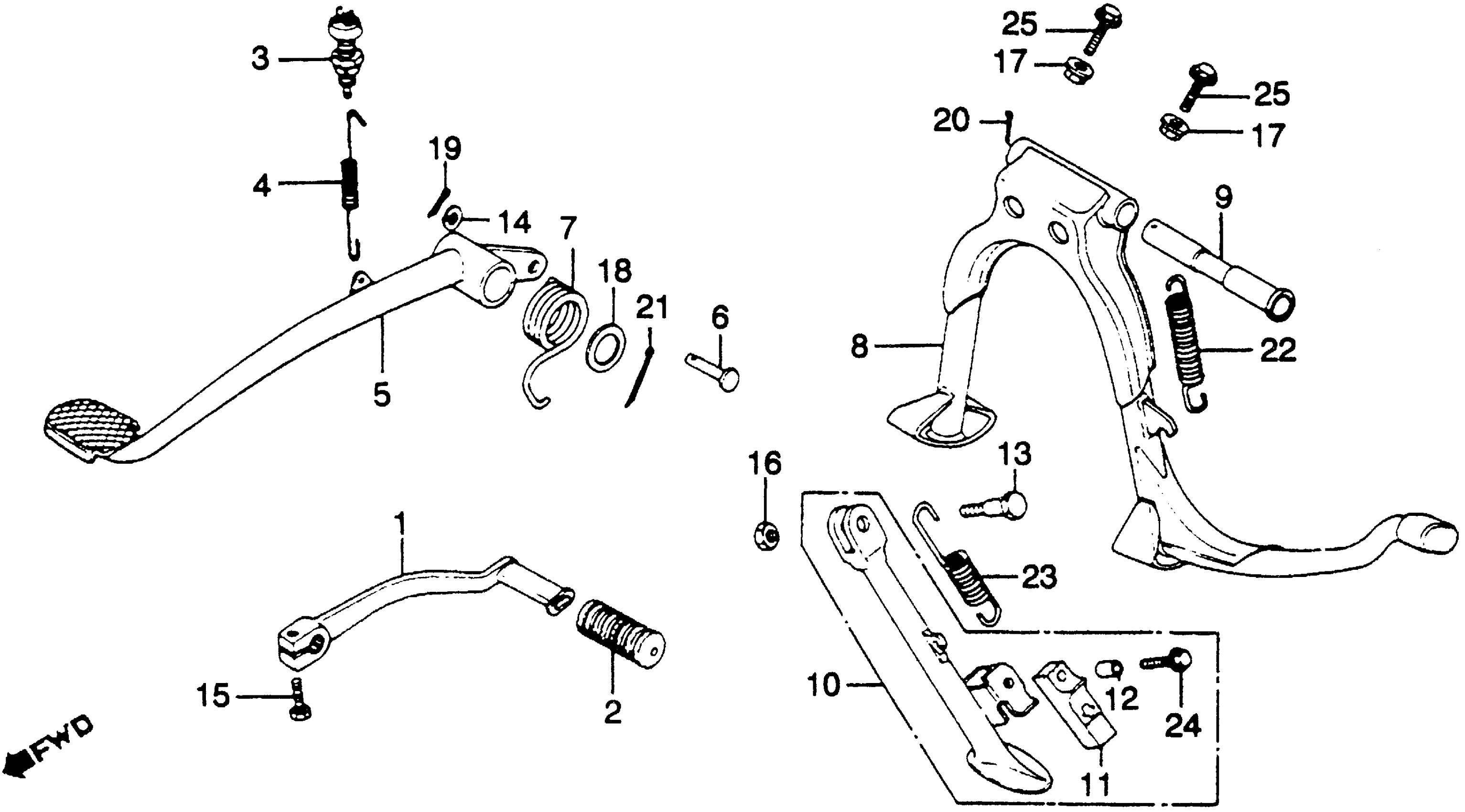

Honda GL1100A (80) GOLD WING, JPN, VIN# SC02-2000040 TO SC02-2022041 PEDAL + STAND Diagram

#

Description
Price

1

PEDAL, GEARSHIFT (NOT AVAILABLE) This part replaces 24701-463-000.

24701-MB9-780

Unavailable

2

RUBBER, GEARSHIFT PEDAL

24781-419-000

$5.62

3

SWITCH ASSY., RR. STOP (TOYO)

35350-166-003

Unavailable

3

SWITCH ASSY., RR. STOP (DAIICHI) This part replaces 35350-166-005.

35350-166-015

Unavailable

3

SWITCH ASSY., RR. STOP (DAIICHI)

35350-166-015

Unavailable

4

SPRING, STOP SWITCH

35357-083-000

Unavailable

5

PEDAL, RR. BRAKE (NOT AVAILABLE) This part replaces 46500-463-000.

46500-MB9-780

Unavailable

6

PIN, BRAKE ROD

46503-371-000

Unavailable

7

SPRING, BRAKE PEDAL (NOT AVAILABLE)

46506-463-000

Unavailable

8

STAND, MAIN (NOT AVAILABLE)

50500-463-000

Unavailable

9

PIPE, MAIN STAND PIVOT

50526-300-000

Unavailable

10

BAR ASSY., SIDE STAND (NOT AVAILABLE)

50540-463-000

Unavailable

11

RUBBER, STAND

50548-356-700

$10.50

12

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.70

13

SCREW, SIDE STAND PIVOT (NOT AVAILABLE)

90108-371-610

Unavailable

14

WASHER (7X12)

90501-310-000

$1.74

15

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

15

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

16

NUT, HEX. (10MM)

94002-10000-0S

$4.06

17

NUT, FLANGE (8MM)

94050-08000

$1.49

18

WASHER, FLAT (20MM)

94102-20000

$1.49

19

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

19

PIN, COTTER (1.6X25)

94201-16250

$1.49

20

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

20

PIN, COTTER (2.5MM)

94201-25300

$1.49

21

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

21

PIN, COTTER (3.0X45) This part replaces 94201-30280.

94201-30450

$1.49

21

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

21

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

21

PIN, COTTER (3.0X45)

94201-30450

$1.49

22

SPRING G, MAIN STAND

95014-71702

$4.08

23

SPRING D, SIDE STAND This part replaces 95014-72401.

95014-72402

$2.92

23

SPRING D, SIDE STAND

95014-72402

$2.92

24

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.80

24

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

25

BOLT, FLANGE (8X40) This part replaces 95700-08040-08.

95701-08040-08

$2.28

25

BOLT, FLANGE (8X40)

95701-08040-08

$2.28
