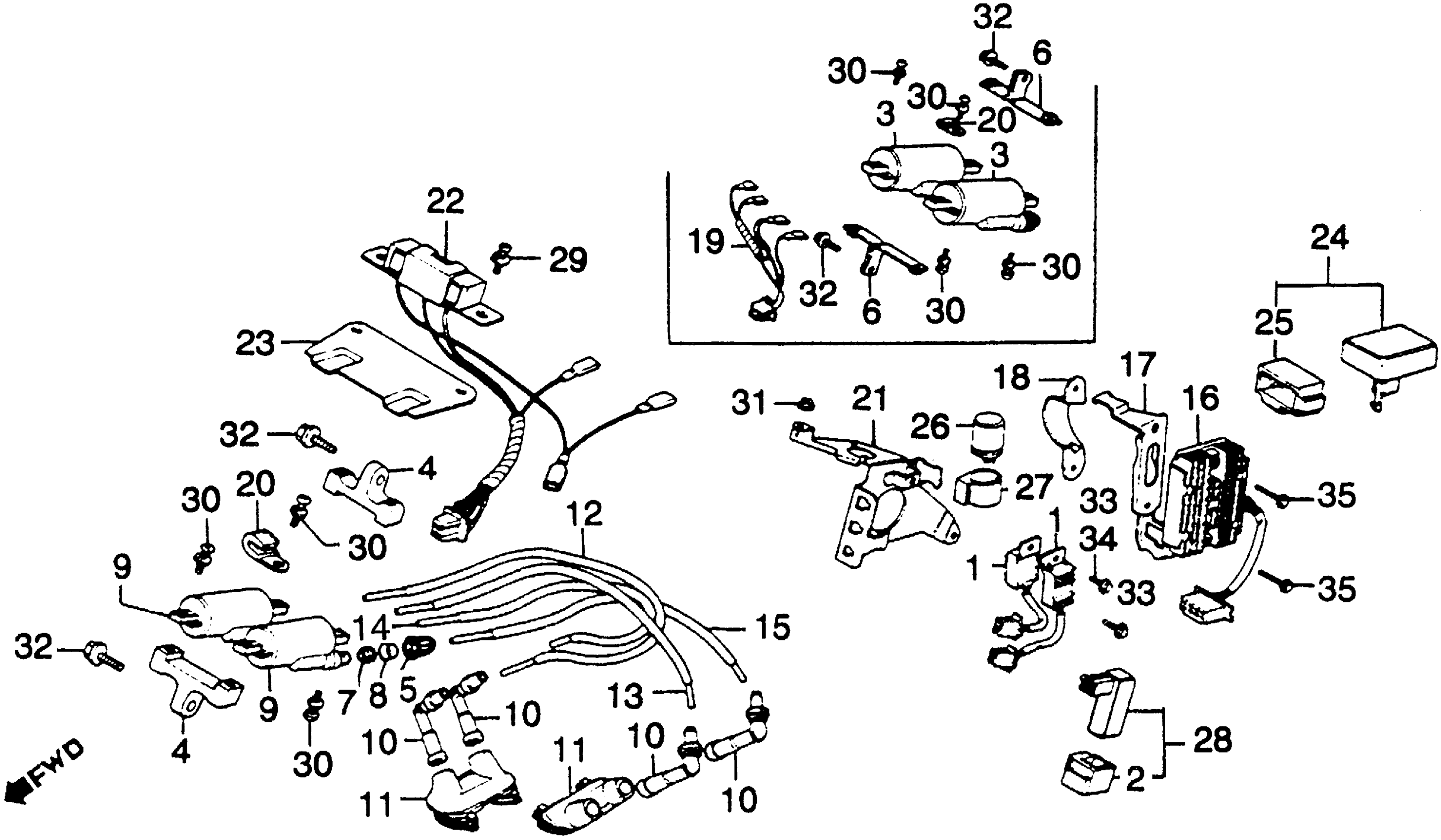

Honda GL1100A (80) GOLD WING, JPN, VIN# SC02-2000040 TO SC02-2022041 IGNITION COIL + RECTIFIER Diagram

#

Description
Price

1

MODULE, IGNITION CONTROL (CDI) (OKI) (NOT AVAILABLE)

30400-MA4-601

Unavailable

1

MODULE, IGNITION CONTROL (CDI) (OKI) (NOT AVAILABLE) This part replaces 30400-425-164.

30400-MA4-601

Unavailable

2

CUSHION, IGNITION CONTROL MODULE (CDI) This part replaces 30401-958-000.

30401-GB4-770

$5.72

3

COIL ASSY., IGNITION This part replaces 30500-422-003.

30500-422-013

$194.84

3

COIL ASSY., IGNITION

30500-422-013

$194.84

6

STAY A, IGNITION COIL (NOT AVAILABLE)

30501-463-000

Unavailable

10

CAP ASSY., NOISE SUPPRESSOR

30700-MC8-000

Unavailable

10

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-371-153.

30700-MC8-000

Unavailable

10

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-371-163.

30700-MC8-000

Unavailable

10

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-390-163.

30700-MC8-000

Unavailable

11

SEAL, SUPPRESSOR

30705-463-000

Unavailable

12

WIRE, IGNITION (1-1)

30750-MG9-P00

$24.27

12

WIRE SET, IGNITION (1-1) This part replaces 30751-463-000.

30750-MG9-P00

$24.27

12

WIRE SET, IGNITION (1-1) This part replaces 30751-463-741.

30750-MG9-P00

$24.27

13

WIRE, IGNITION (2-2)

30750-MG9-P00

$24.27

13

WIRE SET, IGNITION (1-1) This part replaces 30752-463-000.

30750-MG9-P00

$24.27

13

WIRE SET, IGNITION (1-1) This part replaces 30752-463-740.

30750-MG9-P00

$24.27

13

WIRE SET, IGNITION (1-1) This part replaces 30752-463-741.

30750-MG9-P00

$24.27

14

WIRE, IGNITION (3-3)

30750-MG9-P00

$24.27

14

WIRE SET, IGNITION (1-1) This part replaces 30753-463-000.

30750-MG9-P00

$24.27

14

WIRE SET, IGNITION (1-1) This part replaces 30753-463-741.

30750-MG9-P00

$24.27

15

WIRE, IGNITION (4-4)

30750-MG9-P00

$24.27

15

WIRE SET, IGNITION (1-1) This part replaces 30754-463-000.

30750-MG9-P00

$24.27

15

WIRE SET, IGNITION (1-1) This part replaces 30754-463-741.

30750-MG9-P00

$24.27

16

RECTIFIER ASSY., REGULATE

31600-MG9-010

Unavailable

16

RECTIFIER ASSY., REGULATE This part replaces 31600-463-008.

31600-MG9-010

Unavailable

17

BAND A, REGULATOR RECTIFIER (NOT AVAILABLE)

31605-463-000

Unavailable

18

BAND B, REGULATOR RECTIFIER (NOT AVAILABLE)

31606-463-000

Unavailable

19

SUB-WIRE HARNESS A (NOT AVAILABLE) This part replaces 32101-425-000.

32103-438-660

Unavailable

19

SUB-WIRE HARNESS A (NOT AVAILABLE) This part replaces 32103-438-000.

32103-438-660

Unavailable

19

SUB-WIRE HARNESS A (NOT AVAILABLE)

32103-438-660

Unavailable

20

CLAMP, CABLE

32111-323-000

$3.98

21

PLATE, ELECTRIC (NOT AVAILABLE)

32405-463-000

Unavailable

26

RELAY, TURN SIGNAL This part replaces 38300-415-P00.

38300-MG2-008

Unavailable

26

RELAY, TURN SIGNAL This part replaces 38300-415-004.

38300-MG2-008

Unavailable

26

RELAY, TURN SIGNAL This part replaces 38300-415-671.

38300-MG2-008

Unavailable

26

RELAY, TURN SIGNAL This part replaces 38301-415-004.

38300-MG2-008

Unavailable

26

RELAY, TURN SIGNAL This part replaces 38301-415-671.

38300-MG2-008

Unavailable

27

SUSPENSION, TURN SIGNAL RELAY

38306-292-000

$3.76

28

CONTROL UNIT (NOT AVAILABLE)

38900-463-008

Unavailable

30

SCREW-WASHER (6X20)

93892-06020-08

Unavailable

31

NUT, FLANGE (6MM)

94050-06000

$1.49

32

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

32

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

32

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

33

BOLT, FLANGE (6X16) This part replaces 95700-06016-08.

95701-06016-08

$1.49

33

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

33

BOLT, FLANGE (6X16) This part replaces 95900-06016-08.

95701-06016-08

$1.49

35

BOLT, FLANGE (6X40) This part replaces 95700-06040-08.

95701-06040-08

$1.80

35

BOLT, FLANGE (6X40)

95701-06040-08

$1.80
