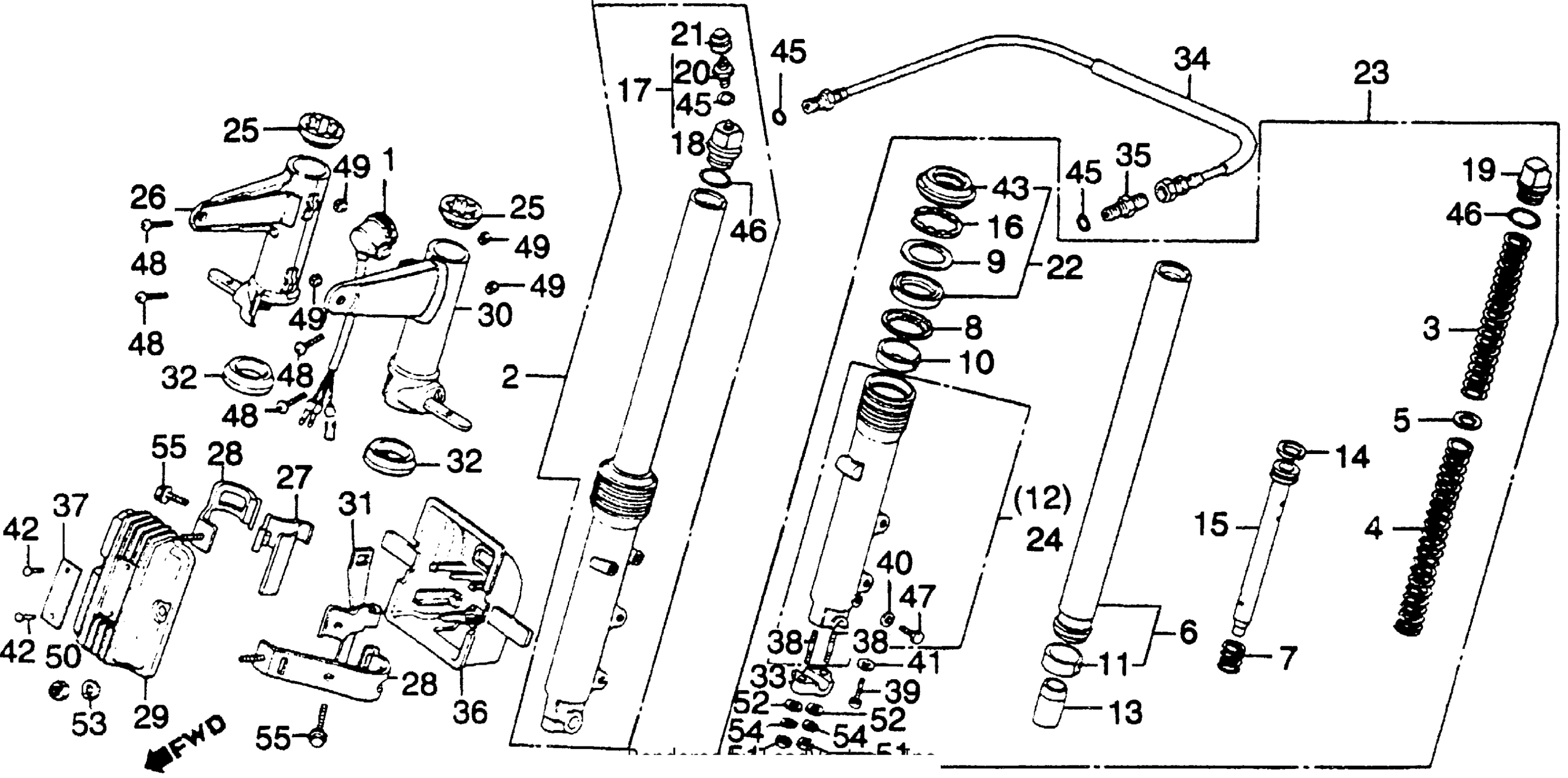

Honda GL1100A (80) GOLD WING, JPN, VIN# SC02-2000040 TO SC02-2022041 FRONT FORK Diagram

#

Description
Price

1

BUZZER ASSY., TURN SIGNAL (NOT AVAILABLE)

38400-431-000

Unavailable

2

FORK ASSY., R. FR. (NOT AVAILABLE) This part replaces 51400-463-003.

51400-463-013

Unavailable

2

FORK ASSY., R. FR. (NOT AVAILABLE)

51400-463-013

Unavailable

3

SPRING A, FR. FORK

51401-463-003

Unavailable

4

SPRING B, FR. FORK

51402-463-003

Unavailable

5

PLATE, SPRING JOINT

51403-463-003

Unavailable

6

PIPE, FR. FORK

51410-463-003

Unavailable

7

SPRING, FR. FORK REBOUND (NOT AVAILABLE)

51411-463-003

Unavailable

8

RING, BACK-UP

51412-463-003

$7.75

8

RING, BACK-UP This part replaces 51412-463-305.

51412-463-003

$7.75

9

PLATE, BACK-UP

51413-463-003

Unavailable

10

BUSH, FORK PIPE

51414-463-003

$15.77

11

SLEEVE, FORK PIPE

51415-463-003

$18.74

12

CASE, R. (LOWER) (NOT AVAILABLE)

51420-463-003

Unavailable

13

PIECE, OIL LOCK (NOT AVAILABLE)

51432-463-003

Unavailable

14

RING, PISTON

51437-KAZ-003

$10.00

14

RING, PISTON This part replaces 51437-463-003.

51437-KAZ-003

$10.00

15

PIPE (LOWER) (NOT AVAILABLE)

51440-463-003

Unavailable

16

CIRCLIP (INNER)

51447-463-003

$4.53

17

BOLT ASSY., FR. FORK (SHOWA) (NOT AVAILABLE) This part replaces 51454-463-003.

51454-463-013

Unavailable

17

BOLT ASSY., FR. FORK (SHOWA) (NOT AVAILABLE)

51454-463-013

Unavailable

19

BOLT, L. FR. FORK (NOT AVAILABLE)

51456-463-003

Unavailable

20

VALVE, AIR (SHOWA) This part replaces 51456-469-003.

51456-469-013

$33.69

20

VALVE, AIR (SHOWA)

51456-469-013

$33.69

21

CAP ASSY., AIR VALVE

51457-469-000

Unavailable

22

SEAL SET, FR. FORK

51490-MB9-782

$38.57

22

SEAL SET, FR. FORK This part replaces 51490-463-305.

51490-MB9-782

$38.57

23

FORK ASSY., L. FR. (NOT AVAILABLE)

51500-463-003

Unavailable

24

CASE, L. (LOWER) (NOT AVAILABLE)

51520-463-003

Unavailable

25

RUBBER, FORK COVER (UPPER) (NOT AVAILABLE)

51601-463-000

Unavailable

26

COVER, R. FR. FORK This part replaces 51602-463-000.

51602-463-405

Unavailable

26

COVER, R. FR. FORK

51602-463-405

Unavailable

30

COVER, L. FR. FORK This part replaces 51606-463-000.

51606-463-405

Unavailable

30

COVER, L. FR. FORK

51606-463-405

Unavailable

32

RUBBER, FORK COVER (LOWER) (NOT AVAILABLE)

51622-463-000

Unavailable

33

HOLDER, AXLE (NOT AVAILABLE)

51634-463-003

Unavailable

34

HOSE, FORK JOINT (NOT AVAILABLE)

53137-463-003

Unavailable

35

CONNECTOR

53139-463-000

Unavailable

38

BOLT, STUD (10X52) (NOT AVAILABLE)

90102-463-003

Unavailable

39

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$5.13

39

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

40

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

41

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

43

DUST SEAL

91254-463-003

$22.51

45

O-RING (5.8X1.9) This part replaces 91301-469-003.

91305-323-000

$2.92

45

O-RING (5.8X1.9)

91305-323-000

$2.92

45

O-RING (5.6X1.9) (ARAI)

91318-ME5-003

$3.67

46

O-RING (29X3.5)

91356-463-003

$4.45

47

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

47

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

51

NUT, HEX. (10MM)

94001-10000-0S

$1.49

52

WASHER, PLAIN (10MM)

94102-10000

$1.49

54

WASHER, SPRING (8MM)

94111-10000

$1.49
