- GL1100A (80) GOLD WING, JPN, VIN# SC02-2000040 TO SC02-2022041
FRONT BRAKE CALIPER 80-81

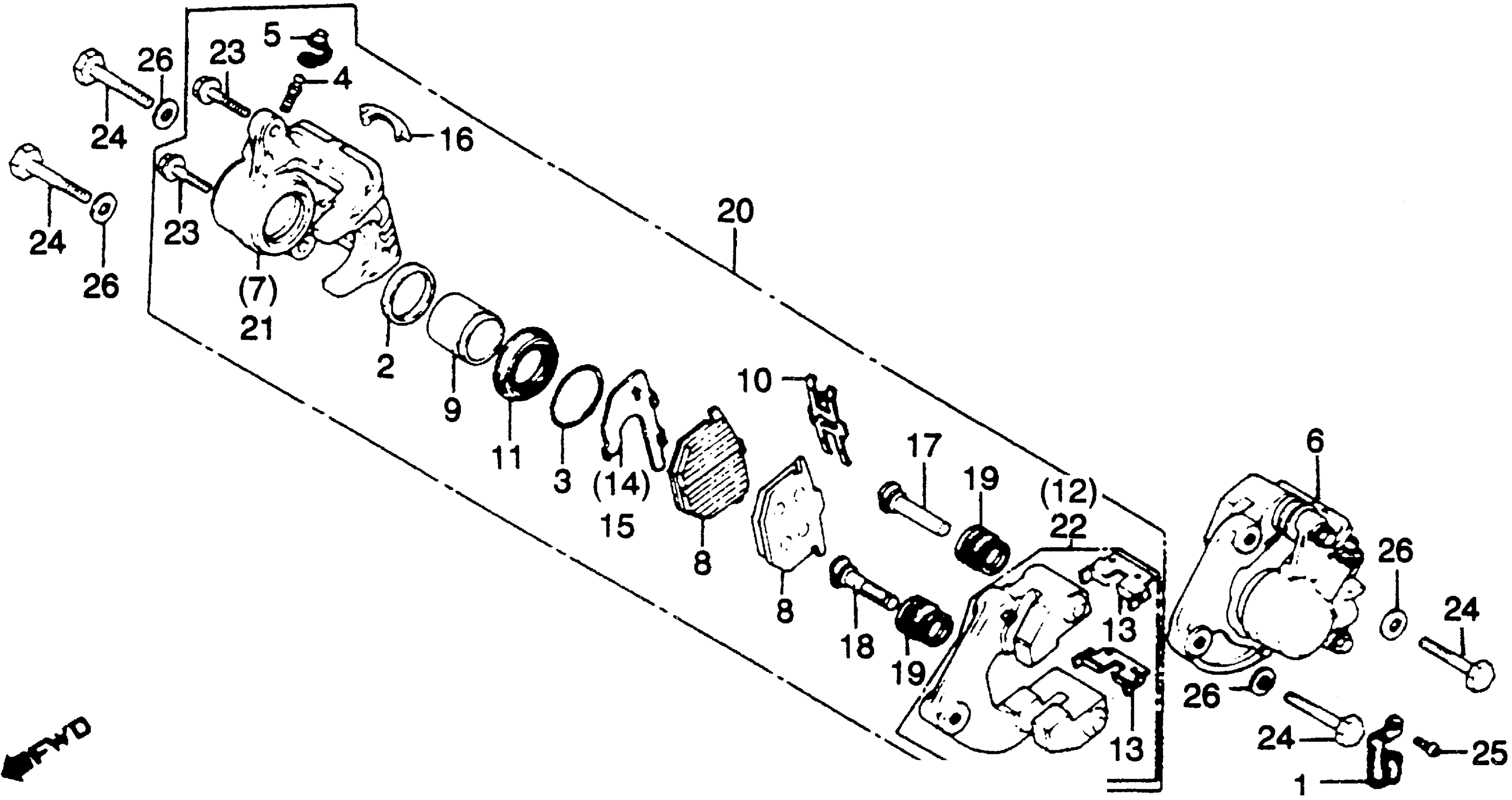

Honda GL1100A (80) GOLD WING, JPN, VIN# SC02-2000040 TO SC02-2022041 FRONT BRAKE CALIPER 80-81 Diagram
#
Description
Price
1
CLIP, CABLE
32906-049-000
Unavailable
6
CALIPER ASSY., L. FR. (JB) (NISSHIN) (NOT AVAILABLE)
45100-469-006
Unavailable
6
CALIPER ASSY., L. FR. (ASK) (NISSHIN) (NOT AVAILABLE)
45100-469-007
Unavailable
7
CALIPER, L. (NOT AVAILABLE)
45101-415-026
Unavailable
8
PAD COMP This part replaces 45105-410-305.
45105-410-005
Unavailable
8
PAD COMP This part replaces 45105-438-004.
45105-410-005
Unavailable
8
PAD COMP This part replaces 45105-438-007.
45105-410-005
Unavailable
9
PISTON
45107-415-006
Unavailable
10
SPRING, PAD
45108-415-006
Unavailable
12
BRACKET, L. FR. (NOT AVAILABLE) This part replaces 45110-422-006.
45110-422-016
Unavailable
12
BRACKET, L. FR. (NOT AVAILABLE)
45110-422-016
Unavailable
13
RETAINER, BRACKET
45112-410-006
Unavailable
14
SHIM A, PAD
45114-371-006
Unavailable
15
SHIM B, PAD
45116-371-006
Unavailable
16
CAP, INDICATOR
45119-371-000
Unavailable
17
PIN A (NISSHIN)
45131-410-006
Unavailable
18
PIN B (NISSHIN)
45132-410-006
Unavailable
20
CALIPER ASSY., R. FR. (JB) (NISSHIN) (NOT AVAILABLE)
45200-469-006
Unavailable
20
CALIPER ASSY., R. FR. (JB) (NISSHIN) (NOT AVAILABLE) CALIPER ASSY., R. FR. (ASK) This part replaces 45200-469-007.
45200-469-006
Unavailable
21
CALIPER, R. (NISSHIN) (NOT AVAILABLE)
45201-422-026
Unavailable
22
BRACKET, R. FR. (NOT AVAILABLE) This part replaces 45210-422-006.
45210-422-016
Unavailable
22
BRACKET, R. FR. (NOT AVAILABLE)
45210-422-016
Unavailable
24
BOLT, FR. CALIPER
90123-371-000
Unavailable
