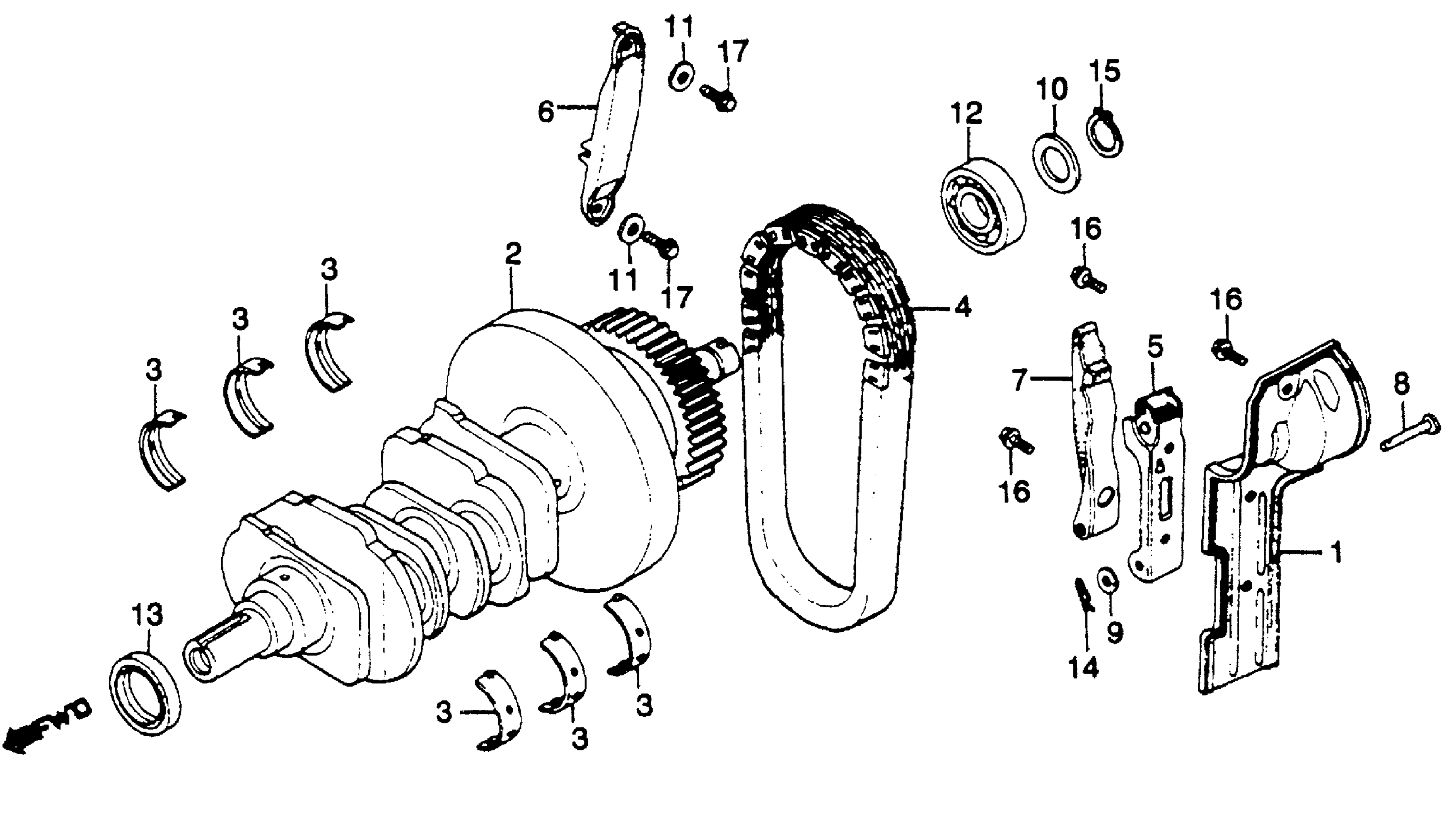

Honda GL1100A (80) GOLD WING, JPN, VIN# SC02-2000040 TO SC02-2022041 CRANKSHAFT Diagram

#

Description
Price

1

PLATE, BREATHER (NOT AVAILABLE)

11130-463-000

Unavailable

2

CRANKSHAFT (NOT AVAILABLE)

13310-463-000

Unavailable

3

BEARING A, MAIN (BLUE)

13321-371-003

Unavailable

3

BEARING B, MAIN (BLACK)

13322-371-003

Unavailable

3

BEARING C, MAIN (BROWN)

13323-371-003

Unavailable

3

BEARING D, MAIN (GREEN)

13324-371-003

Unavailable

3

BEARING E, MAIN (YELLOW)

13325-371-003

$19.57

4

CHAIN, PRIMARY DRIVE

23131-463-003

Unavailable

5

BRACKET, PRIMARY CHAIN TENSIONER (NOT AVAILABLE)

23132-MG9-000

Unavailable

5

BRACKET, PRIMARY CHAIN TENSIONER (NOT AVAILABLE) This part replaces 23132-463-000.

23132-MG9-000

Unavailable

6

GUIDE, PRIMARY CHAIN (NOT AVAILABLE) This part replaces 23136-463-000.

23136-463-010

Unavailable

6

GUIDE, PRIMARY CHAIN

23136-463-010

Unavailable

7

TENSIONER, PRIMARY CHAIN (NOT AVAILABLE) | Use up to Engine SN 2014576 This part replaces 23137-463-003.

23137-463-013

Unavailable

7

TENSIONER, PRIMARY CHAIN (NOT AVAILABLE)

23137-463-013

Unavailable

8

PIN (8X45) (NOT AVAILABLE)

23138-463-000

Unavailable

9

WASHER (8MM)

90405-463-000

$3.45

10

WASHER, THRUST (20MM)

90452-413-000

$2.53

11

WASHER (6X17)

90474-704-000

$1.49

12

BEARING, RADIAL BALL (20X52X15) (TOYO) This part replaces 91002-371-004.

91003-MG8-003

$40.08

12

BEARING, RADIAL BALL (20X52X15) (TOYO)

91003-MG8-003

$40.08

13

OIL SEAL (35X55X8)

91201-371-005

Unavailable

14

PIN, LOCK (8MM)

94251-08000

$1.49

15

CIRCLIP (OUTER) (20MM)

94510-20000

$1.49

16

BOLT, FLANGE (6X14) This part replaces 95700-06014-00.

95701-06014-00

$1.49

16

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

17

BOLT, FLANGE (6X18) BOLT, HEX. (6X18) This part replaces 95700-06018-00.

95701-06018-00

$1.62

17

BOLT, FLANGE (6X18)

95701-06018-00

$1.62
