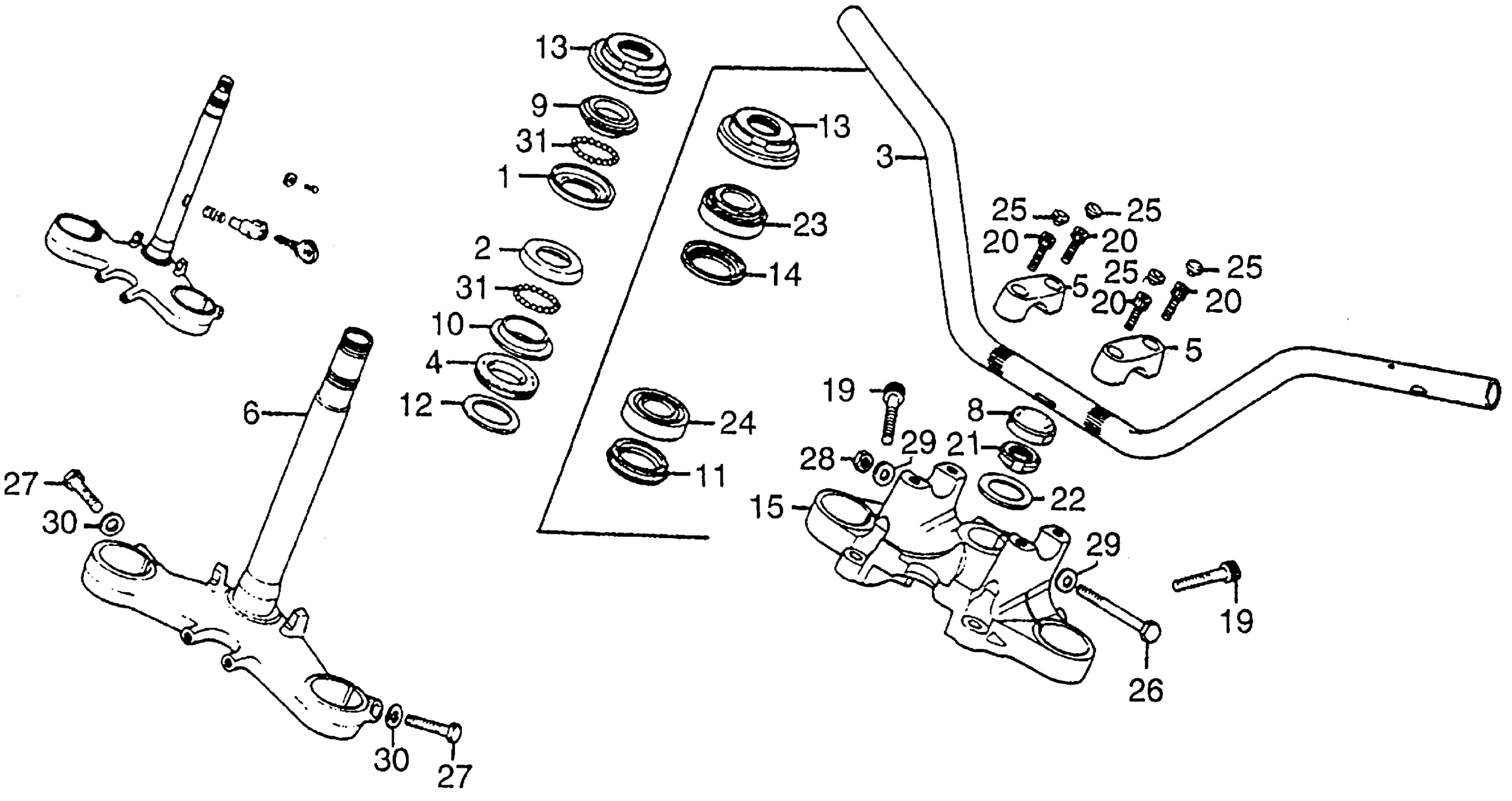

Honda GL1000LTDA (76) GOLD WING LIMITED EDITION, JPN, VIN# GL1-2035001 TO GL1-2037000 HANDLEBAR + TOP BRIDGE + STEM Diagram

#

Description
Price

1

RACE, STEERING TOP BALL This part replaces 50301-268-000.

50301-268-010

$22.12

1

RACE, STEERING BALL (UPPER)

50301-268-010

$22.12

1

RACE, STEERING TOP BALL This part replaces 50301-268-305.

50301-268-010

$22.12

2

RACE, STEERING BALL (LOWER) This part replaces 50302-268-000.

50302-268-010

$21.73

2

RACE, STEERING BALL (LOWER)

50302-268-010

$21.73

2

RACE, STEERING BALL (LOWER) This part replaces 50302-268-305.

50302-268-010

$21.73

3

HANDLEBAR (NOT AVAILABLE) This part replaces 53100-371-980.

53100-371-660

Unavailable

3

HANDLEBAR (NOT AVAILABLE)

53100-371-660

Unavailable

4

DUST SEAL This part replaces 53124-250-000.

53214-K0T-J00

$3.03

4

DUST SEAL This part replaces 53214-250-000.

53214-K0T-J00

$3.03

5

HOLDER, HANDLE (UPPER)

53131-371-000

$32.20

6

STEM, STEERING *NH1* (BLACK) (NOT AVAILABLE)

53200-371-000ZA

Unavailable

6

STEM, STEERING *NH1* (BLACK) (NOT AVAILABLE) This part replaces 53200-371-980.

53200-371-000ZA

Unavailable

8

CAP, STEERING STEM (NOT AVAILABLE)

53209-371-000

Unavailable

9

RACE, STEERING TOP CONE This part replaces 53211-268-000.

53211-268-010

$26.89

9

RACE, STEERING CONE (UPPER)

53211-268-010

$26.89

9

RACE, STEERING TOP CONE This part replaces 53211-268-305.

53211-268-010

$26.89

10

RACE, STEERING CONE (LOWER) This part replaces 53212-250-000.

53212-250-010

$21.57

10

RACE, STEERING CONE (LOWER)

53212-250-010

$21.57

10

RACE, STEERING CONE (LOWER) This part replaces 53212-250-305.

53212-250-010

$21.57

12

WASHER, STEERING HEAD DUST SEAL

53215-250-000

$2.34

13

THREAD, STEERING HEAD (UPPER)

53220-286-000

Unavailable

13

THREAD, STEERING HEAD (UPPER) This part replaces 53220-371-980.

53220-286-000

Unavailable

15

BRIDGE, FORK TOP *A01* (MAT BLACK) (NOT AVAILABLE)

53230-371-000ZA

Unavailable

19

BOLT, HEX. SOCKET (10X35) (NOT AVAILABLE) This part replaces 90180-371-000.

90180-371-980

Unavailable

19

BOLT, HEX. SOCKET (10X35) (NOT AVAILABLE)

90180-371-980

Unavailable

20

BOLT, HEX. SOCKET (8X32)

90185-371-000

$6.28

21

NUT, STEERING STEM (NOT AVAILABLE)

90304-371-000

Unavailable

22

WASHER, STEERING STEM

90503-283-000

$4.37

22

WASHER, STEERING STEM This part replaces 90503-371-980.

90503-283-000

$4.37

25

CAP, SOCKET BOLT

91456-371-770

$3.47

26

BOLT, HEX. (8X65) This part replaces 92000-08065-0B.

92101-08065-0B

Unavailable

26

BOLT, HEX. (8X65) This part replaces 91515-371-980.

92101-08065-0B

Unavailable

27

BOLT, HEX. (10X40) This part replaces 92000-10040-0B.

92101-10040-0B

Unavailable

27

BOLT, HEX. (10X40)

92101-10040-0B

Unavailable

27

BOLT, HEX. (10X40) This part replaces 91506-371-980.

92101-10040-0B

Unavailable

28

NUT, HEX. (8MM) This part replaces 91531-371-980.

94001-08000-0S

$1.49

28

NUT, HEX. (8MM)

94001-08000-0S

$1.49

28

NUT, HEX. (8MM) This part replaces 94001-08080-0S.

94001-08000-0S

$1.49

28

NUT, HEX. (8MM) This part replaces 94001-08080-05.

94001-08000-0S

$1.49

28

NUT, HEX. (8MM) This part replaces 94001-08080-15.

94001-08000-0S

$1.49

28

NUT, HEX. (8MM) This part replaces 94001-08200-0S.

94001-08000-0S

$1.49

29

WASHER, PLAIN (8MM)

94101-08200

$1.49

29

WASHER, PLAIN (8MM) This part replaces 90082-371-980.

94101-08200

$1.49

30

WASHER, PLAIN (10MM) This part replaces 90518-001-000.

94101-10000

$1.49

30

WASHER, PLAIN (10MM) This part replaces 91556-371-980.

94101-10000

$1.49

30

WASHER, PLAIN (10MM)

94101-10000

$1.49

31

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
