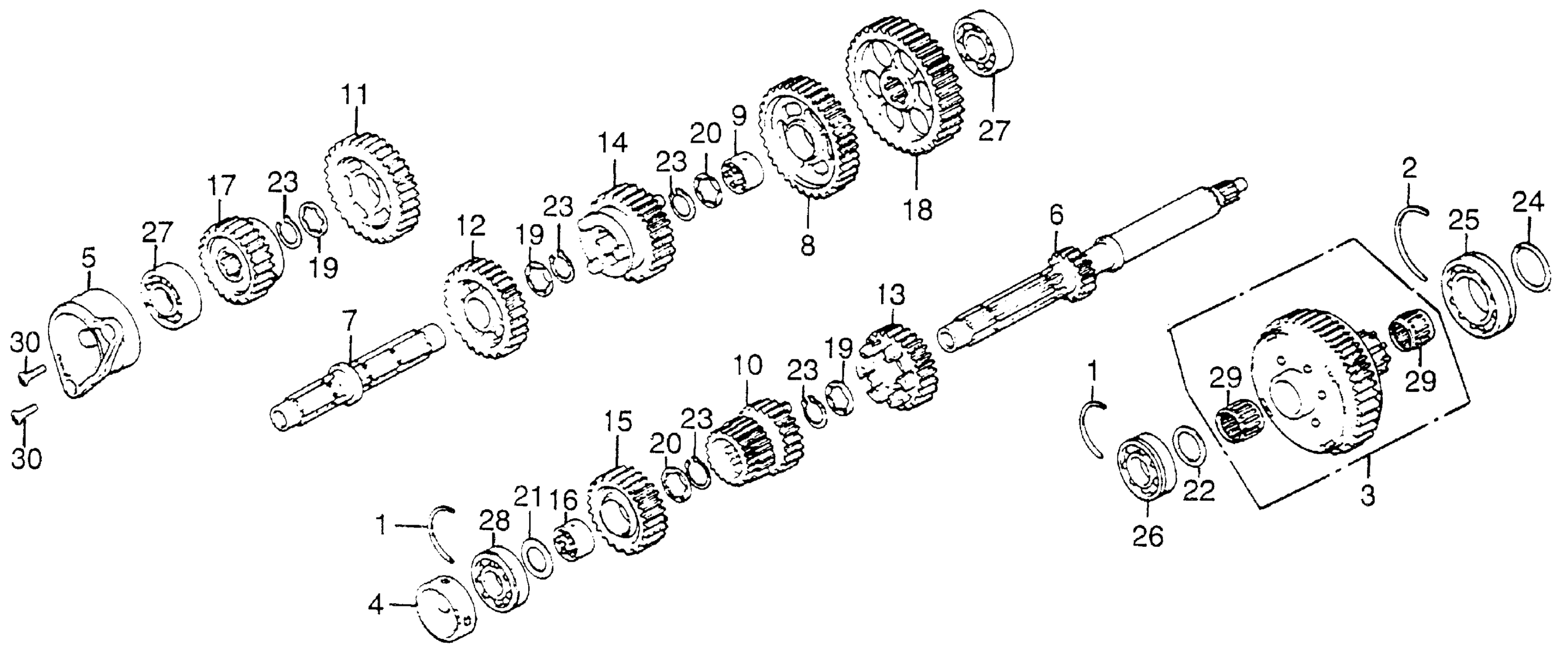

Honda GL1000A MOTORCYCLE, JPN, VIN# GL1-1000001 TO GL1-1020183 TRANSMISSION Diagram

#

Description
Price

1

RING A, BALL BEARING SETTING (NOT AVAILABLE)

13495-300-000

Unavailable

2

RING B, BALL BEARING SETTING (NOT AVAILABLE)

13496-300-000

Unavailable

3

SPROCKET, PRIMARY DRIVEN (NOT AVAILABLE)

23110-371-000

Unavailable

4

PASSAGE, MAINSHAFT OIL (NOT AVAILABLE)

23141-371-000

Unavailable

5

HOLDER C, BEARING (NOT AVAILABLE)

23151-371-000

Unavailable

6

MAINSHAFT, TRANSMISSION (18T) (NOT AVAILABLE)

23210-371-000

Unavailable

7

COUNTERSHAFT, TRANSMISSION

23220-371-000

Unavailable

8

GEAR, COUNTERSHAFT LOW (45T) (NOT AVAILABLE)

23421-300-050

Unavailable

9

BUSH (29X14) (NOT AVAILABLE)

23425-300-010

Unavailable

10

GEAR, MAINSHAFT SECOND & THIRD (24T & 27T)

23431-371-000

Unavailable

11

GEAR, COUNTERSHAFT SECOND (41T)

23440-371-000

Unavailable

12

GEAR, COUNTERSHAFT THIRD (36T)

23450-371-000

Unavailable

13

GEAR, MAINSHAFT FOURTH (31T)

23460-371-000

Unavailable

14

GEAR, COUNTERSHAFT FOURTH (34T) (NOT AVAILABLE)

23471-371-000

Unavailable

15

GEAR, MAINSHAFT TOP (33T) (NOT AVAILABLE)

23481-371-000

Unavailable

16

BUSH, SPLINE (28MM) (NOT AVAILABLE) This part replaces 23485-300-020.

23485-392-000

Unavailable

17

GEAR, COUNTERSHAFT TOP (31T)

23491-371-000

Unavailable

18

GEAR, FINAL DRIVE (40T) (NOT AVAILABLE)

23501-371-000

Unavailable

19

WASHER, THRUST (25MM)

90451-MB2-000

Unavailable

19

WASHER, THRUST (25MM) This part replaces 90451-371-000.

90451-MB2-000

Unavailable

20

WASHER, THRUST (25X34)

90452-371-000

$4.82

21

WASHER, THRUST (20MM)

90458-292-000

$3.54

22

WASHER A, THRUST (25MM) (NOT AVAILABLE)

90458-506-810

Unavailable

23

CIRCLIP (OUTER) (25MM)

90601-300-000

$3.83

24

CIRCLIP (OUTER) (40MM) (NOT AVAILABLE)

90602-371-000

Unavailable

25

BEARING, RADIAL BALL (6008U) (NOT AVAILABLE) This part replaces 91001-371-008.

91001-463-008

Unavailable

26

BEARING This part replaces 91002-300-008.

91003-612-004

Unavailable

27

BEARING, RADIAL BALL (20X52X15) (TOYO) This part replaces 91002-371-004.

91003-MG8-003

$40.08

27

BEARING, RADIAL BALL (20X52X15) (TOYO)

91003-MG8-003

$40.08

28

BEARING, BALL (6304CS) (TOYO)

91004-371-008

Unavailable

29

BEARING, NEEDLE (25X32X20)

91010-300-008

Unavailable

30

SCREW, FLAT (6X20) This part replaces 93600-06020.

93600-06020-0A

$1.49

30

SCREW, FLAT (6X20)

93600-06020-0A

$1.49
