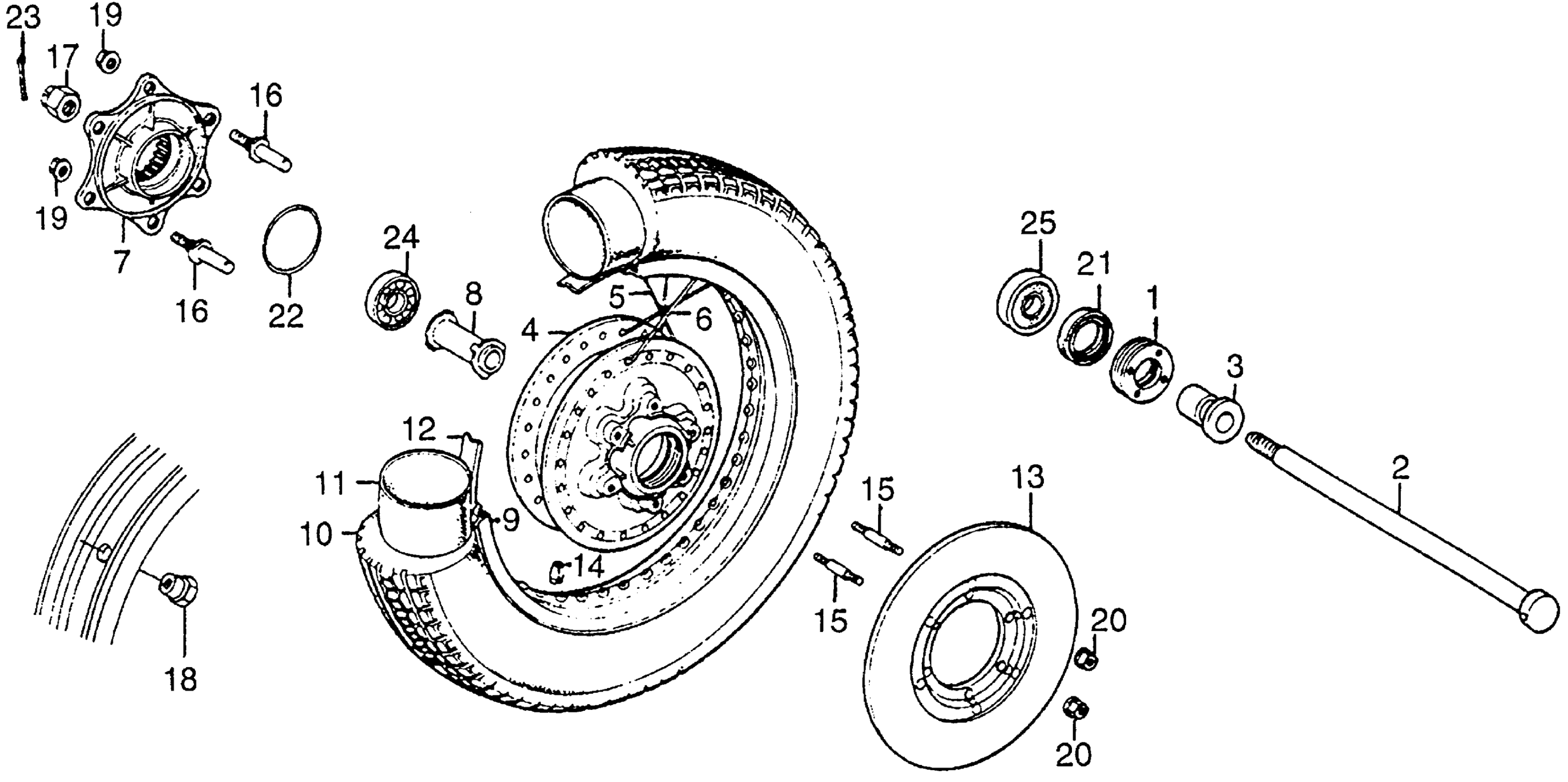

Honda GL1000A MOTORCYCLE, JPN, VIN# GL1-1000001 TO GL1-1020183 REAR WHEEL + DISC Diagram

#

Description
Price

1

RETAINER, RR. WHEEL BEARING

41231-286-000

$29.11

2

AXLE, RR. WHEEL (NOT AVAILABLE)

42301-371-000

Unavailable

3

COLLAR, RR. WHEEL SIDE (NOT AVAILABLE)

42311-356-000

Unavailable

4

HUB ASSY., RR. WHEEL

42601-371-315

Unavailable

5

SPOKE ASSY. A, RR. This part replaces 42606-371-305.

42606-393-700

$6.31

5

SPOKE ASSY. A, RR.

42606-393-700

$6.31

6

SPOKE ASSY. B, RR. This part replaces 42607-371-305.

42607-393-700

$5.37

6

SPOKE ASSY. B, RR.

42607-393-700

$5.37

7

FLANGE, FINAL DRIVEN This part replaces 42610-371-000.

42615-371-000

Unavailable

7

FLANGE, FINAL DRIVEN This part replaces 42610-371-310.

42615-371-000

Unavailable

7

FLANGE, FINAL DRIVEN This part replaces 42610-371-320.

42615-371-000

Unavailable

7

FLANGE, FINAL DRIVEN

42615-371-000

Unavailable

8

COLLAR A, RR. WHEEL DISTANCE (NOT AVAILABLE)

42620-371-000

Unavailable

9

RIM, RR. WHEEL (DAIDO) (NOT AVAILABLE)

42701-371-003

Unavailable

10

TIRE, RR. (4.50H17) (4PR) (BS) (NOT AVAILABLE)

42711-MA4-671

Unavailable

10

TIRE, RR. (4.50H17) (4PR) (BS) (NOT AVAILABLE) This part replaces 42711-371-673.

42711-MA4-671

Unavailable

10

TIRE, RR. (4.50H17) (4PR) (BS) (NOT AVAILABLE) This part replaces 42711-371-674.

42711-MA4-671

Unavailable

11

TUBE, TIRE (5.10-17) (INOUE) This part replaces 08400-37100.

42712-MA0-005

Unavailable

11

TUBE, TIRE (5.10-17) (INOUE) This part replaces 42712-KB7-902.

42712-MA0-005

Unavailable

11

TUBE, TIRE (5.10-17) (INOUE) This part replaces 42712-MA0-003.

42712-MA0-005

Unavailable

11

TUBE, TIRE (5.10-17) (INOUE)

42712-MA0-005

Unavailable

11

TUBE, TIRE (120/90-17) (BS)

42712-MN9-003

Unavailable

11

TUBE, TIRE (5.10-17) (INOUE) This part replaces 42712-371-003.

42712-MA0-005

Unavailable

11

TUBE, TIRE (5.10-17) (INOUE) This part replaces 42712-371-004.

42712-MA0-005

Unavailable

12

FLAP, TIRE (17)

42713-371-000

$30.54

13

DISK, RR. BRAKE (NOT AVAILABLE)

43120-371-000

Unavailable

14

BALANCER, WHEEL (20G)

44606-283-000

$8.89

14

BALANCER, WHEEL (15G)

44607-283-000

$8.08

14

BALANCER, WHEEL (10G)

44608-283-000

Unavailable

14

BALANCER, WHEEL (5G)

44609-283-000

$3.93

15

BOLT, STUD (8X45)

90125-329-010

$3.26

16

BOLT, DRIVEN SPROCKET FIXING (NOT AVAILABLE)

90128-346-003

Unavailable

17

NUT, RR. WHEEL AXLE This part replaces 90306-268-000.

90306-329-770

$7.58

17

NUT, RR. WHEEL AXLE

90306-329-770

$7.58

18

NUT, TIRE VALVE

90306-371-003

$3.24

19

NUT, HEX. (10MM)

90308-357-000

$4.85

20

NUT, HEX. (8MM)

90309-357-000

$3.40

21

DUST SEAL (30X45X9.5)

91253-286-013

$6.81

21

DUST SEAL (30X45X9.5) This part replaces 91253-356-005.

91253-286-013

$6.81

22

O-RING (62.4X3.1) This part replaces 91304-MN5-003.

91316-PE7-730

$5.69

22

O-RING (62.4X3.1) This part replaces 91316-PT6-003.

91316-PE7-730

$5.69

22

O-RING (63X3.0)

91359-371-003

$5.69

23

PIN, COTTER (4.0X30)

94201-40300

$1.49

24

BEARING, RADIAL BALL (6204U)

96140-62040-10

$21.84

25

BEARING, RADIAL BALL (6304U)

96140-63040-10

$24.03
