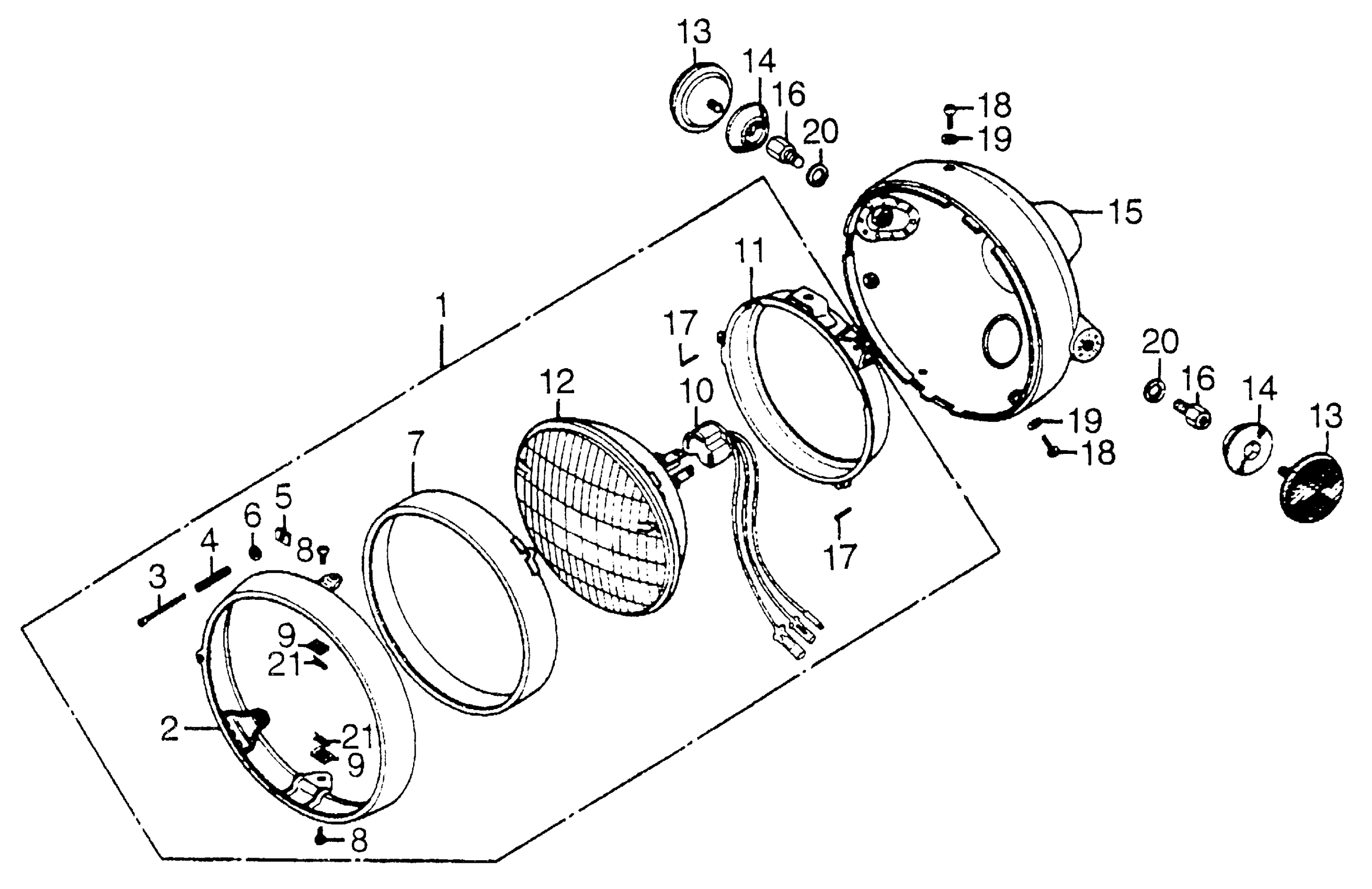

Honda GL1000A MOTORCYCLE, JPN, VIN# GL1-1000001 TO GL1-1020183 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT ASSY. (12V50/40W) (STANLEY) (NOT AVAILABLE)

33100-371-672

Unavailable

2

RIM, HEADLIGHT This part replaces 33101-300-673.

33101-405-671

$71.39

2

RIM, HEADLIGHT

33101-405-671

$71.39

3

SCREW, BEAM ADJUSTING This part replaces 33103-346-670.

33103-MW3-610

$7.90

4

SPRING, HEADLIGHT BEAM ADJUSTING

33107-300-003

$3.01

5

NUT, HEADLIGHT BEAM ADJ.

33117-001-023

$2.39

6

WASHER, BEAM ADJUSTING

33119-371-003

$2.84

7

RING, RETAINING (NOT AVAILABLE)

33121-375-671

Unavailable

8

SCREW, UNIT HOLDER

33125-292-670

Unavailable

9

NUT, UNIT HOLDER

33128-292-670

$2.94

10

SOCKET, HEADLIGHT (NOT AVAILABLE) This part replaces 33130-300-671.

33130-300-003

Unavailable

11

RING, SETTING (NOT AVAILABLE)

33153-375-671

Unavailable

12

SET UNIT,HEAD LIG This part replaces 33321-341-701.

33120-431-505

Unavailable

12

SET UNIT,HEAD LIG This part replaces 33321-371-672.

33120-431-505

Unavailable

13

REFLECTOR, FR. REFLEX This part replaces 33741-340-670.

33741-102-870

$35.84

14

BASE, FR. REFLECTOR

33743-375-000

Unavailable

15

CASE, HEADLIGHT (STANLEY) (NOT AVAILABLE)

61301-371-003

Unavailable

16

BOLT, HEADLIGHT STAY (NOT AVAILABLE)

90120-371-000

Unavailable

17

SCREW, PAN (3X12)

93500-03012-0A

$1.49

18

SCREW, PAN (5X16)

93500-05016-0B

$1.49

19

WASHER, SPRING (5MM)

94111-05000

$1.49

20

WASHER, SPRING (8MM)

94111-10000

$1.49

21

PIN, LOCK (5MM)

94251-05000

$1.49
