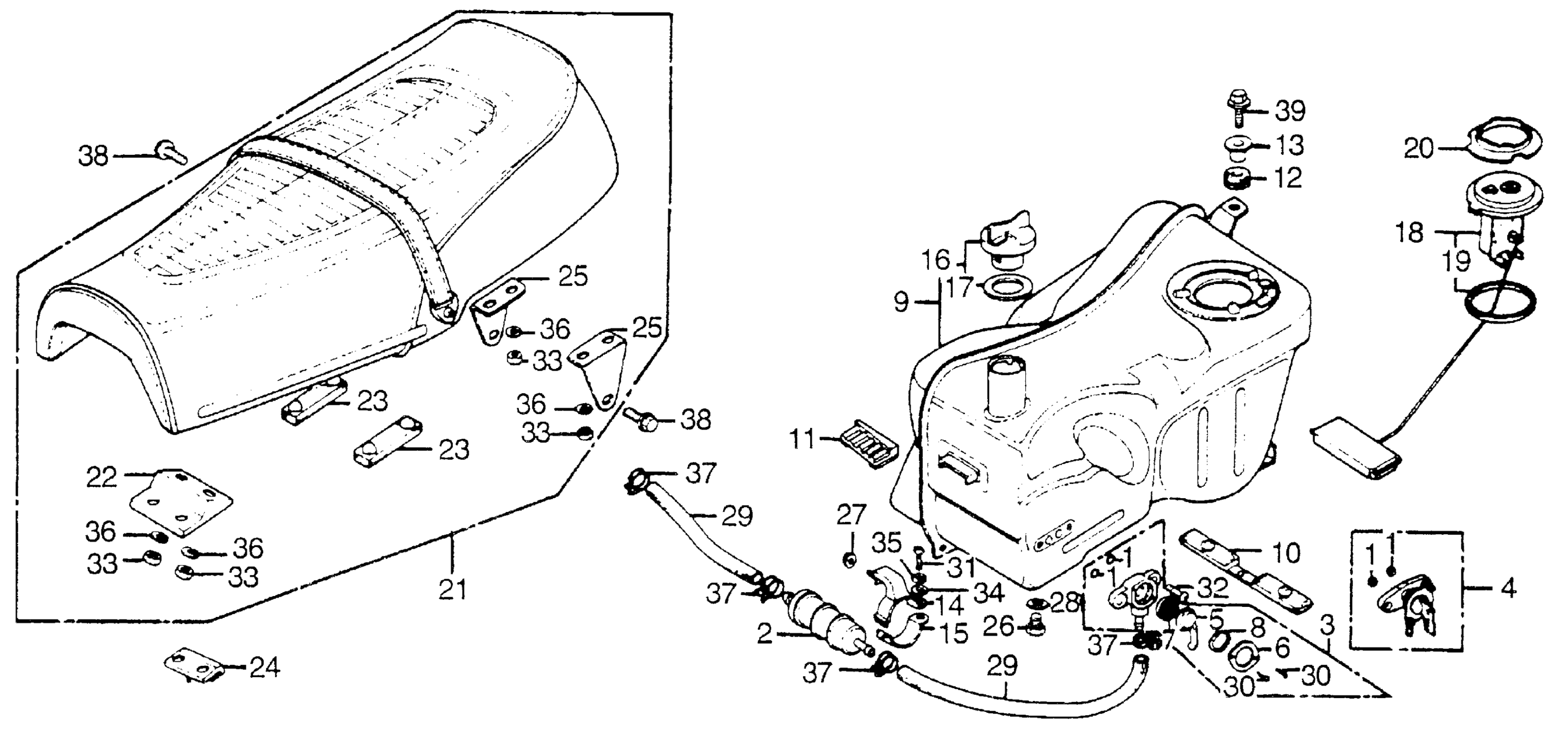

Honda GL1000A MOTORCYCLE, JPN, VIN# GL1-1000001 TO GL1-1020183 FUEL TANK + SEAT Diagram

#

Description
Price

1

O-RING

16175-551-950

Unavailable

2

FILTER, FUEL

16900-371-004

$30.23

3

PETCOCK ASSY. This part replaces 16950-371-005.

16950-371-025

$58.67

3

PETCOCK ASSY. This part replaces 16950-371-015.

16950-371-025

$58.67

3

PETCOCK ASSY.

16950-371-025

$58.67

5

LEVER, VALVE (NOT AVAILABLE)

16953-371-005

Unavailable

6

COVER, VALVE (NOT AVAILABLE)

16954-371-005

Unavailable

7

GASKET, VALVE

16955-268-020

$5.08

8

SPRING, PETCOCK LEVER

16960-268-010

Unavailable

9

TANK, FUEL *NH1* (BLACK) (NOT AVAILABLE) This part replaces 17510-371-000ZA.

17510-431-670ZA

Unavailable

9

TANK, FUEL *NH1* (BLACK) (NOT AVAILABLE) This part replaces 17510-371-010ZA.

17510-431-670ZA

Unavailable

9

TANK, FUEL *NH1* (BLACK) (NOT AVAILABLE) This part replaces 17510-371-980.

17510-431-670ZA

Unavailable

9

TANK, FUEL *NH1* (BLACK) (NOT AVAILABLE)

17510-431-670ZA

Unavailable

10

RUBBER A, FUEL TANK MOUNT (NOT AVAILABLE)

17614-371-000

Unavailable

11

RUBBER B, FUEL TANK SETTING (NOT AVAILABLE)

17615-371-000

Unavailable

12

RUBBER C, FUEL TANK SETTING (NOT AVAILABLE)

17616-371-000

Unavailable

13

COLLAR, TANK SET (FUEL)

17618-371-000

Unavailable

14

STAY A, STRAINER (NOT AVAILABLE)

17626-371-000

Unavailable

15

STAY B, STRAINER

17628-371-000

Unavailable

16

CAP, FUEL FILLER (NOT AVAILABLE) This part replaces 17670-371-000.

17670-371-010

Unavailable

16

CAP, FUEL FILLER (NOT AVAILABLE)

17670-371-010

Unavailable

17

GASKET This part replaces 17682-634-003.

17631-096-702

$2.47

17

GASKET This part replaces 17631-096-700.

17631-096-702

$2.47

17

GASKET This part replaces 17631-096-701.

17631-096-702

$2.47

18

FUEL UNIT (NOT AVAILABLE)

37800-371-008

Unavailable

19

GASKET, BASE This part replaces 37801-634-000.

37801-689-000

$4.90

19

GASKET, BASE

37801-689-000

$4.90

20

RETAINER, FUEL UNIT

37802-371-000

Unavailable

21

SEAT, DOUBLE (NOT AVAILABLE) This part replaces 77200-371-000.

77200-431-670

Unavailable

22

STAY, FR. (NOT AVAILABLE)

77203-371-305

Unavailable

23

RUBBER B, SEAT SETTING

77205-286-000

$5.28

23

RUBBER B, SEAT SETTING This part replaces 77205-292-010.

77205-286-000

$5.28

24

RUBBER, SEAT MOUNT (NOT AVAILABLE)

77207-371-000

Unavailable

25

STAY, RR. (NOT AVAILABLE)

77207-371-305

Unavailable

26

BOLT, DRAIN (NOT AVAILABLE)

90107-538-010

Unavailable

27

NUT, FLANGE (5MM) This part replaces 90117-371-003.

94050-05000

$1.49

27

NUT, FLANGE (5MM)

94050-05000

$1.49

28

GASKET, DRAIN (NOT AVAILABLE)

90505-568-000

Unavailable

29

HOSE, FUEL (5.5X150)

91455-371-000

$14.04

30

SCREW, PAN (3X6)

93500-03006-0A

$1.49

31

SCREW, PAN (5X10)

93500-05010-0A

$1.49

32

SCREW, PAN (6X12)

93500-06012-0G

$1.49

33

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

33

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

33

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

33

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

33

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

33

NUT, HEX. (6MM)

94001-06200-0S

$1.49

33

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

34

WASHER, PLAIN (5MM)

94101-05000

$1.49

35

WASHER, SPRING (5MM)

94111-05000

$1.49

36

WASHER, SPRING (6MM)

94111-06000

$1.49

37

CLIP, TUBE (A12)

95002-01120

$2.75

38

BOLT, FLANGE (8X16) This part replaces 95700-08016-00.

95701-08016-00

$1.80

38

BOLT, FLANGE (8X16)

95701-08016-00

$1.80

39

BOLT, FLANGE (8X28) This part replaces 95700-08028-08.

95701-08028-08

$2.06

39

BOLT, FLANGE (8X28)

95701-08028-08

$2.06
