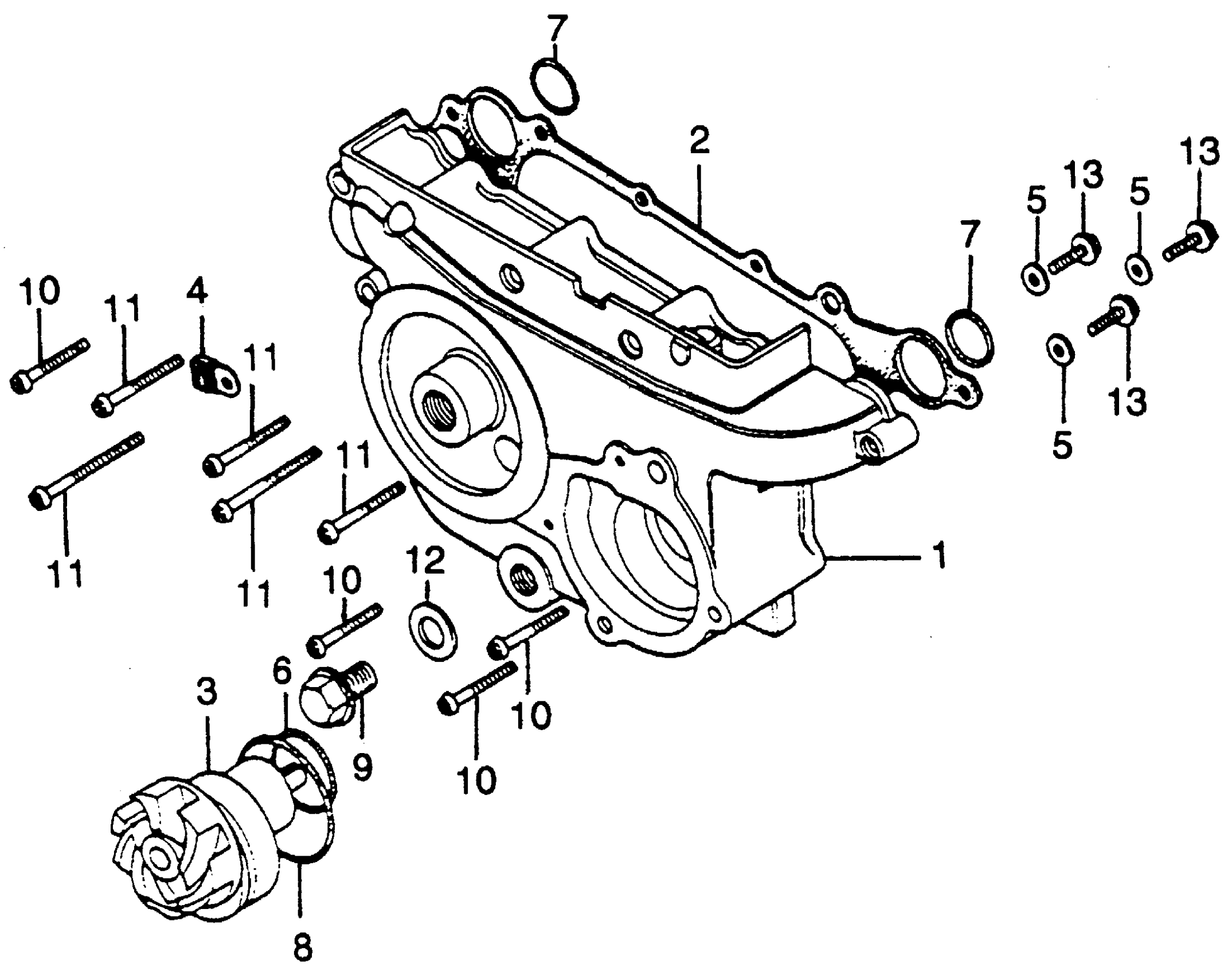

Honda GL1000A (79) GOLD WING, JPN, VIN# GL1-4100003 TRANSMISSION COVER + WATER PUMP Diagram

#

Description
Price

1

COVER, TRANSMISSION (NOT AVAILABLE) This part replaces 11360-371-000.

11360-463-000

Unavailable

2

GASKET, TRANSMISSION COVER This part replaces 11391-371-000.

11391-371-306

Unavailable

2

GASKET, TRANSMISSION COVER

11391-371-306

Unavailable

3

WATER PUMP | Use up to Engine SN 4100876 This part replaces 19200-371-000.

19200-MG9-681

$231.77

3

WATER PUMP This part replaces 19200-MG9-680.

19200-MG9-681

$231.77

3

WATER PUMP | Use up to Engine SN 4100876 This part replaces 19200-MG9-680.

19200-MG9-681

$231.77

3

WATER PUMP

19200-MG9-681

$231.77

3

WATER PUMP | Use up to Engine SN 4100876

19200-MG9-681

$231.77

3

WATER PUMP This part replaces 19200-371-010.

19200-MG9-681

$231.77

3

WATER PUMP | Use up to Engine SN 4100876 This part replaces 19200-371-010.

19200-MG9-681

$231.77

3

WATER PUMP This part replaces 19200-371-020.

19200-MG9-681

$231.77

3

WATER PUMP | Use up to Engine SN 4100876 This part replaces 19200-371-020.

19200-MG9-681

$231.77

4

CLAMP, CABLE

32111-323-000

$3.98

5

WASHER, SEALING (6MM)

90441-028-010

$2.92

6

O-RING (37X2.4) (ARAI) GASKET KIT A This part replaces 91303-283-000.

91305-KT7-003

$2.83

6

O-RING (37X2.4) (ARAI)

91305-KT7-003

$2.83

7

O-RING (23X2.1) This part replaces 91312-371-003.

91312-371-013

$2.92

7

O-RING (23X2.1)

91312-371-013

$2.92

8

O-RING (56X2.4)

91356-706-000

$3.44

9

BOLT, DRAIN PLUG (14MM)

92800-14000

$3.67

10

SCREW, PAN (6X35) This part replaces 93500-06035.

93500-06035-0A

$1.49

10

SCREW, PAN (6X35)

93500-06035-0A

$1.49

11

SCREW, PAN (6X55) This part replaces 93500-06055.

93500-06055-0A

$1.49

11

SCREW, PAN (6X55)

93500-06055-0A

$1.49

12

WASHER, DRAIN PLUG (14MM)

94109-14000

$1.49

13

BOLT, FLANGE (6X18) BOLT, HEX. (6X18) This part replaces 95700-06018-00.

95701-06018-00

$1.62

13

BOLT, FLANGE (6X18)

95701-06018-00

$1.62
