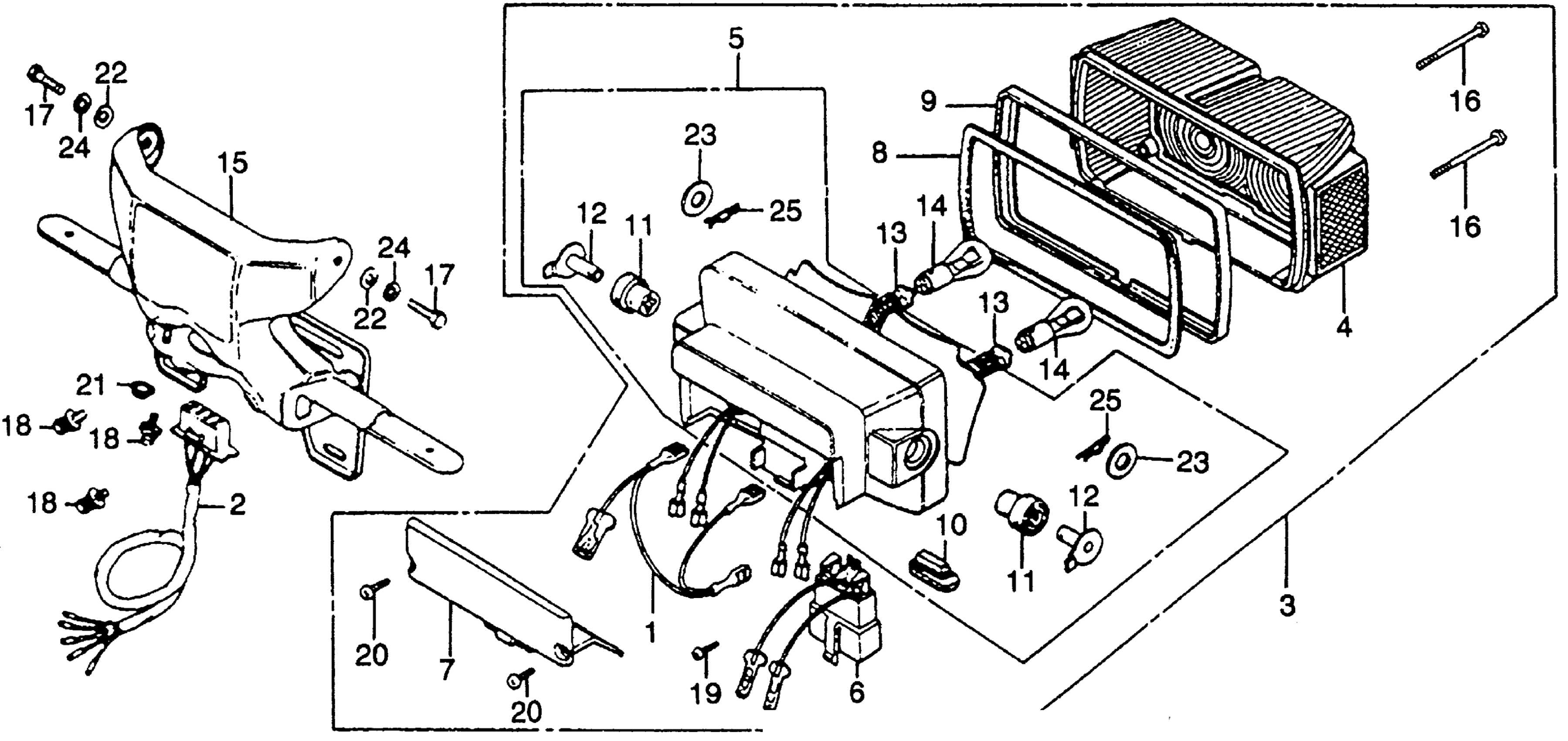

Honda GL1000A (79) GOLD WING, JPN, VIN# GL1-4100003 TAILLIGHT 79 Diagram
#
Description
Price
1
CABLE, GROUND (NOT AVAILABLE)
32101-422-003
Unavailable
2
SUB-WIRE HARNESS (NOT AVAILABLE)
32101-431-780
Unavailable
3
TAILLIGHT UNIT (12V 32/3CP) (NOT AVAILABLE) | Use up to Frame SN 4110808 This part replaces 33701-422-672.
33701-422-673
Unavailable
3
TAILLIGHT UNIT (12V 32/3CP) (NOT AVAILABLE) | Use from Frame SN 4110809
33701-422-673
Unavailable
4
LENS, TAILLIGHT
33702-422-671
Unavailable
5
BASE, TAILLIGHT (NOT AVAILABLE) | Use up to Frame SN 4110808 This part replaces 33703-422-672.
33703-422-673
Unavailable
5
BASE, TAILLIGHT (NOT AVAILABLE)
33703-422-673
Unavailable
6
CONNECTOR (NOT AVAILABLE)
33704-422-003
Unavailable
7
COVER, TAILLIGHT (NOT AVAILABLE)
33708-422-003
Unavailable
8
GASKET, TAILLIGHT LENS (NOT AVAILABLE)
33709-422-003
Unavailable
9
RIM, TAILLIGHT (NOT AVAILABLE)
33710-422-003
Unavailable
10
RUBBER, SETTING (NOT AVAILABLE) | Use up to Frame SN 4110808 This part replaces 33711-422-003.
33711-422-013
Unavailable
10
RUBBER, SETTING (NOT AVAILABLE)
33711-422-013
Unavailable
11
RUBBER B, SETTING (NOT AVAILABLE)
33713-422-013
Unavailable
12
COLLAR, TAILLIGHT SETTING
33715-422-013
Unavailable
13
WIRE, TAILLIGHT (NOT AVAILABLE)
33718-422-003
Unavailable
14
BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY) This part replaces 34906-341-671.
34906-MG9-771
$4.15
15
BRACKET, NUMBER PLATE (NOT AVAILABLE)
84700-431-781
Unavailable
17
BOLT, HEX. (6X20) This part replaces 92000-06020-02.
92101-06020-0B
Unavailable
17
BOLT, HEX. (6X20) This part replaces 92018-06020-02.
92101-06020-0B
Unavailable
17
BOLT, HEX. (6X20)
92101-06020-0B
Unavailable
