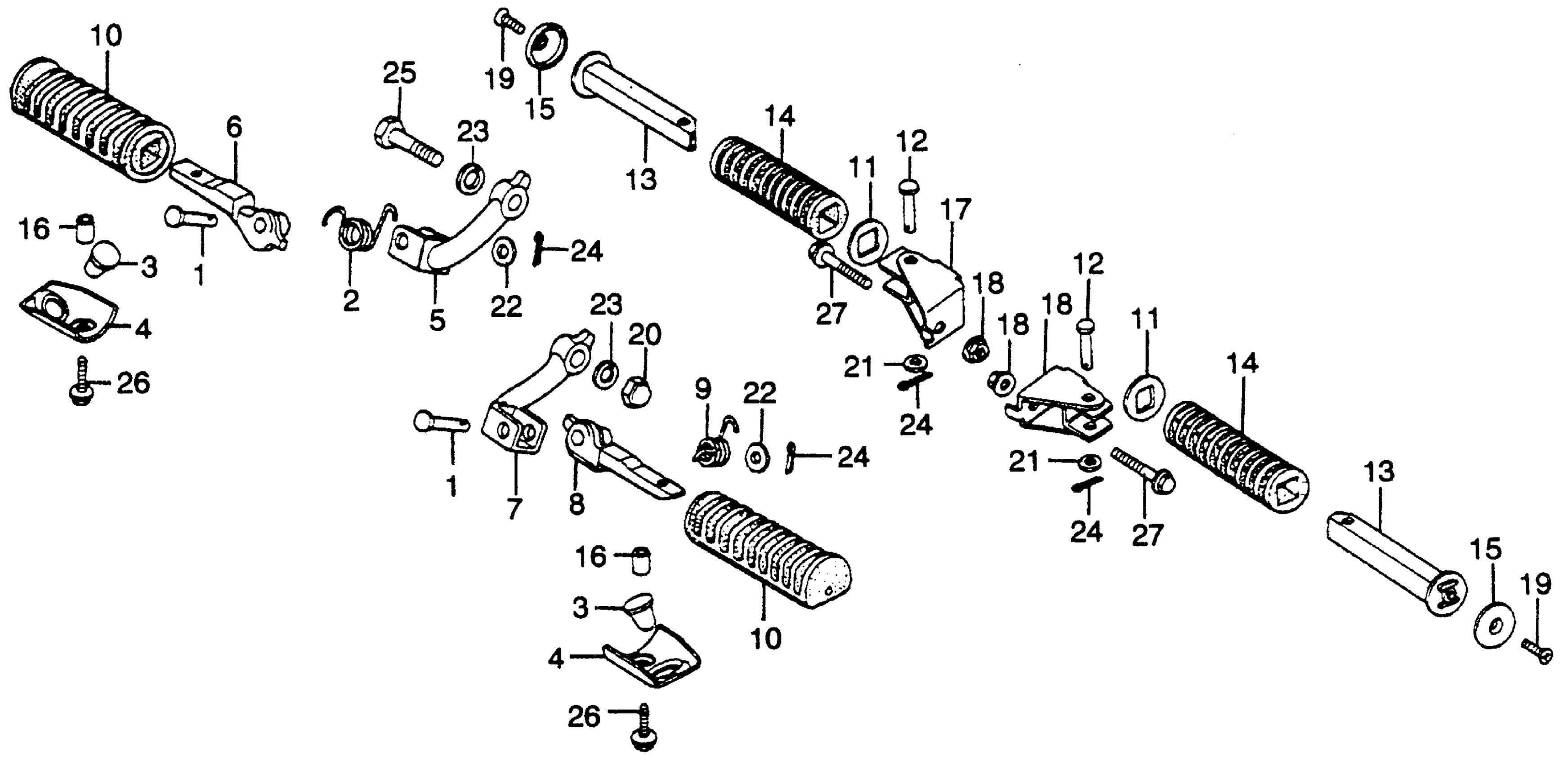

Honda GL1000A (79) GOLD WING, JPN, VIN# GL1-4100003 STEP Diagram

#

Description
Price

1

PIN, STEP BAR JOINT

50603-033-010

$3.30

1

PIN, STEP BAR JOINT This part replaces 50603-371-660.

50603-033-010

$3.30

2

SPRING, R. STEP RETURN

50617-300-670

Unavailable

3

SLIDER, FOOTPEG (NOT AVAILABLE)

50618-431-670

Unavailable

4

STOPPER, STEP RUBBER (NOT AVAILABLE) This part replaces 50619-405-000.

50619-MB9-000

Unavailable

5

BRACKET, R. STEP

50630-371-000

Unavailable

6

ARM, R. STEP

50632-405-000

$43.11

7

BRACKET, L. STEP (NOT AVAILABLE)

50640-431-670

Unavailable

8

ARM, L. STEP (NOT AVAILABLE)

50642-405-000

Unavailable

9

SPRING, L. STEP RETURN

50644-300-670

Unavailable

10

RUBBER, STEP

50661-405-000

Unavailable

11

WASHER, PILLION STEP

50712-371-660

Unavailable

12

PIN B, PILLION STEP

50714-371-660

Unavailable

13

BAR, PILLION STEP

50715-371-660

Unavailable

14

RUBBER, PILLION FOOTPEG

50716-371-660

$14.21

15

COVER, PILLION STEP (NOT AVAILABLE)

50717-371-660

Unavailable

16

COLLAR, NUMBER BRACKET SETTING

84706-286-000

$2.99

17

BRACKET, PILLION STEP

90167-371-660

Unavailable

18

NUT, FLANGE (10MM) This part replaces 90201-329-000.

94050-10000

$1.59

18

NUT, FLANGE (10MM) This part replaces 90204-634-000.

94050-10000

$1.59

18

NUT, FLANGE (10MM) This part replaces 94030-10000-07.

94050-10000

$1.59

18

NUT, FLANGE (10MM)

94050-10000

$1.59

19

SCREW, OVAL (4X12)

93700-04012-0B

$1.32

20

NUT, CAP (12MM)

94021-12200-0S

Unavailable

21

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

21

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

21

WASHER, PLAIN (6MM)

94101-06800

$1.49

22

WASHER, PLAIN (8MM)

94101-08000

$1.49

23

WASHER, SPRING (12MM)

94111-12000

$1.49

24

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

24

PIN, COTTER (1.6X25)

94201-16250

$1.49

25

BOLT, HEX. (12X40) (NOT AVAILABLE) This part replaces 95300-12040.

95300-12040-00

Unavailable

25

BOLT, HEX. (12X40) (NOT AVAILABLE)

95300-12040-00

Unavailable

26

BOLT, FLANGE (6X18) BOLT, HEX. (6X18) This part replaces 95700-06018-00.

95701-06018-00

$1.62

26

BOLT, FLANGE (6X18)

95701-06018-00

$1.62

27

BOLT, FLANGE (10X40) This part replaces 95700-10040-00.

95701-10040-00

$1.51

27

BOLT, FLANGE (10X40)

95701-10040-00

$1.51
