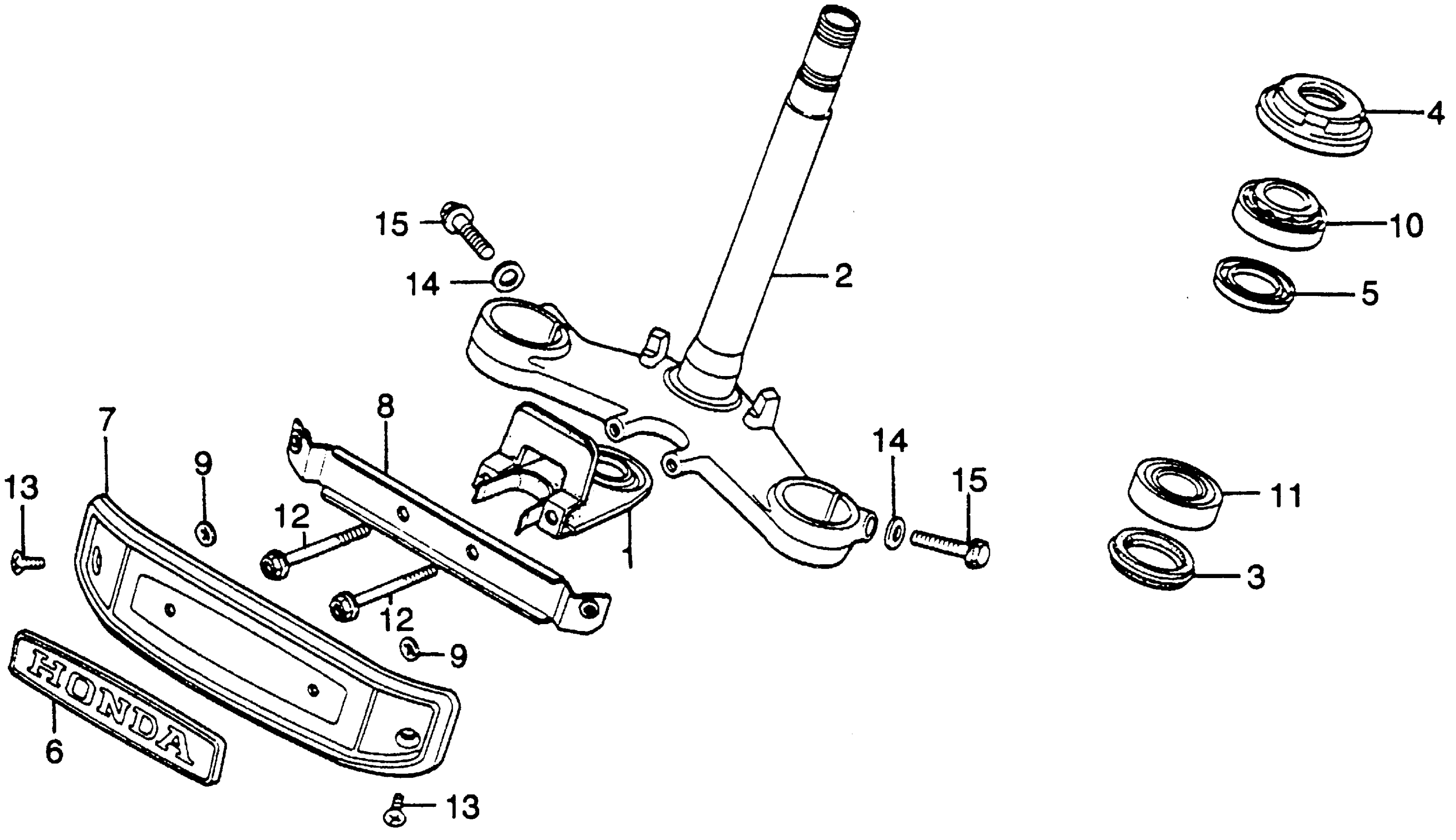

Honda GL1000A (79) GOLD WING, JPN, VIN# GL1-4100003 STEERING STEM Diagram

#

Description
Price

1

GUARD, WIRE HARNESS (NOT AVAILABLE)

32223-431-670

Unavailable

2

STEM, STEERING *NH1* (BLACK) (NOT AVAILABLE)

53200-371-010ZA

Unavailable

3

DUST SEAL, STEERING HEAD

53214-371-010

$13.33

4

THREAD, STEERING HEAD (UPPER)

53220-286-000

Unavailable

5

HOLDER, GREASE

53223-371-010

Unavailable

6

EMBLEM, FR. (NOT AVAILABLE)

87127-431-670

Unavailable

7

STAY A, FR. EMBLEM (NOT AVAILABLE)

87128-431-670

Unavailable

8

STAY B, FR. EMBLEM (NOT AVAILABLE)

87129-431-670

Unavailable

9

NUT, SPEED (3MM)

90313-567-000

$3.97

10

BEARING, HEAD PIPE (UPPER) (NACHI)

91015-371-000

Unavailable

11

BEARING, HEAD PIPE (LOWER)

91016-371-000

$55.12

12

BOLT, HEX. (10X40) This part replaces 92000-10040-0B.

92101-10040-0B

Unavailable

12

BOLT, HEX. (10X40)

92101-10040-0B

Unavailable

13

SCREW, FLAT (5X8)

93600-05008-0G

$1.49

13

SCREW, FLAT (5X8) This part replaces 93600-05008-1G.

93600-05008-0G

$1.49

14

WASHER, PLAIN (10MM)

94101-10200

$1.49

15

BOLT, FLANGE (6X40) This part replaces 95700-06040-00.

95701-06040-00

$1.80

15

BOLT, FLANGE (6X40)

95701-06040-00

$1.80
