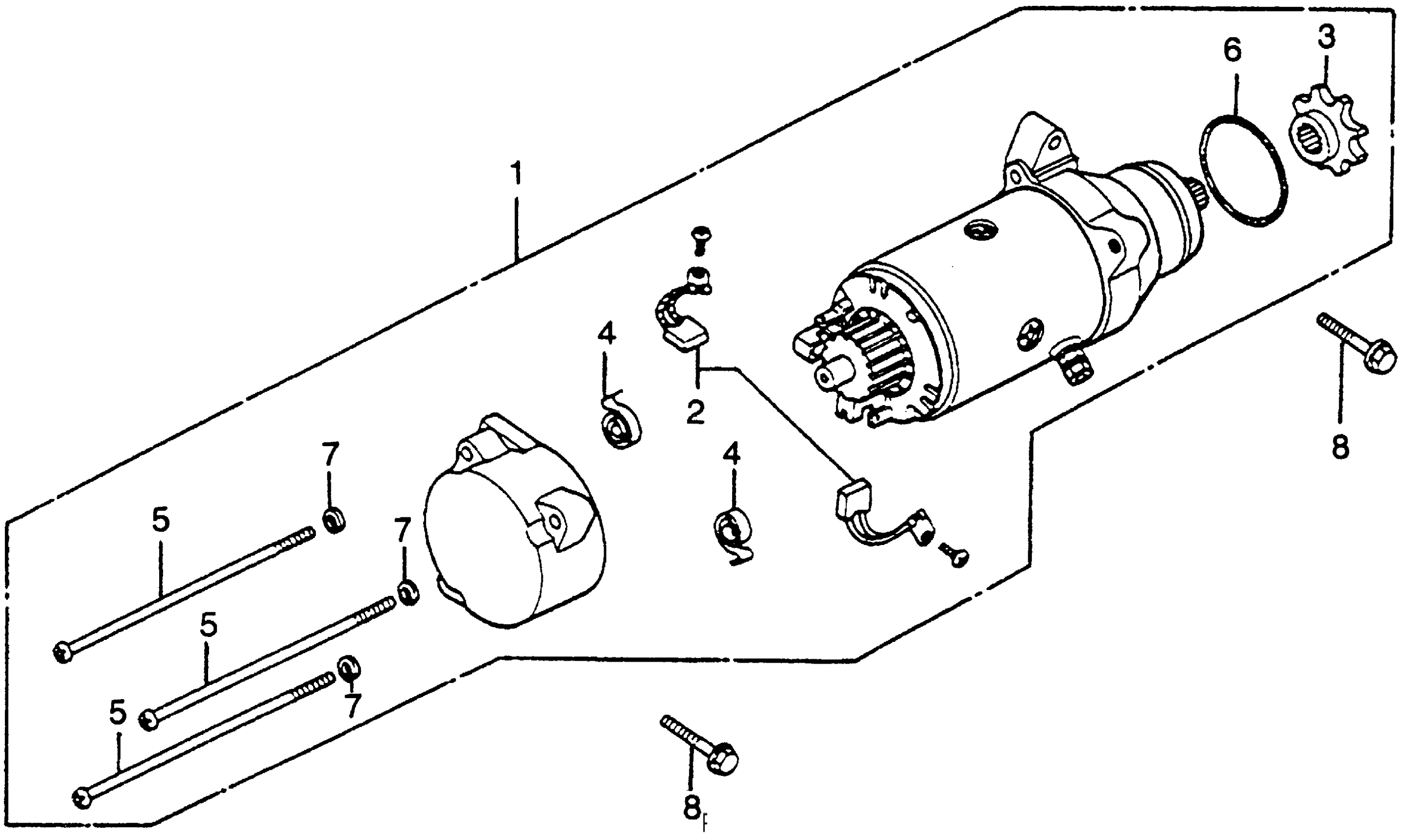

Honda GL1000A (79) GOLD WING, JPN, VIN# GL1-4100003 STARTER MOTOR Diagram

STARTER MOTOR ASSY. This part replaces 31200-371-005.

31200-371-405

Unavailable

BRUSH SET, CARBON

31201-292-158

$23.48

SPROCKET (MITSUBA) (NOT AVAILABLE)

31202-371-005

Unavailable

SPRING, CARBON BRUSH

31204-292-158

$3.57

BOLT, SETTING (NOT AVAILABLE)

31205-371-005

Unavailable

O-RING

91309-MA6-000

$3.69

O-RING This part replaces 91309-283-005.

91309-MA6-000

$3.69

WASHER, SPRING (5MM)

94111-05000

$1.03

BOLT, FLANGE (6X28)

95700-06028-00

$1.65

BOLT, FLANGE (6X28)

95701-06028-00

$1.65
