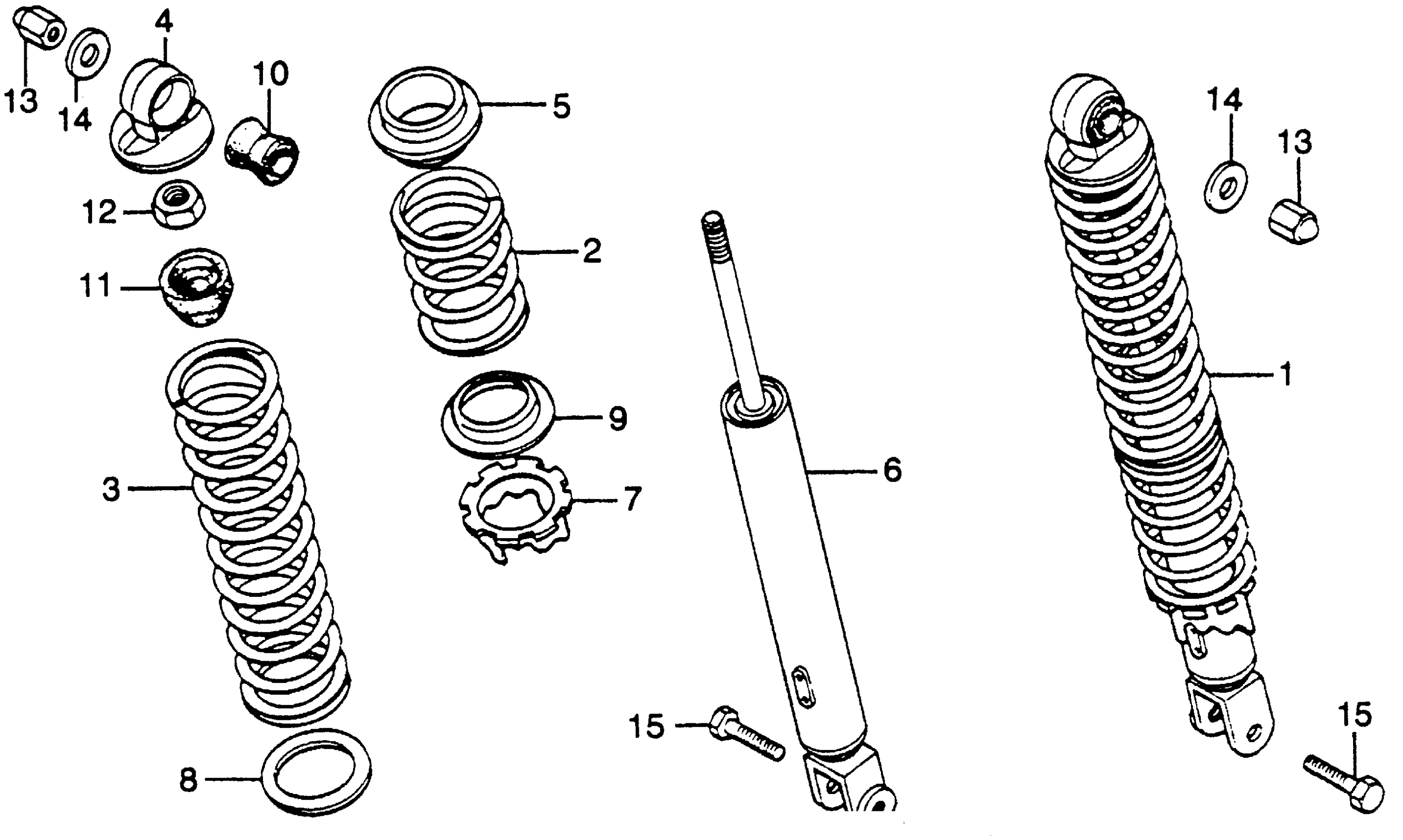

Honda GL1000A (79) GOLD WING, JPN, VIN# GL1-4100003 REAR SHOCK ABSORBER Diagram

SHOCK ABSORBER ASSY., RR. (NOT AVAILABLE)

52400-431-672

Unavailable

SPRING A, RR. SHOCK ABSORBER (NOT AVAILABLE)

52401-431-671

Unavailable

SPRING B, RR. SHOCK ABSORBER (NOT AVAILABLE)

52402-431-671

Unavailable

JOINT (UPPER)

52403-410-013

Unavailable

JOINT, RR. SHOCK ABSORBER SPRING (NOT AVAILABLE)

52404-431-671

Unavailable

DAMPER, RR. (NOT AVAILABLE)

52410-431-671

Unavailable

ADJUSTER, SPRING (NOT AVAILABLE)

52422-410-003

Unavailable

SEAT, SPRING MIDDLE (NOT AVAILABLE)

52457-431-670

Unavailable

SEAT, SPRING (LOWER) (SHOWA) (NOT AVAILABLE)

52458-410-003

Unavailable

RUBBER, JOINT

52484-292-000

$5.87

RUBBER, STOPPER (NOT AVAILABLE)

52517-410-003

Unavailable

NUT, HEX. (11MM) (NOT AVAILABLE)

90301-376-003

Unavailable

NUT, FLANGE (10MM)

90309-315-000

$5.35

WASHER (10.3MM)

90521-292-000

$3.42

BOLT, HEX. (10X32) This part replaces 93200-10032-0B.

93201-10032-0B

$2.92

BOLT, HEX. (10X32)

93201-10032-0B

$2.92
