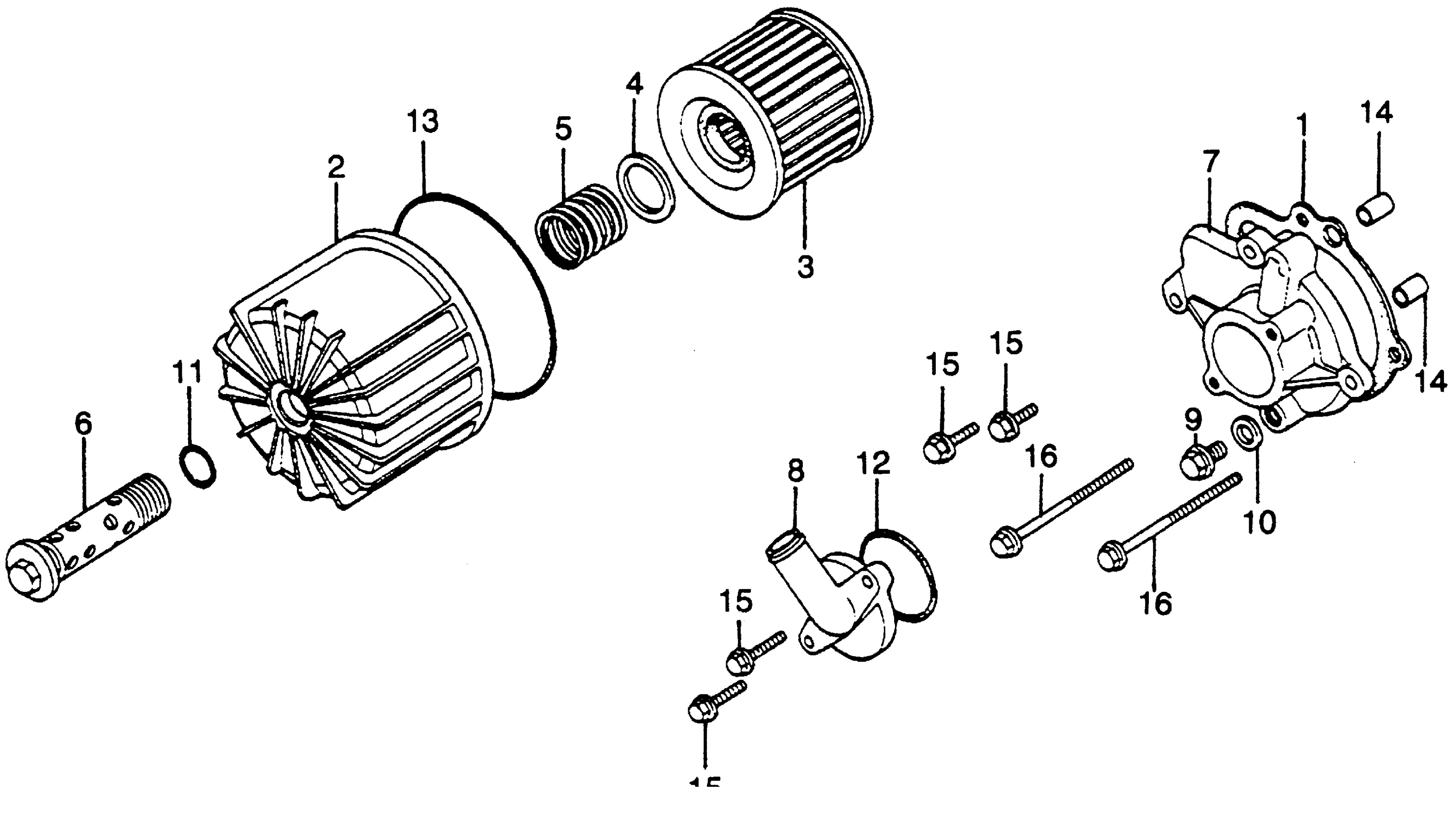

Honda GL1000A (79) GOLD WING, JPN, VIN# GL1-4100003 OIL FILTER + WATER PUMP COVER Diagram

#

Description
Price

1

GASKET, WATER PUMP This part replaces 11396-371-000.

11396-371-306

$6.49

1

GASKET, WATER PUMP

11396-371-306

$6.49

2

CASE, OIL FILTER (NOT AVAILABLE)

15411-371-000

Unavailable

3

ELEMENT, OIL FILTER This part replaces 15410-422-000.

15410-426-010

$8.10

3

ELEMENT, OIL FILTER This part replaces 15410-426-000.

15410-426-010

$8.10

3

ELEMENT, OIL FILTER

15410-426-010

$8.10

3

ELEMENT, OIL FILTER This part replaces 15412-300-024.

15410-426-010

$8.10

3

ELEMENT, OIL FILTER This part replaces 15412-300-325.

15410-426-010

$8.10

4

SEAT, OIL FILTER SPRING

15414-300-000

$3.62

5

SPRING, OIL FILTER ELEMENT SETTING

15415-300-000

$4.51

6

BOLT, OIL FILTER CENTER

15420-300-020

Unavailable

7

COVER, WATER PUMP (NOT AVAILABLE) This part replaces 19221-MB9-000.

19221-371-980

Unavailable

7

COVER, WATER PUMP (NOT AVAILABLE) This part replaces 19221-371-000.

19221-371-980

Unavailable

8

CAP, WATER PUMP (NOT AVAILABLE)

19225-371-000

Unavailable

9

CHECK BOLT, OIL LEVEL This part replaces 90007-371-004.

90035-KZ1-000

Unavailable

10

WASHER (10.2MM)

90481-001-020

$2.80

11

O-RING (15X2.5)

91301-MY9-003

$2.17

11

O-RING (15X2.5) This part replaces 91302-028-000.

91301-MY9-003

$2.17

12

O-RING (46X2) This part replaces 91305-216-000.

91305-426-003

$6.69

12

O-RING (46X2)

91305-426-003

$6.69

13

O-RING (89X4.5) This part replaces 91316-300-005.

91316-425-003

$4.13

13

O-RING (89X4.5)

91316-425-003

$4.13

14

PIN A, DOWEL (8X14)

94301-08140

$2.04

15

BOLT, FLANGE (6X22) This part replaces 95700-06022-00.

95701-06022-00

Unavailable

15

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable

16

BOLT, FLANGE (6X80) This part replaces 95700-06080-00.

95701-06080-00

$2.30

16

BOLT, FLANGE (6X80)

95701-06080-00

$2.30
