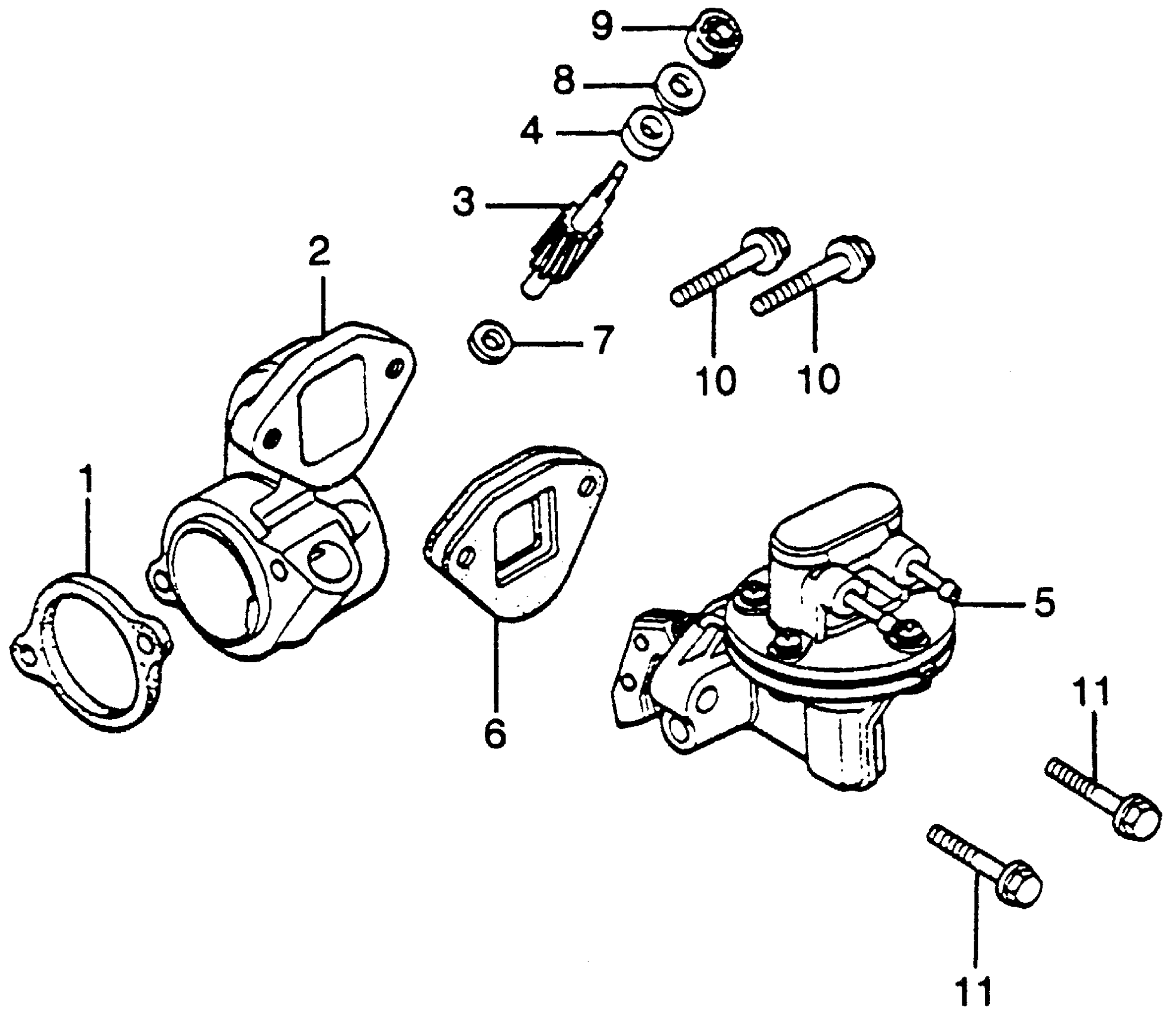

Honda GL1000A (79) GOLD WING, JPN, VIN# GL1-4100003 FUEL PUMP Diagram

#

Description
Price

1

INSULATOR, COVER This part replaces 12390-371-000.

12390-371-405

$10.84

1

INSULATOR, COVER This part replaces 12390-371-010.

12390-371-405

$10.84

1

INSULATOR, COVER

12390-371-405

$10.84

2

COVER, FUEL PUMP (NOT AVAILABLE)

12411-371-000

Unavailable

3

GEAR, TACHOMETER (NOT AVAILABLE)

12431-371-000

Unavailable

4

COLLAR, TACHOMETER GEAR THRUST (NOT AVAILABLE)

12435-246-000

Unavailable

5

PUMP ASSY., FUEL (KISAN) This part replaces 16700-371-004.

16700-371-014

$151.84

5

PUMP ASSY., FUEL (KISAN)

16700-371-014

$151.84

6

INSULATOR, FUEL PUMP

16701-634-000

Unavailable

7

WASHER, TACHOMETER GEAR THRUST

90458-286-000

Unavailable

8

WASHER, SPEEDOMETER PINION

90539-011-000

Unavailable

9

OIL SEAL (4.8X14.5X4) This part replaces 91211-286-003.

91256-096-651

$4.85

9

OIL SEAL (4.8X14.5X4)

91256-096-651

$4.85

10

BOLT, FLANGE (6X40) This part replaces 95700-06040-00.

95701-06040-00

$1.80

10

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

11

BOLT, FLANGE (8X32) This part replaces 95700-08032-00.

95701-08032-00

$1.49

11

BOLT, FLANGE (8X32)

95701-08032-00

$1.49
