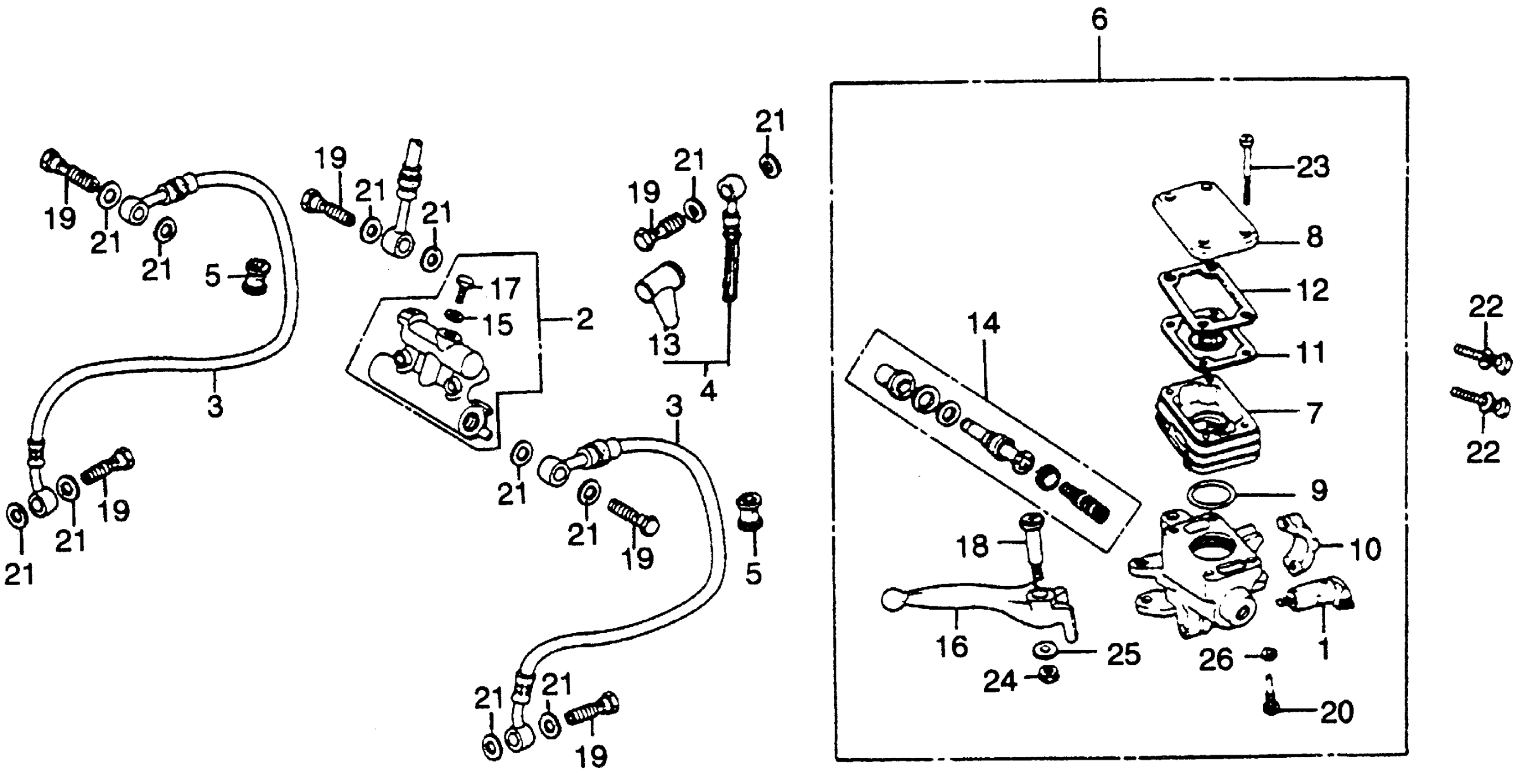

Honda GL1000A (79) GOLD WING, JPN, VIN# GL1-4100003 FRONT MASTER CYLINDER 79 Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP This part replaces 35340-422-003.

35340-422-013

$17.65

1

SWITCH ASSY., FR. STOP

35340-422-013

$17.65

2

JOINT ASSY., THREE-WAY

45123-410-000

Unavailable

3

HOSE A, FR. BRAKE (NOT AVAILABLE)

45125-431-782

Unavailable

4

HOSE ASSY. B, FR. BRAKE (NOT AVAILABLE)

45126-431-782

Unavailable

5

BUSH, BRAKE HOSE

45146-371-000

Unavailable

6

MASTER CYLINDER ASSY., FR. (NA USE ALT:45510-431-405) | Use up to Frame SN 4106335

45500-431-781

Unavailable

6

MASTER CYLINDER ASSY., FR. (NOT AVAILABLE) | Use from Frame SN 4106336 to 4115008 This part replaces 45500-431-782.

45500-431-785

Unavailable

6

MASTER CYLINDER ASSY., FR. (NOT AVAILABLE) | Use from Frame SN 4106336 This part replaces 45500-431-783.

45500-431-785

Unavailable

6

MASTER CYLINDER ASSY., FR. (NOT AVAILABLE) | Use from Frame SN 4106336

45500-431-785

Unavailable

7

CUP, OIL | Use up to Frame SN 4106335 This part replaces 45511-422-006.

45511-463-006

Unavailable

7

CUP, OIL | Use up to Frame SN 4106335 This part replaces 45511-422-016.

45511-463-006

Unavailable

7

CUP, OIL This part replaces 45511-422-016.

45511-463-006

Unavailable

7

CUP, OIL | Use up to Frame SN 4106335

45511-463-006

Unavailable

7

CUP, OIL

45511-463-006

Unavailable

8

CAP SET, OIL CUP CAP, OIL CUP | Use up to Frame SN 4115008 This part replaces 45513-422-671.

45519-422-671

Unavailable

8

CAP, OIL CUP | Use from Frame SN 4115009

45513-422-672

Unavailable

8

CAP SET, OIL CUP | Use up to Frame SN 4115008

45519-422-671

Unavailable

9

O-RING (39.7X3.5)

45516-422-006

$9.13

10

HOLDER, MASTER CYLINDER

45517-MA5-671

$29.30

10

HOLDER, MASTER CYLINDER This part replaces 45517-422-006.

45517-MA5-671

$29.30

11

DIAPHRAGM | Use up to Frame SN 4115008 This part replaces 45520-422-006.

45520-422-026

Unavailable

11

DIAPHRAGM | Use up to Frame SN 4115008 This part replaces 45520-422-016.

45520-422-026

Unavailable

11

DIAPHRAGM | Use up to Frame SN 4115008

45520-422-026

Unavailable

11

DIAPHRAGM

45520-422-026

Unavailable

12

PLATE, DIAPHRAGM

45521-422-006

Unavailable

13

BOOT, MASTER CYLINDER

45522-422-000

$8.68

14

MASTER CYLINDER SET, FR. This part replaces 45530-422-305.

45530-463-305

Unavailable

14

MASTER CYLINDER SET, FR.

45530-463-305

Unavailable

15

WASHER, STOPPER BOLT (NOT AVAILABLE)

46138-568-671

Unavailable

16

LEVER, R. HANDLEBAR This part replaces 53175-422-000.

53175-438-010

Unavailable

16

LEVER, R. HANDLEBAR This part replaces 53175-438-000.

53175-438-010

Unavailable

16

LEVER, R. HANDLEBAR

53175-438-010

Unavailable

17

BOLT, SEALING (NISSHIN) (NOT AVAILABLE)

90105-371-003

Unavailable

18

BOLT, R. HANDLEBAR CONTROL LEVER PIVOT

90114-422-000

Unavailable

19

SCREW, CAP (4X35) | Use from Frame SN 4115009

90137-422-006

$3.30

19

BOLT, OIL This part replaces 90145-300-000.

90145-300-010

$9.68

19

BOLT, OIL

90145-300-010

$9.68

20

SCREW, PAN (4X13.5) (NOT AVAILABLE)

90183-422-000

Unavailable

21

WASHER, OIL BOLT

90545-300-000

$3.99

22

BOLT-WASHER (6X25)

93401-06025-07

Unavailable

22

BOLT-WASHER (6X25) This part replaces 93481-06025-07.

93401-06025-07

Unavailable

23

SCREW, FLAT (4X37) | Use up to Frame SN 4115008

93600-04037-1G

$1.49

24

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

24

NUT, HEX. (6MM)

94002-06000-0S

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

25

WASHER, PLAIN (6MM)

94101-06800

$1.49

26

WASHER, SPRING (4MM)

94111-04000

$1.49
