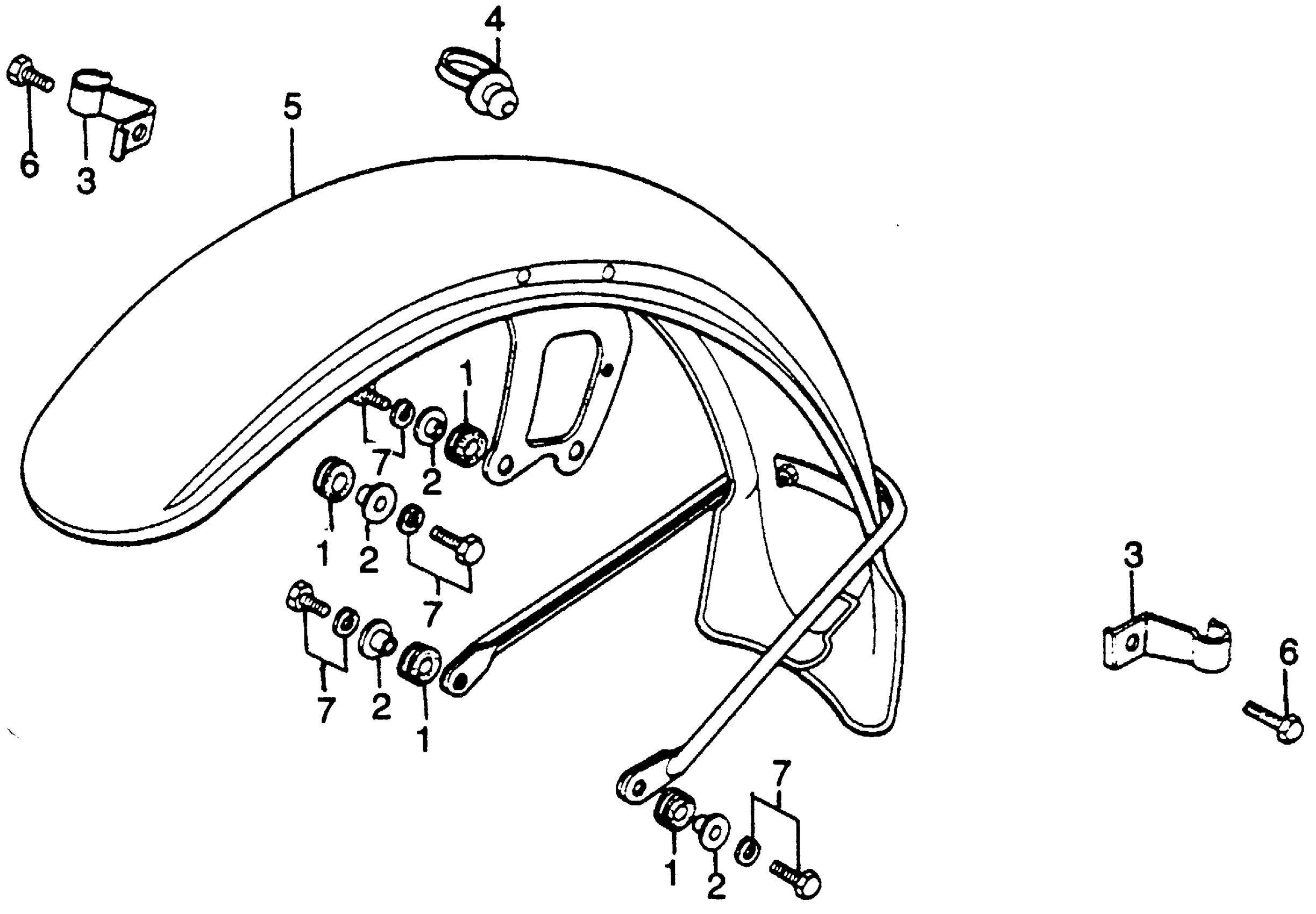

Honda GL1000A (79) GOLD WING, JPN, VIN# GL1-4100003 FRONT FENDER Diagram

#

Description

Price

1

RUBBER, CHAIN CASE SETTING

40513-310-000

$2.47

2

COLLAR, CHAIN CASE

40514-310-000

$5.99

3

CLAMP, BRAKE HOSE (NOT AVAILABLE)

45147-371-010

Unavailable

4

GROMMET, CABLE

45451-367-690

$3.86

5

FENDER, FR. (NOT AVAILABLE)

61100-431-670

Unavailable

6

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.41

6

BOLT, HEX. (6X10)

92101-06010-0A

$1.41

7

BOLT-WASHER (6X20) (NOT AVAILABLE)

93482-06020-00

Unavailable
