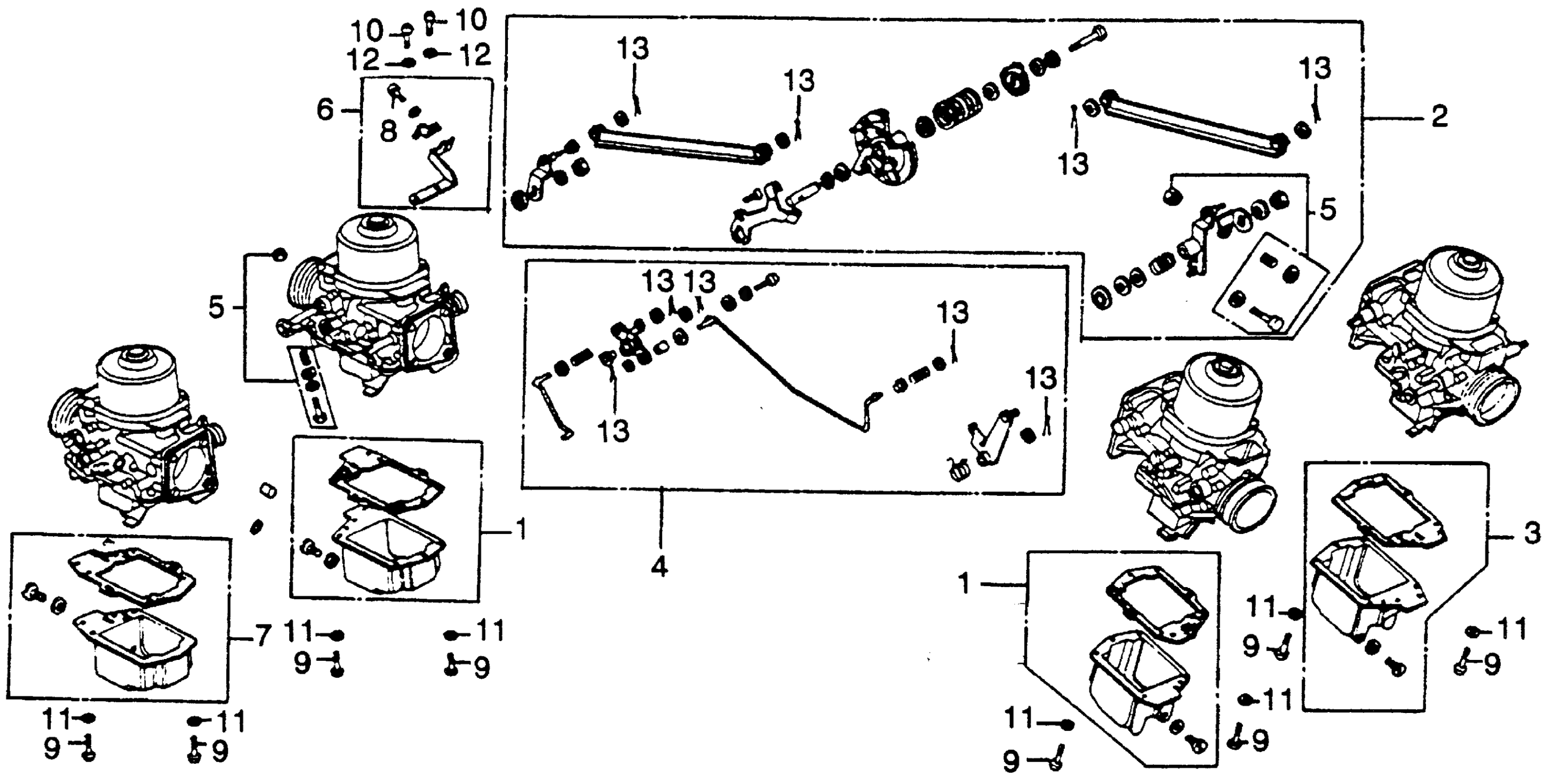

Honda GL1000A (79) GOLD WING, JPN, VIN# GL1-4100003 CARBURETOR COMPONENTS II Diagram

#

Description
Price

1

CHAMBER SET A, FLOAT (NOT AVAILABLE)

16015-371-004

Unavailable

2

LINK SET

16017-371-771

Unavailable

3

CHAMBER SET B, FLOAT (NOT AVAILABLE)

16023-371-004

Unavailable

4

ROD SET, CHOKE (NOT AVAILABLE)

16025-371-771

Unavailable

5

SCREW SET B

16028-371-004

Unavailable

6

PLATE SET, STAY (NOT AVAILABLE)

16035-371-004

Unavailable

7

CHAMBER SET C, FLOAT (NOT AVAILABLE)

16045-371-004

Unavailable

8

SCREW, PAN (4X10)

93500-04010-0A

$1.49

9

SCREW, PAN (4X14)

93500-04014-0A

$1.49

10

SCREW, PAN (5X12)

93500-05012-0A

$1.49

11

WASHER, SPRING (4MM)

94111-04000

$1.49

12

WASHER, SPRING (5MM)

94111-05000

$1.49

13

PIN, SPLIT (1.0MM) This part replaces 94201-10080.

94201-10150

$1.49

13

PIN, SPLIT (1.0MM) This part replaces 94201-10100.

94201-10150

$1.49

13

PIN, SPLIT (1.0MM)

94201-10150

$1.49
