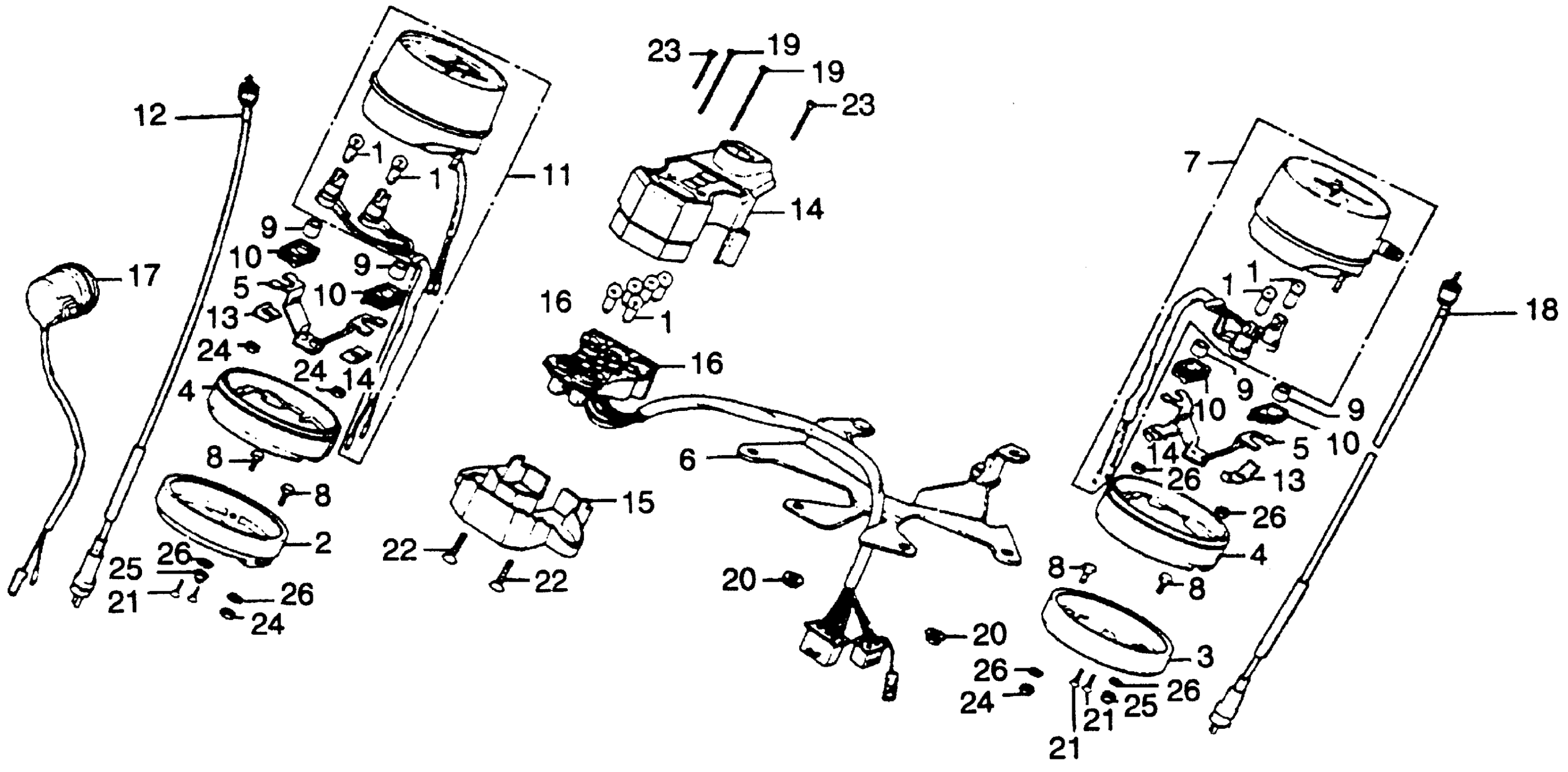

Honda GL1000A (78) GOLD WING, JPN, VIN# GL1-4000001 SPEEDOMETER + TACHOMETER Diagram

#

Description
Price

NI

LABEL, BREAK IN CAUTION (NOT AVAILABLE)

87523-410-790

Unavailable

1

BULB, DASH (12V3.4W) (IMASEN)

34902-259-000

$2.18

2

RING, R. METER SETTING (NOT AVAILABLE)

37111-371-008

Unavailable

3

RING, L. METER SETTING (NOT AVAILABLE)

37112-371-008

Unavailable

4

CUSHION, METER SETTING (NOT AVAILABLE)

37115-371-000

Unavailable

5

PLATE, METER RING SETTING

37116-371-000

Unavailable

6

STAY, METER SETTING

37120-431-000

Unavailable

7

SPEEDOMETER ASSY.

37200-431-671

Unavailable

8

BOLT, INSTRUMENT SETTING (6MM) (NOT AVAILABLE)

37238-323-700

Unavailable

9

COLLAR, METER SETTING (NOT AVAILABLE)

37243-371-008

Unavailable

10

RUBBER, METER SETTING (NOT AVAILABLE)

37244-371-008

Unavailable

11

TACHOMETER ASSY. This part replaces 37250-431-007.

37250-431-662

Unavailable

11

TACHOMETER ASSY. This part replaces 37250-431-661.

37250-431-662

Unavailable

12

CABLE ASSY., TACHOMETER

37260-371-000

Unavailable

13

WASHER, METER SETTING (NOT AVAILABLE)

37314-371-008

Unavailable

14

COVER, PILOT (UPPER) (NOT AVAILABLE)

37610-371-680

Unavailable

15

COVER, PILOT (LOWER) (NIPPON SEIKI) (NOT AVAILABLE)

37617-371-008

Unavailable

16

WIRE, PILOT

37619-431-007

Unavailable

17

BUZZER ASSY., TURN SIGNAL (NOT AVAILABLE)

38400-431-000

Unavailable

18

CABLE ASSY., SPEEDOMETER This part replaces 44830-MA1-730.

44830-426-830

$25.47

18

CABLE ASSY., SPEEDOMETER This part replaces 44830-MC0-670.

44830-426-830

$25.47

18

CABLE ASSY., SPEEDOMETER This part replaces 44830-300-672.

44830-426-830

$25.47

18

CABLE ASSY., SPEEDOMETER This part replaces 44830-356-000.

44830-426-830

$25.47

18

CABLE ASSY., SPEEDOMETER This part replaces 44830-392-000.

44830-426-830

$25.47

18

CABLE ASSY., SPEEDOMETER

44830-426-830

$25.47

18

CABLE ASSY., SPEEDOMETER This part replaces 44830-431-670.

44830-426-830

$25.47

19

SCREW, OVAL (4X70) (NOT AVAILABLE)

90106-371-000

Unavailable

20

NUT, HEX. (8MM)

90309-357-000

$3.40

21

SCREW, OVAL (4X8)

93700-04008-0B

$1.49

22

SCREW, OVAL (4X18) (SOURCE: VINTAGE PARTS INC.)

93700-04018-0B

Unavailable

23

SCREW, OVAL (4X30) (NOT AVAILABLE)

93700-04030-0G

Unavailable

24

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM)

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

25

NUT, CAP (6MM) This part replaces 94021-06000.

94021-06020

$1.73

25

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$1.73

25

NUT, CAP (6MM)

94021-06020

$1.73

25

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

25

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73

26

WASHER, SPRING (6MM)

94111-06000

$1.49
