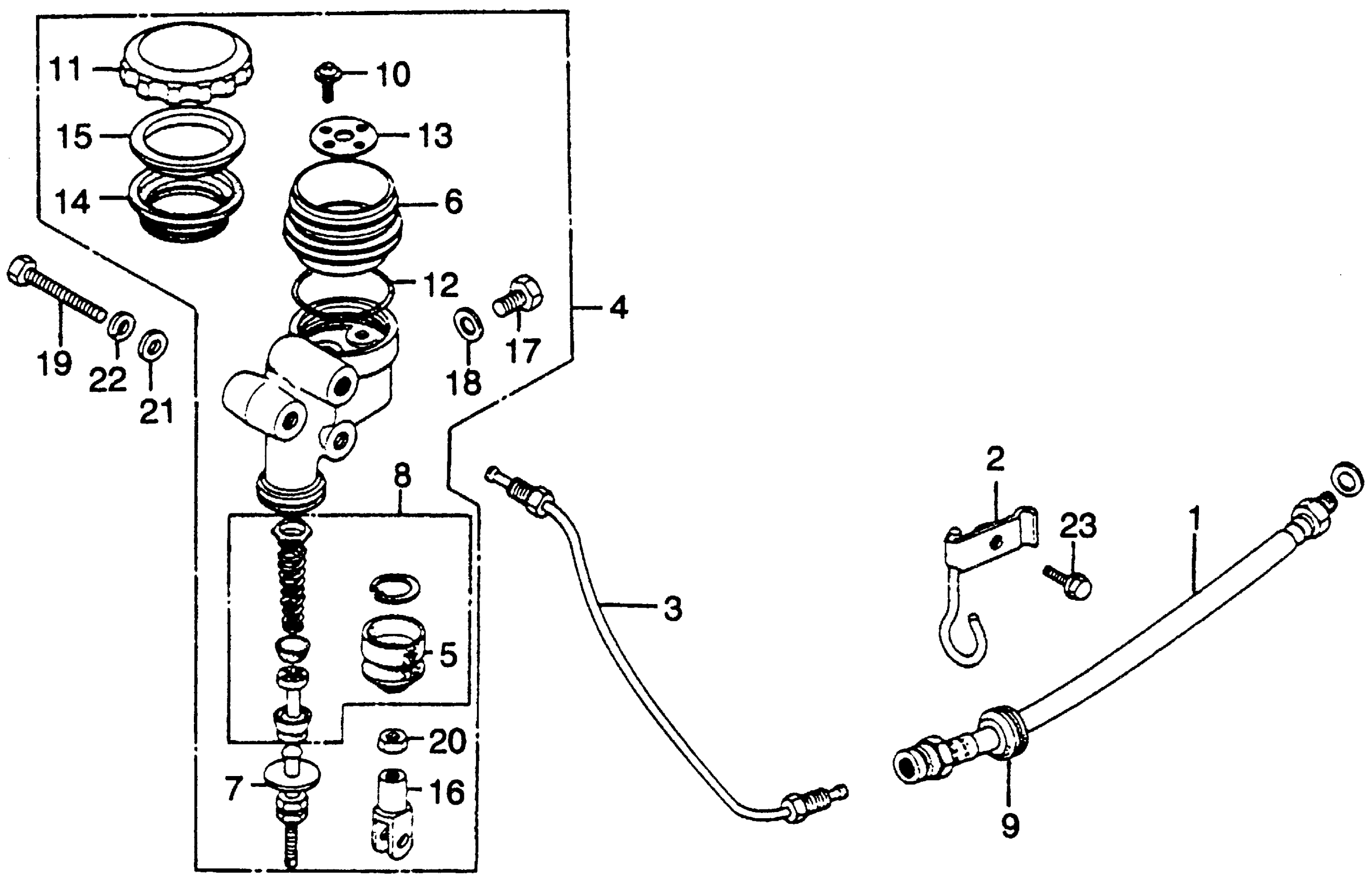

Honda GL1000A (78) GOLD WING, JPN, VIN# GL1-4000001 REAR MASTER CYLINDER Diagram

HOSE, RR. BRAKE (NOT AVAILABLE)

43310-431-671

Unavailable

CLIP, RR. BRAKE HOSE (NOT AVAILABLE)

43415-371-000

Unavailable

PIPE, RR. BRAKE (NOT AVAILABLE)

43420-371-000

Unavailable

MASTER CYLINDER ASSY., RR. (NISSHIN) (NOT AVAILABLE) | Use up to Frame SN 4054682 This part replaces 43500-431-671.

43500-431-672

Unavailable

MASTER CYLINDER ASSY., RR. (NISSHIN) (NOT AVAILABLE)

43500-431-672

Unavailable

BOOT, MASTER CYLINDER (NOT AVAILABLE) | Use up to Frame SN 4054682

43504-371-003

Unavailable

BOOT, MASTER CYLINDER | Use from Frame SN 4054683

43504-371-013

$9.54

CUP, OIL (NOT AVAILABLE)

43511-371-003

Unavailable

ROD, PUSH (NISSHIN) (NOT AVAILABLE)

43530-392-003

Unavailable

MASTER CYLINDER SET, RR.

43530-410-305

Unavailable

GROMMET, BRAKE HOSE

45146-300-000

$4.24

SCREW, OIL CUP (NOT AVAILABLE)

45509-371-000

Unavailable

CAP, OIL CUP

43513-MJ6-006

Unavailable

CAP, OIL CUP This part replaces 43513-461-771.

43513-MJ6-006

Unavailable

CAP, OIL CUP This part replaces 45513-341-771.

43513-MJ6-006

Unavailable

O-RING (43.7X2.5)

45516-371-003

Unavailable

PLATE, OIL CUP (NOT AVAILABLE)

45518-371-003

Unavailable

DIAPHRAGM

45520-300-000

$9.05

PLATE, DIAPHRAGM

45521-MJ6-006

$4.06

PLATE, DIAPHRAGM This part replaces 45521-300-010.

45521-MJ6-006

$4.06

JOINT, BRAKE ROD (NOT AVAILABLE)

46504-371-000

Unavailable

BOLT, PLUG (NOT AVAILABLE)

90161-371-003

Unavailable

WASHER, OIL BOLT

90545-300-000

$3.99

BOLT, HEX. (8X45) (NOT AVAILABLE)

92000-08045-0B

Unavailable

NUT, HEX. (8MM)

94001-08000-0S

$1.49

WASHER, PLAIN (8MM)

94101-08000

$1.49

WASHER, SPRING (8MM)

94111-08000

$1.49

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
