REAR BRAKE CALIPER

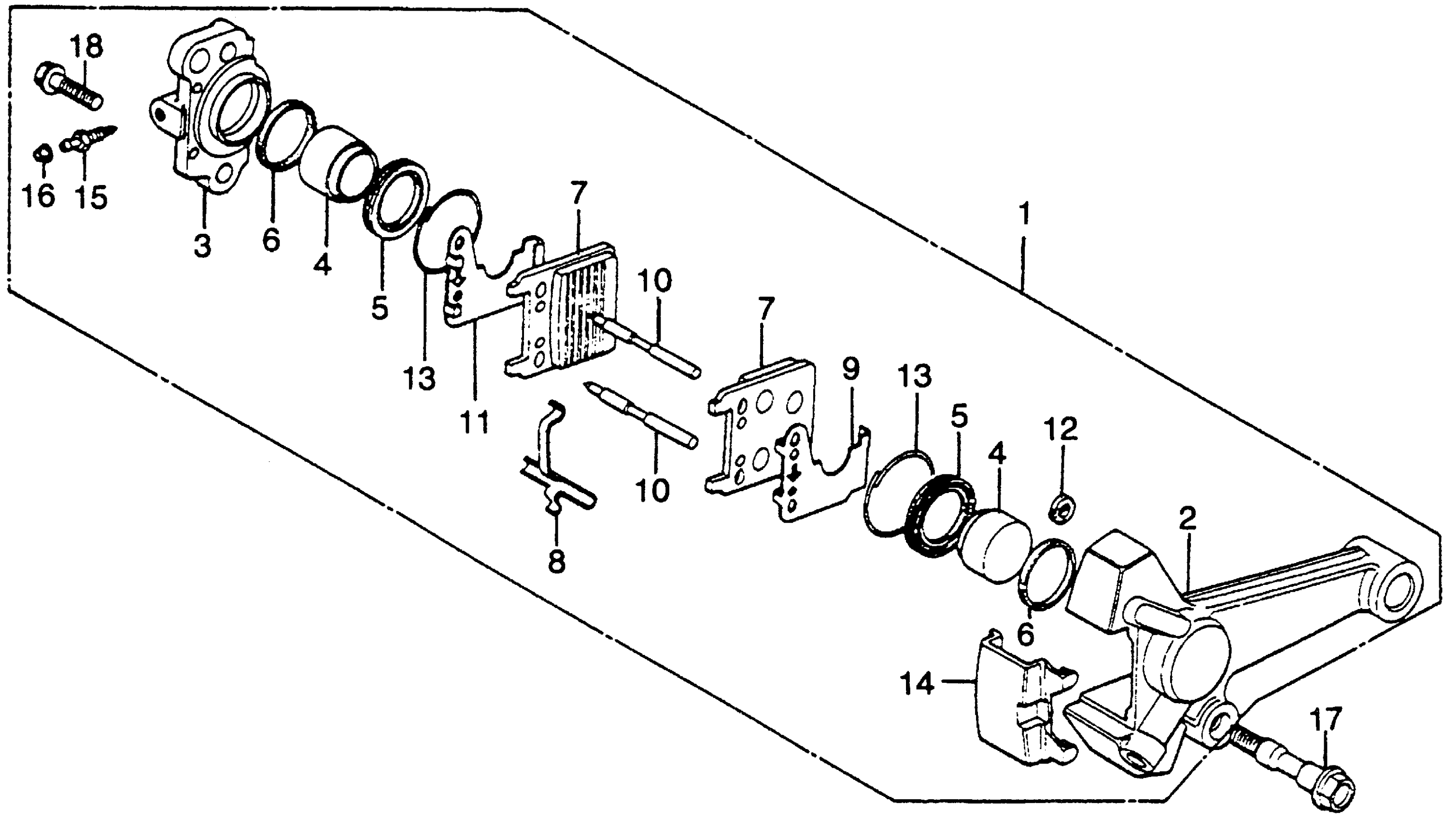

Honda GL1000A (78) GOLD WING, JPN, VIN# GL1-4000001 REAR BRAKE CALIPER Diagram
#
Description
Price
NI
PAD SET, BRAKE
06435-431-405
Unavailable
NI
PAD SET, BRAKE This part replaces 431A0-431-673.
06435-431-405
Unavailable
1
CALIPER ASSY., RR. (NISSHIN) (NOT AVAILABLE) | Use up to Frame SN 4005844 This part replaces 43200-431-671.
43200-431-673
Unavailable
1
CALIPER ASSY., RR. (NISSHIN) (NOT AVAILABLE) | Use up to Frame SN 4052621 This part replaces 43200-431-672.
43200-431-673
Unavailable
1
CALIPER ASSY., RR. (NISSHIN) (NOT AVAILABLE)
43200-431-673
Unavailable
2
CALIPER A (NOT AVAILABLE)
43201-431-671
Unavailable
3
CALIPER B (NOT AVAILABLE)
43202-431-671
Unavailable
4
PISTON (NOT AVAILABLE)
43205-431-671
Unavailable
7
PAD, RR. BRAKE (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) | Use up to Frame SN 4005844 This part replaces 43211-431-671.
43211-431-673
Unavailable
7
PAD, RR. BRAKE (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) | Use up to Frame SN 4052621 This part replaces 43211-431-672.
43211-431-673
Unavailable
7
PAD, RR. BRAKE (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)
43211-431-673
Unavailable
8
SPRING, PAD SETTING (NISSHIN) (NOT AVAILABLE)
43213-371-006
Unavailable
9
SHIM A, PAD (NOT AVAILABLE)
43214-431-671
Unavailable
10
PIN, PAD (NOT AVAILABLE)
43215-431-671
Unavailable
11
SHIM B, PAD (NOT AVAILABLE)
43216-431-671
Unavailable
12
SEAL, JOINT (NISSHIN)
43217-371-006
Unavailable
14
COVER, PAD (NOT AVAILABLE)
43241-431-671
Unavailable
17
BOLT (12X60) (NOT AVAILABLE)
90131-371-000
Unavailable
