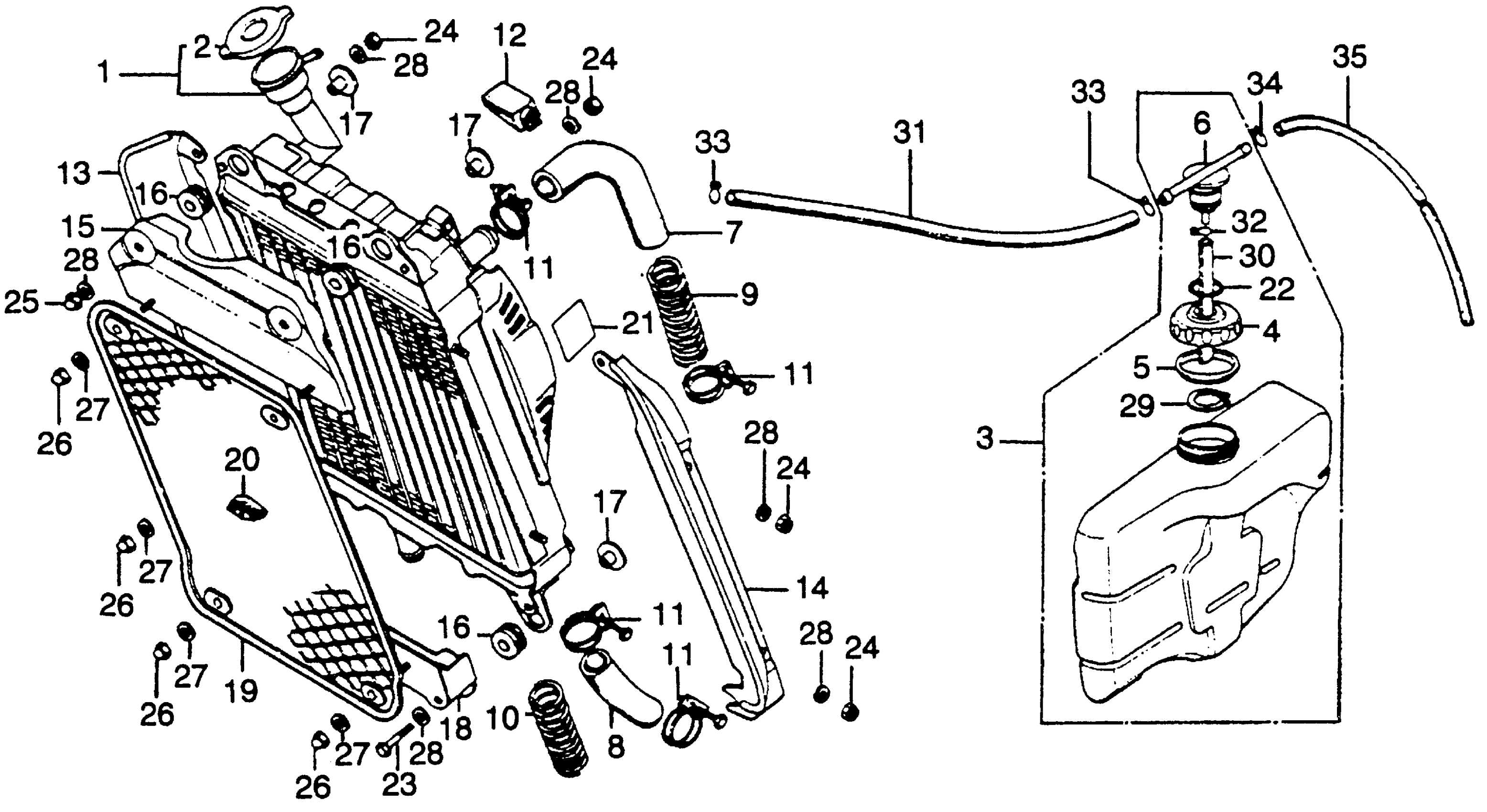

Honda GL1000A (78) GOLD WING, JPN, VIN# GL1-4000001 RADIATOR + RESERVE TANK Diagram

#

Description
Price

1

RADIATOR (NOT AVAILABLE) This part replaces 19010-371-003.

19010-371-980

Unavailable

2

CAP, RADIATOR (DENSO) This part replaces 19045-PA0-014.

19045-692-003

$37.56

2

CAP, RADIATOR (DENSO) This part replaces 19045-634-003.

19045-692-003

$37.56

2

CAP, RADIATOR (DENSO)

19045-692-003

$37.56

3

TANK ASSY., RESERVE (NOT AVAILABLE)

19101-431-670

Unavailable

4

CAP, RESERVE TANK (NOT AVAILABLE)

19104-371-000

Unavailable

5

GASKET, RESERVE TANK (NOT AVAILABLE)

19105-371-000

Unavailable

6

JOINT, RESERVE TANK (NOT AVAILABLE)

19107-371-000

Unavailable

7

HOSE, WATER (UPPER)

19501-431-000

Unavailable

8

HOSE, WATER (LOWER)

19502-431-000

Unavailable

9

GUARD A, WIRE (NOT AVAILABLE) This part replaces 19511-371-000.

19511-371-980

Unavailable

10

GUARD B, WIRE (NOT AVAILABLE) This part replaces 19512-371-000.

19512-371-980

Unavailable

11

BAND A, HOSE

19515-431-003

Unavailable

12

COVER, HOSE BAND

19519-431-000

Unavailable

13

COVER, R. RADIATOR *R7CC* (CANDY LIMITED MAROON CUSTOM) (NOT AVAILABLE)

85103-431-670ZA

Unavailable

13

COVER, R. RADIATOR *PB102CS* (CANDY GRANDEUR BLUE) (NOT AVAILABLE)

85103-431-670ZB

Unavailable

13

COVER, R. RADIATOR *NH1* (BLACK) (NOT AVAILABLE)

85103-431-670ZC

Unavailable

14

COVER, L. RADIATOR *R7CC* (CANDY LIMITED MAROON CUSTOM) (NOT AVAILABLE)

85123-431-670ZA

Unavailable

14

COVER, L. RADIATOR *PB102CS* (CANDY GRANDEUR BLUE) (NOT AVAILABLE)

85123-431-670ZB

Unavailable

14

COVER, L. RADIATOR *NH1* (BLACK) (NOT AVAILABLE)

85123-431-670ZC

Unavailable

15

COVER, RADIATOR (UPPER) (NOT AVAILABLE) This part replaces 85200-371-000.

85200-371-980

Unavailable

15

COVER, RADIATOR (UPPER) (NOT AVAILABLE)

85200-371-980

Unavailable

16

RUBBER, RADIATOR SETTING (NOT AVAILABLE)

85201-371-000

Unavailable

17

COLLAR, RADIATOR SETTING (NOT AVAILABLE)

85202-371-000

Unavailable

18

COVER, RADIATOR (LOWER) (NOT AVAILABLE)

85300-371-000

Unavailable

19

GRILLE, RADIATOR (NOT AVAILABLE)

85400-371-000

Unavailable

20

GROMMET, RADIATOR GRILLE (NOT AVAILABLE)

85401-371-000

Unavailable

21

LABEL, SHROUD FAN

87509-371-670

Unavailable

22

O-RING (15X2.5)

91301-MY9-003

$2.28

22

O-RING (15X2.5) This part replaces 91302-028-000.

91301-MY9-003

$2.28

23

BOLT, HEX. (6X25) This part replaces 92000-06025-0G.

92101-06025-0G

Unavailable

23

BOLT, HEX. (6X25) This part replaces 92000-06025-07.

92101-06025-0G

Unavailable

23

BOLT, HEX. (6X25)

92101-06025-0G

Unavailable

24

NUT, HEX. (6MM) This part replaces 94002-06070.

94002-06070-0S

$1.49

24

NUT, HEX. (6MM)

94002-06070-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94002-06270-0S.

94002-06070-0S

$1.49

25

NUT, CAP (6MM) This part replaces 90301-KW8-900.

94021-06070-0S

$1.62

25

NUT, CAP (6MM) This part replaces 94021-06070.

94021-06070-0S

$1.62

25

NUT, CAP (6MM)

94021-06070-0S

$1.62

26

NUT, CAP (6MM) This part replaces 94021-06220.

94021-06220-0S

$1.61

26

NUT, CAP (6MM)

94021-06220-0S

$1.61

27

WASHER, PLAIN (6MM)

94101-06200

$1.49

28

WASHER, PLAIN (6MM)

94101-06700

$1.49

29

CIRCLIP (OUTER) (18MM) (NOT AVAILABLE)

94511-18000

Unavailable

30

BULK HOSE, FUEL (7.5X8000) (7.5X110)

95001-75008-60M

$103.82

31

BULK HOSE, FUEL (8X1000) (8X300)

95001-80001-60M

$23.91

32

CLIP, TUBE (B12)

95002-02120

$2.00

33

CLIP, TUBE (B12.5)

95002-02130

$1.49

34

CLIP, TUBE (C9)

95002-50000

$1.49

35

BULK HOSE, VINYL (6X9X1000) (6X9X1030)

95003-14001-10M

$3.30
