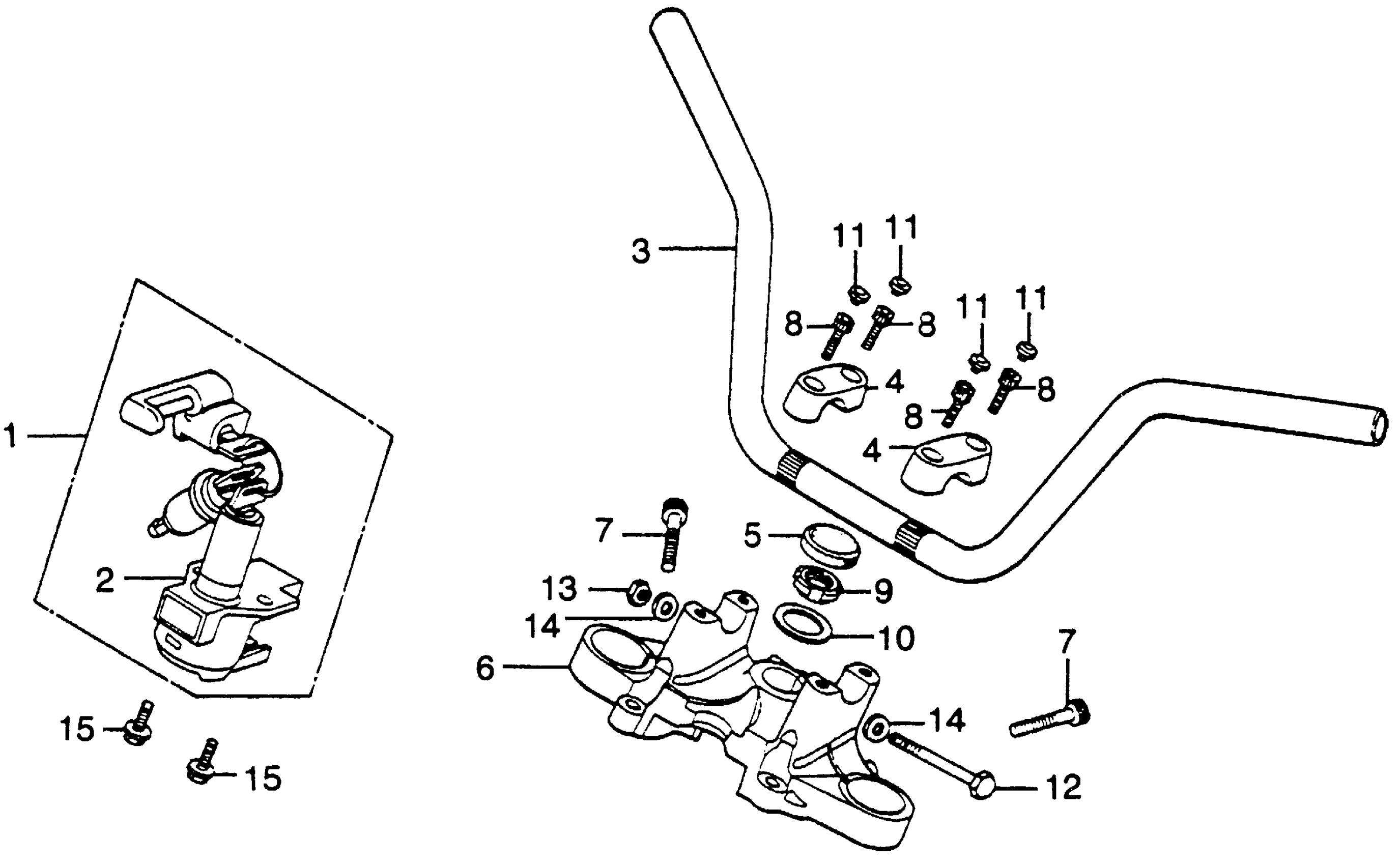

Honda GL1000A (78) GOLD WING, JPN, VIN# GL1-4000001 HANDLEBAR + KEY SET Diagram

#

Description
Price

1

LOCK SET (NOT AVAILABLE) This part replaces 35010-431-010.

35010-431-020

Unavailable

1

LOCK SET (NOT AVAILABLE)

35010-431-020

Unavailable

2

SWITCH ASSY., COMBINATION This part replaces 35100-431-007.

35100-431-047

Unavailable

2

SWITCH ASSY., COMBINATION This part replaces 35100-431-017.

35100-431-047

Unavailable

2

SWITCH ASSY., COMBINATION This part replaces 35100-431-027.

35100-431-047

Unavailable

2

SWITCH ASSY., COMBINATION This part replaces 35100-431-037.

35100-431-047

Unavailable

2

SWITCH ASSY., COMBINATION

35100-431-047

Unavailable

3

HANDLEBAR (NOT AVAILABLE)

53100-431-670

Unavailable

4

HOLDER, HANDLE (UPPER)

53131-371-000

$32.20

5

CAP, STEERING STEM (NOT AVAILABLE)

53209-371-000

Unavailable

6

BRIDGE, FORK TOP *A01* (MAT BLACK) (NOT AVAILABLE)

53230-371-000ZA

Unavailable

7

BOLT, HEX. SOCKET (10X35) (NOT AVAILABLE) This part replaces 90180-371-000.

90180-371-980

Unavailable

8

BOLT, HEX. SOCKET (8X32)

90185-371-000

$6.28

9

NUT, STEERING STEM (NOT AVAILABLE)

90304-371-000

Unavailable

10

WASHER, STEERING STEM

90503-283-000

$4.37

11

CAP, SOCKET BOLT

91456-371-770

$3.47

12

BOLT, HEX. (8X65) This part replaces 92000-08065-0B.

92101-08065-0B

Unavailable

13

NUT, HEX. (8MM)

94001-08020-0S

$1.49

14

WASHER, PLAIN (8MM)

94101-08200

$1.49

15

BOLT, FLANGE (6X14) This part replaces 95700-06014-08.

95701-06014-08

$1.55

15

BOLT, FLANGE (6X14)

95701-06014-08

$1.55
