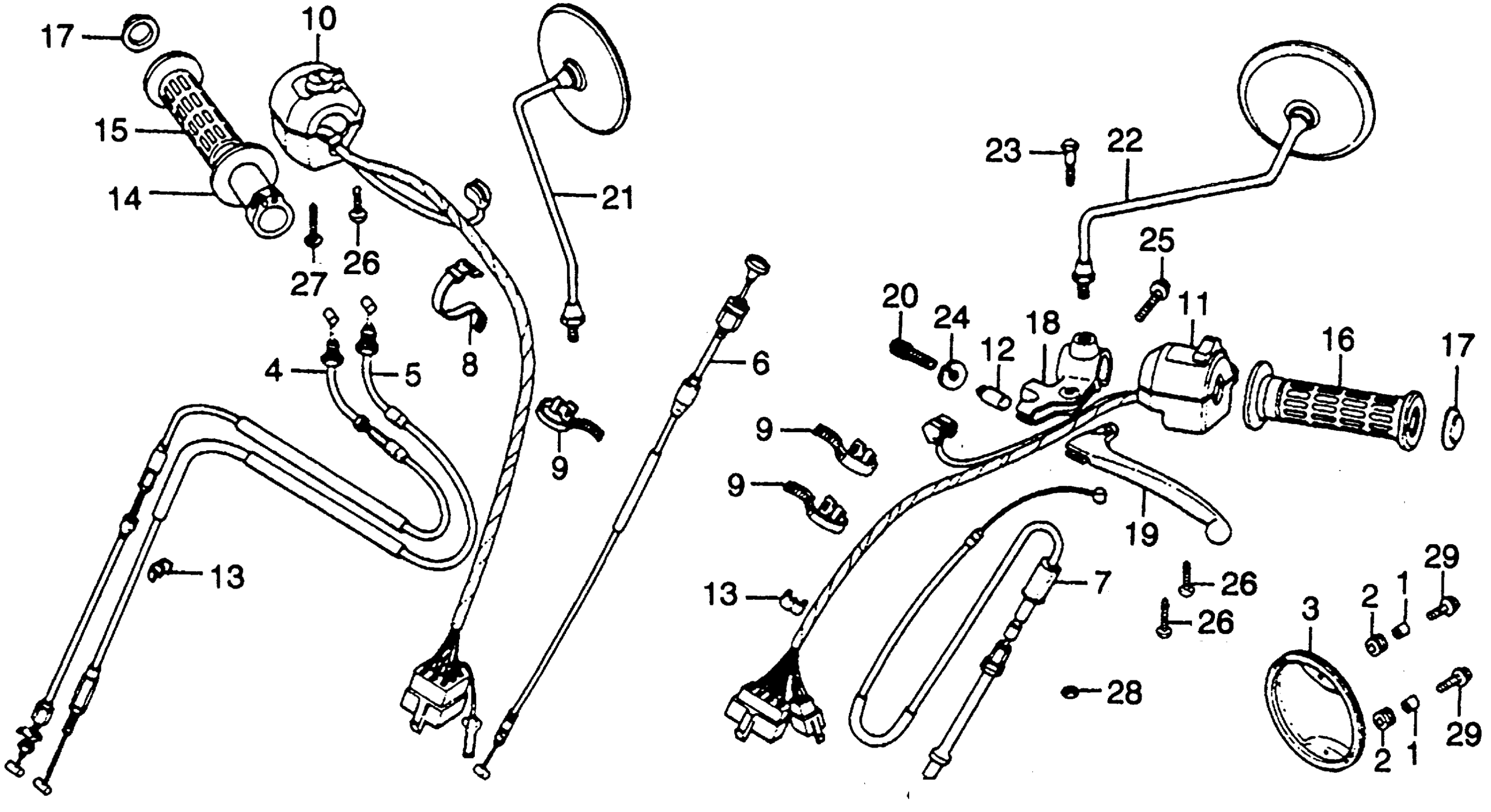

Honda GL1000A (78) GOLD WING, JPN, VIN# GL1-4000001 HANDLE LEVER + SWITCH + CABLE Diagram

#

Description
Price

NI

WASHER, PLAIN (6MM)

94101-06200

$1.49

1

COLLAR, ADJUSTING COVER

11346-371-300

$10.56

2

GROMMET, ADJUSTING COVER

11347-371-300

$1.95

3

COVER, CLUTCH ADJUST (NOT AVAILABLE)

11348-371-000

Unavailable

4

CABLE A, THROTTLE

17910-MB9-670

Unavailable

4

CABLE A, THROTTLE This part replaces 17910-371-660.

17910-MB9-670

Unavailable

5

CABLE B, THROTTLE This part replaces 17920-371-660.

17920-463-405

$40.34

5

CABLE B, THROTTLE

17920-463-405

$40.34

6

CABLE, CHOKE This part replaces 17950-371-000.

17950-371-010

Unavailable

6

CABLE, CHOKE

17950-371-010

Unavailable

7

CABLE, CLUTCH

22870-371-660

Unavailable

8

BAND B1, CABLE

32161-404-000

$2.23

9

BAND B1, CABLE

32161-404-610

$2.23

10

SWITCH ASSY., STARTING STOP (NOT AVAILABLE)

35130-431-671

Unavailable

11

SWITCH ASSY., TURN SIGNAL (NOT AVAILABLE) This part replaces 35200-431-671.

35200-431-781

Unavailable

12

SWITCH, FR. LEVER

35330-413-003

$21.91

13

CLIP, FR. BRAKE CABLE

45465-270-000

$4.94

13

CLIP, FR. BRAKE CABLE This part replaces 45465-341-700.

45465-270-000

$4.94

14

PIPE, THROTTLE GRIP

53141-300-010

$20.93

15

GRIP, R. HANDLEBAR This part replaces 53165-371-000.

53165-390-780

$10.88

15

GRIP, R. HANDLEBAR

53165-390-780

$10.88

16

GRIP, L. HANDLEBAR This part replaces 53166-371-000.

53166-390-780

$10.88

16

GRIP, L. HANDLEBAR

53166-390-780

$10.88

17

CAP, HANDLE END (NOT AVAILABLE)

53167-371-000

Unavailable

18

BRACKET, L. HANDLEBAR (NOT AVAILABLE)

53172-431-003

Unavailable

19

LEVER, L. HANDLE

53178-431-003

Unavailable

20

BOLT, CLUTCH CABLE ADJUSTING

53192-312-000

$7.91

21

MIRROR, R. (NOT AVAILABLE)

88100-371-660

Unavailable

22

MIRROR, L. (NOT AVAILABLE)

88120-371-660

Unavailable

23

BOLT, HANDLE LEVER PIVOT This part replaces 90114-268-020.

90114-310-000

$4.90

23

BOLT, HANDLEBAR LEVER PIVOT

90114-310-000

$4.90

24

NUT, FIXING

90321-315-670

$7.31

24

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

25

BOLT, HEX. (6X25) This part replaces 93000-06025-0B.

93101-06025-0B

$2.00

25

BOLT, HEX. (6X25) This part replaces 93000-06025-02.

93101-06025-0B

$2.00

25

BOLT, HEX. (6X25)

93101-06025-0B

$2.00

26

SCREW, PAN (5X25)

93500-05025-0A

$1.49

27

SCREW, PAN (5X35)

93500-05035-0A

$1.49

28

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

28

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

28

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

28

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

28

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

28

NUT, HEX. (6MM)

94001-06200-0S

$1.49

28

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

29

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

29

BOLT, FLANGE (6X16)

95701-06016-00

$1.55
