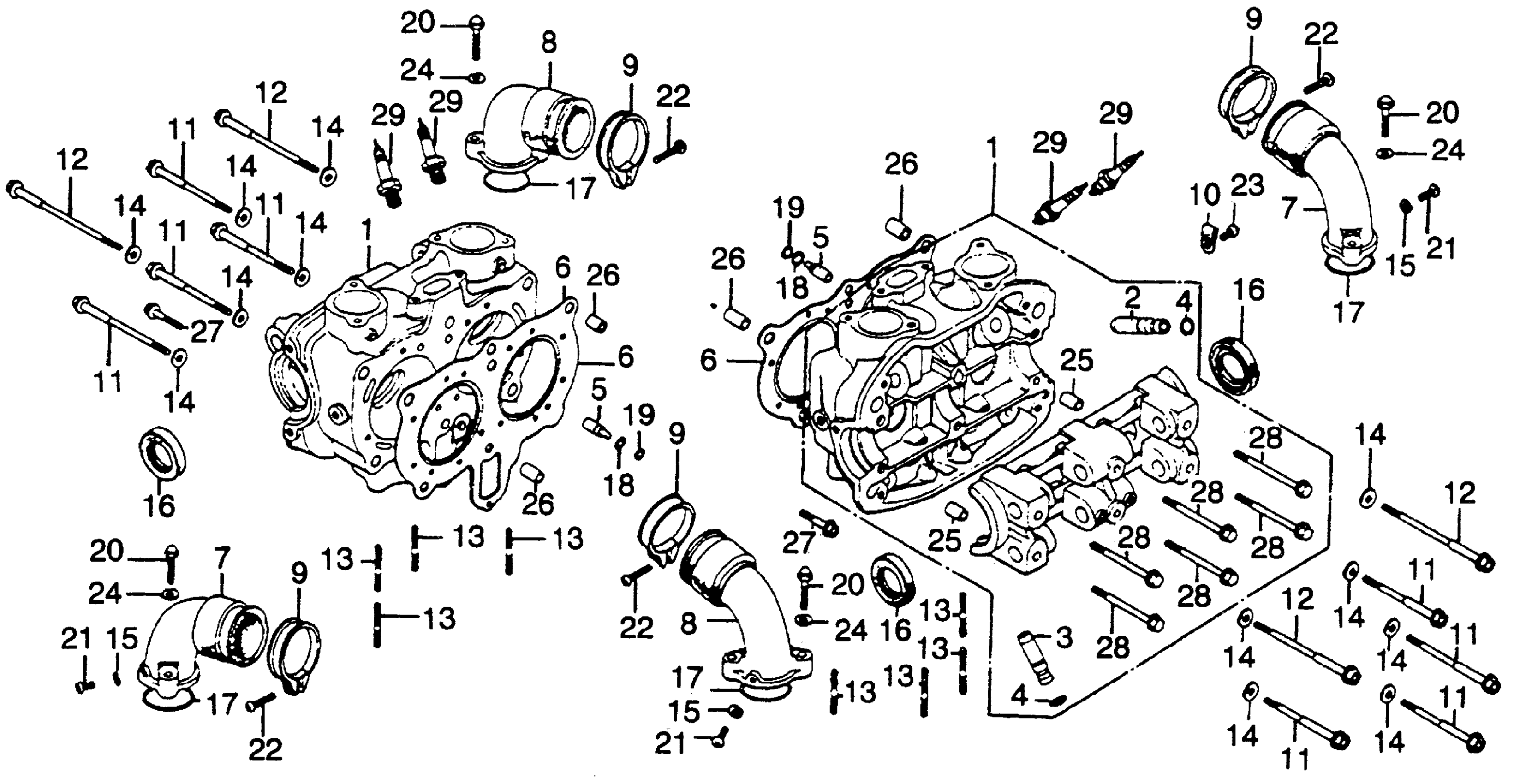

Honda GL1000A (78) GOLD WING, JPN, VIN# GL1-4000001 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD (NOT AVAILABLE)

12200-371-010

Unavailable

2

GUIDE, VALVE

12204-371-305

Unavailable

3

GUIDE, VALVE

12204-371-305

Unavailable

3

GUIDE, VALVE This part replaces 12205-371-305.

12204-371-305

Unavailable

4

CLIP, VALVE GUIDE

12211-250-310

$4.39

5

ORIFICE, OIL CONTROL

12238-371-000

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-371-003.

12251-371-306

Unavailable

6

GASKET, CYLINDER HEAD

12251-371-306

Unavailable

7

MANIFOLD A, IN. (NOT AVAILABLE) | Use up to Engine SN 4019000 This part replaces 17110-431-000.

17110-431-010

Unavailable

7

MANIFOLD A, IN. (NOT AVAILABLE) | Use up to Engine SN 4019000

17110-431-010

Unavailable

8

MANIFOLD B, IN. (NOT AVAILABLE) | Use up to Engine SN 4019000 This part replaces 17120-431-000.

17120-431-010

Unavailable

8

MANIFOLD B, IN. (NOT AVAILABLE) | Use up to Engine SN 4019000

17120-431-010

Unavailable

9

BAND, AIR CLEANER CONNECTING TUBE (54) This part replaces 17255-371-000.

95018-54250

$5.14

9

BAND, AIR CLEANER CONNECTING TUBE (54)

95018-54250

$5.14

10

CLAMP, CABLE

32111-323-000

$3.98

11

BOLT, FLANGE (10X90) This part replaces 90001-371-003.

90001-371-013

Unavailable

11

BOLT, FLANGE (10X90)

90001-371-013

Unavailable

12

BOLT, FLANGE (10X115) This part replaces 90002-371-003.

90002-371-013

Unavailable

12

BOLT, FLANGE (10X115)

90002-371-013

Unavailable

13

BOLT, STUD (8X43)

90035-371-000

$3.85

14

WASHER (21X11X2.3)

90438-634-000

Unavailable

15

WASHER, SEALING (5MM)

90452-323-000

$1.59

16

OIL SEAL (27X43X9)

91209-371-003

$17.60

17

O-RING (40X2.6)

91301-371-005

$4.65

18

O-RING (6.5X1.5)

91305-371-003

$2.91

19

O-RING (4.1X1.5)

91308-371-003

$4.83

20

BOLT, CAP (6X32)

92500-06032-0B

$3.67

21

SCREW, PAN (5X8)

93500-05008-0A

$1.49

22

SCREW, PAN (5X20)

93500-05020-0G

$1.49

23

SCREW, PAN (6X8) This part replaces 90053-371-980.

93500-06008-0H

$1.49

23

SCREW, PAN (6X8)

93500-06008

$1.49

23

SCREW, PAN (6X8)

93500-06008-0A

$1.49

23

SCREW, PAN (6X8)

93500-06008-0H

$1.49

23

SCREW, PAN (6X8) This part replaces 93500-06008-1H.

93500-06008-0H

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

24

WASHER, PLAIN (6MM)

94101-06800

$1.49

25

PIN A, DOWEL (10X16)

94301-10160

$2.28

26

PIN A, DOWEL (12X20)

94301-12200

$2.29

27

BOLT, FLANGE (6X28)

95700-06028-00

$1.73

27

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

28

BOLT, FLANGE (8X70) This part replaces 95700-08070-00.

95701-08070-00

$2.67

28

BOLT, FLANGE (8X70)

95701-08070-00

$2.67

29

SPARK PLUG (D8EA) (NGK)

98069-58717

$2.44

29

SPARK PLUG (X24ES-U) (DENSO)

98069-58727

$2.20
