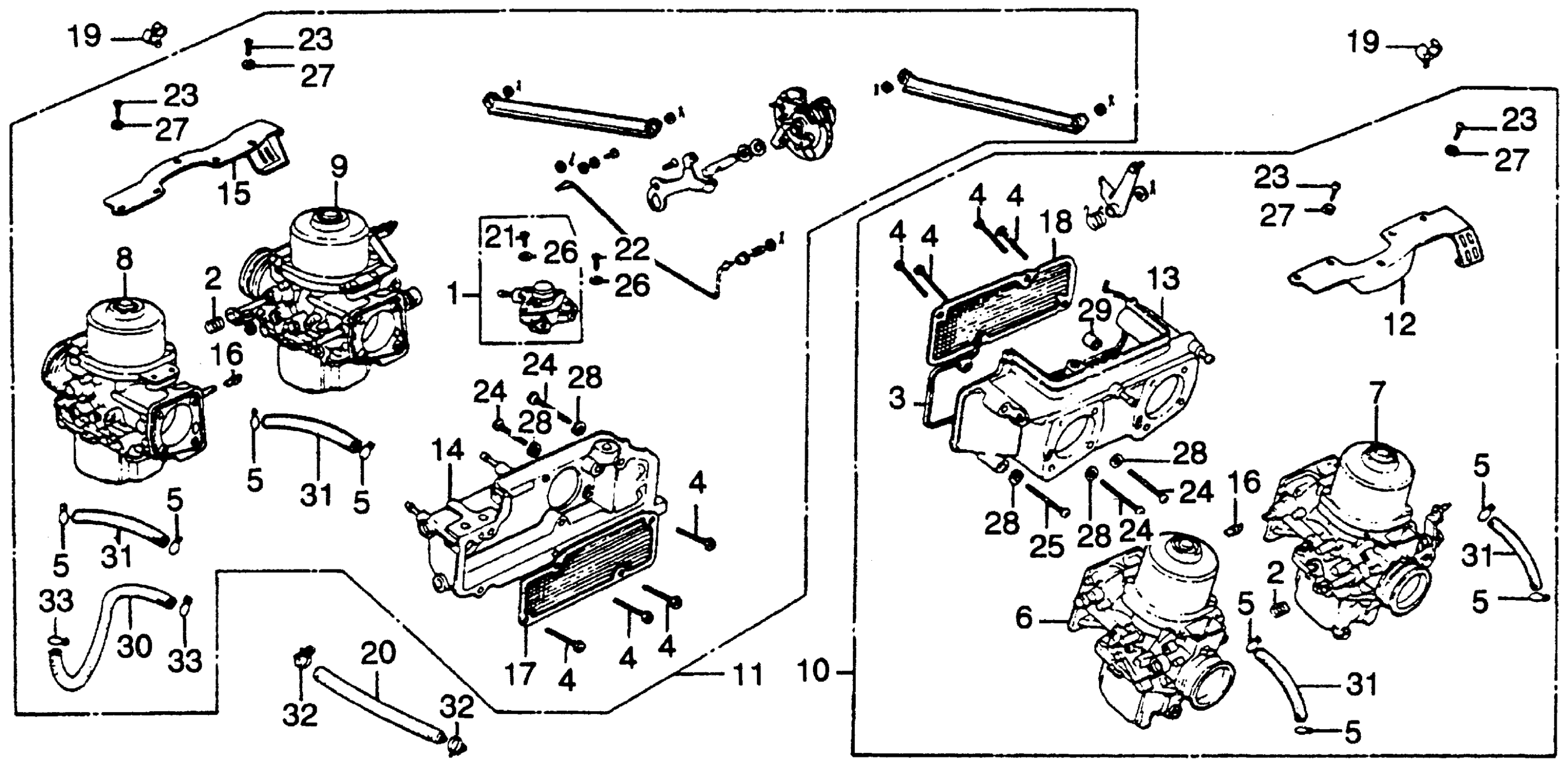

Honda GL1000A (78) GOLD WING, JPN, VIN# GL1-4000001 CARBURETOR Diagram
#
Description
Price
1
VALVE SET, AIR CUT (NOT AVAILABLE)
16048-371-004
Unavailable
2
SPRING, COIL (NOT AVAILABLE)
16051-371-771
Unavailable
3
GASKET, AIR CHAMBER
16075-371-004
Unavailable
4
BOLT, SPECIAL (6MM) (NOT AVAILABLE)
16080-371-004
Unavailable
6
CARBURETOR ASSY. 1, L. | Use up to Engine SN 769 A This part replaces 16101-431-004.
16101-431-014
Unavailable
6
CARBURETOR ASSY. 1, L. | Use up to Engine SN 769 A
16101-431-014
Unavailable
7
CARBURETOR ASSY. 2, L. | Use up to Engine SN 769 A This part replaces 16102-431-004.
16102-431-014
Unavailable
7
CARBURETOR ASSY. 2, L. | Use up to Engine SN 769 A
16102-431-014
Unavailable
8
CARBURETOR ASSY. 1, R. (NOT AVAILABLE) | Use up to Engine SN 769 A This part replaces 16103-431-004.
16103-431-014
Unavailable
8
CARBURETOR ASSY. 1, R. (NOT AVAILABLE) | Use up to Engine SN 769 A
16103-431-014
Unavailable
9
CARBURETOR ASSY. 2, R. (NOT AVAILABLE) | Use up to Engine SN 769 A This part replaces 16104-431-004.
16104-431-014
Unavailable
9
CARBURETOR ASSY. 2, R. (NOT AVAILABLE) | Use up to Engine SN 769 A
16104-431-014
Unavailable
10
CARBURETOR ASSY., L. (NOT AVAILABLE) | Use from Engine SN 771 B
16105-431-672
Unavailable
11
CARBURETOR ASSY., R. (NOT AVAILABLE)
16106-431-672
Unavailable
12
PLATE, L. STAY (NOT AVAILABLE)
16129-371-771
Unavailable
13
CHAMBER A, AIR
16157-371-771
Unavailable
14
CHAMBER B, AIR (NOT AVAILABLE)
16158-371-771
Unavailable
15
PLATE, R. STAY (NOT AVAILABLE)
16169-371-771
Unavailable
16
JOINT, CONNECTOR (NOT AVAILABLE)
16172-500-014
Unavailable
17
BODY B, FLAME TRAP (NOT AVAILABLE)
16196-371-004
Unavailable
18
BODY A, FLAME TRAP (NOT AVAILABLE)
16197-371-004
Unavailable
20
HOSE, FUEL (5.5X160) (NOT AVAILABLE)
91320-371-000
Unavailable
