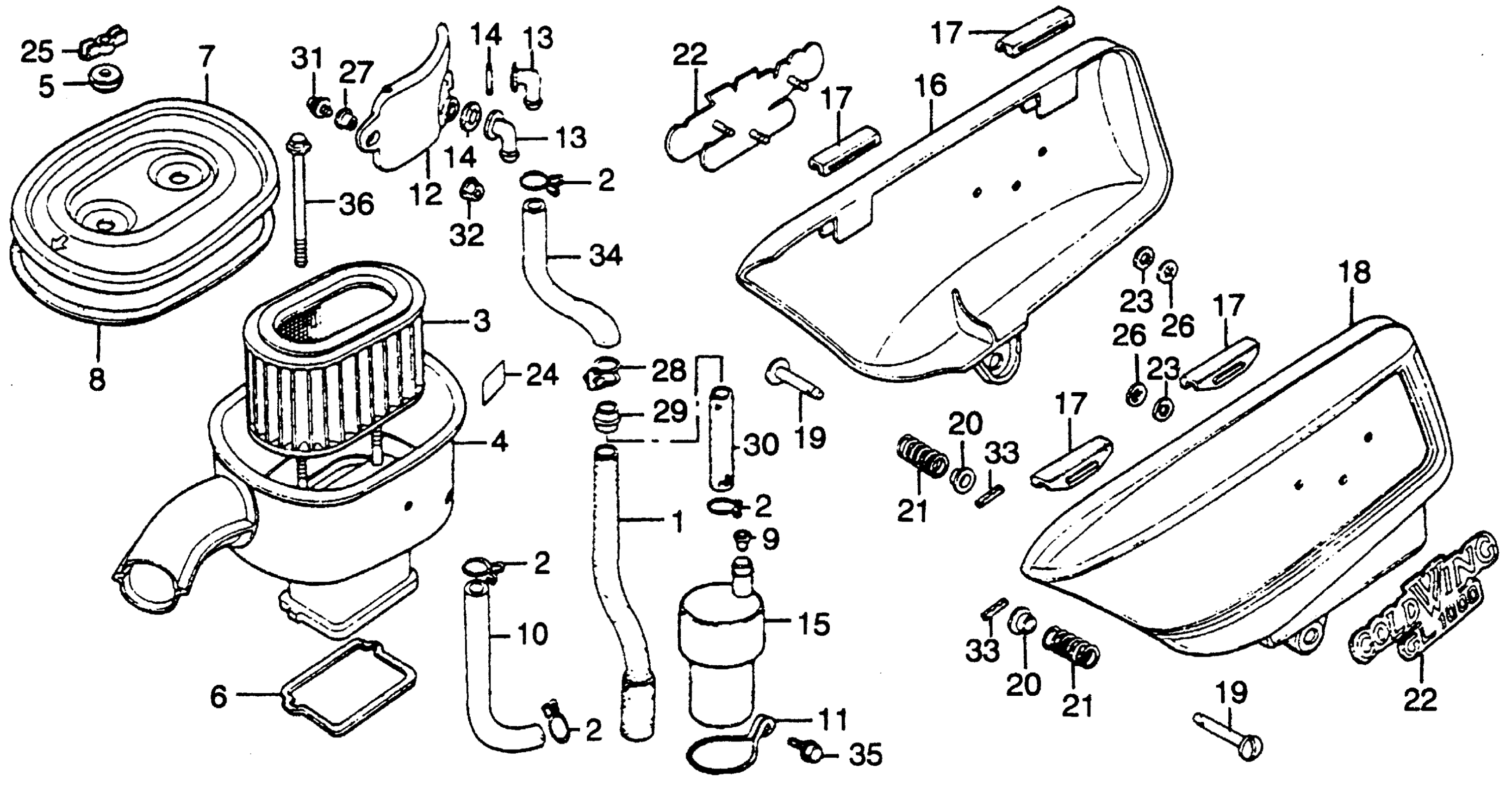

Honda GL1000A (78) GOLD WING, JPN, VIN# GL1-4000001 AIR CLEANER + SIDE COVER Diagram

#

Description
Price

1

TUBE, OIL DRAIN (NOT AVAILABLE)

15706-431-610

Unavailable

2

CLIP, BREATHER TUBE | Use up to Frame SN 4018926

15772-551-000

$2.05

2

CLIP, BREATHER TUBE | Use from Frame SN 4050002

15772-551-000

$2.05

2

CLIP, BREATHER TUBE (NOT AVAILABLE) | Use up to Frame SN 4018926

15772-551-680

$6.39

3

ELEMENT, AIR CLEANER

17211-431-671

Unavailable

3

ELEMENT, AIR CLEANER This part replaces 17211-431-672.

17211-431-671

Unavailable

4

HOUSING, AIR CLEANER (NOT AVAILABLE)

17212-431-670

Unavailable

5

WASHER, AIR CLEANER COVER

17212-611-000

$11.87

6

GASKET, AIR CLEANER (NOT AVAILABLE)

17221-371-000

Unavailable

7

COVER, AIR CLEANER (NOT AVAILABLE)

17231-371-010

Unavailable

8

GASKET, AIR CLEANER COVER (NOT AVAILABLE)

17232-371-310

Unavailable

9

VALVE, DRAIN (NOT AVAILABLE) | Use from Frame SN 4050002

17236-431-770

Unavailable

10

TUBE B, BREATHER (NOT AVAILABLE) This part replaces 17279-431-670.

17279-431-671

Unavailable

10

TUBE B, BREATHER (NOT AVAILABLE)

17279-431-671

Unavailable

11

HOLDER, STORAGE TANK (NOT AVAILABLE) | Use from Frame SN 4050002

17310-431-770

Unavailable

12

CHAMBER ASSY., CONDENSATION (NOT AVAILABLE)

17360-431-670

Unavailable

13

JOINT, AIR CLEANER (NOT AVAILABLE)

17363-431-670

Unavailable

14

GASKET, AIR CLEANER (NOT AVAILABLE)

17364-431-670

Unavailable

15

TANK, STORAGE (NOT AVAILABLE) | Use from Frame SN 4050002

17551-431-770

Unavailable

16

COVER, R. SIDE *R7CC* (CANDY LIMITED MAROON CUSTOM) (NOT AVAILABLE)

83601-431-670ZA

Unavailable

16

COVER, R. SIDE *PB102CS* (CANDY GRANDEUR BLUE) (NOT AVAILABLE)

83601-431-670ZB

Unavailable

17

RUBBER, SIDE COVER SETTING (NOT AVAILABLE)

83610-371-000

Unavailable

18

COVER, L. SIDE *R7CC* (CANDY LIMITED MAROON CUSTOM) (NOT AVAILABLE)

83701-431-670ZA

Unavailable

18

COVER, L. SIDE *PB102CS* (CANDY GRANDEUR BLUE) (NOT AVAILABLE)

83701-431-670ZB

Unavailable

18

COVER, L. SIDE *NH1* (BLACK) (NOT AVAILABLE)

83701-431-670ZC

Unavailable

19

PIN, SIDE COVER

83703-371-000

Unavailable

20

GUIDE, SPRING

83704-333-000

Unavailable

21

SPRING, SIDE COVER SETTING

83705-371-000

Unavailable

22

EMBLEM A, SIDE COVER

87130-431-670

Unavailable

23

RUBBER, RR. EMBLEM SETTING

87411-538-910

$7.16

24

MARK, PIPING CAUTION

87521-431-670

Unavailable

25

WINGNUT, AIR CLEANER COVER

90203-PB2-000

$6.56

25

NUT, AIR CLEANER COVER (DACRO COATING) This part replaces 90203-611-000.

90203-PB2-000

$6.56

26

NUT, SPEED (3MM)

90313-567-000

$3.97

27

WASHER (6X20)

90401-373-770

$5.16

28

CLIP, TUBE

91462-431-670

Unavailable

29

JOINT, TUBE

91463-393-780

$1.80

30

TUBE (11X50) (NOT AVAILABLE) | Use from Frame SN 4050002

91464-431-770

Unavailable

31

SCREW-WASHER (6X12)

93893-06012-08

$1.49

31

SCREW-WASHER (6X12) This part replaces 93893-06012-18.

93893-06012-08

$1.49

32

NUT, FLANGE (6MM)

94050-06000

$1.49

33

PIN, SPRING (2X14)

94305-20142

$1.49

34

BULK HOSE, VACUUM (12X1000) (12X550)

95005-12001-30M

$15.19

35

BOLT, FLANGE (6X12) | Use from Frame SN 4050002 This part replaces 95700-06012-00.

95701-06012-00

$1.62

35

BOLT, FLANGE (6X12) | Use from Frame SN 4050002

95701-06012-00

$1.62

36

BOLT, FLANGE (6X90) This part replaces 95700-06090-08.

95701-06090-08

$1.53

36

BOLT, FLANGE (6X90)

95701-06090-08

$1.53
