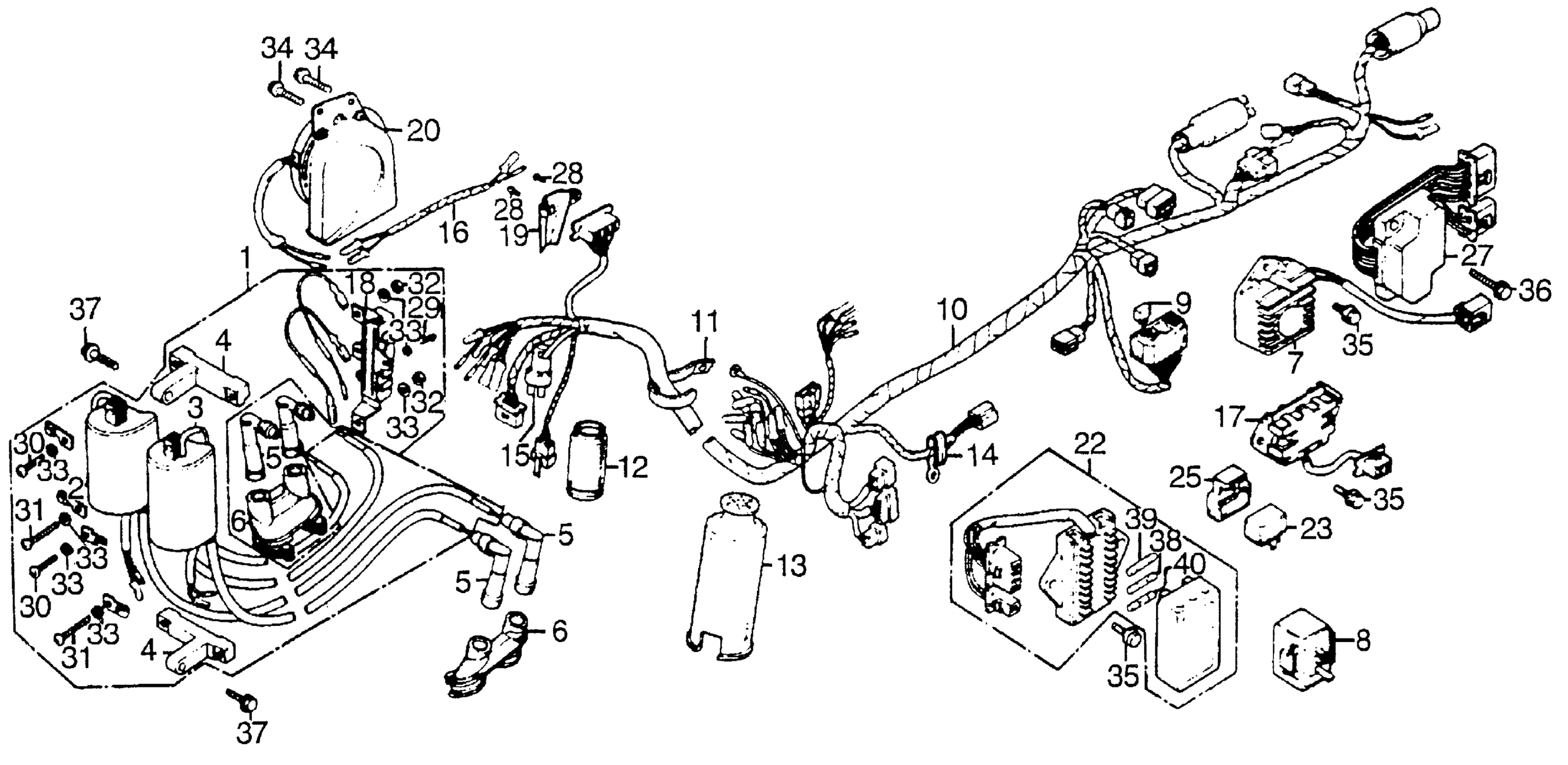

Honda GL1000A (77) GOLD WING, JPN, VIN# GL1-3000001 TO GL1-3025175 WIRE HARNESS + IGNITION COIL + HORN Diagram

#

Description
Price

1

COIL ASSY., IGNITION (TOYO) (NOT AVAILABLE)

30530-371-003

Unavailable

2

COIL, R. IGNITION (TOYO) (NOT AVAILABLE)

30501-371-003

Unavailable

3

COIL, L. IGNITION (TOYO) (NOT AVAILABLE)

30502-371-003

Unavailable

4

BRACKET, IGNITION COIL (NOT AVAILABLE)

30511-300-000

Unavailable

5

CAP ASSY., NOISE SUPPRESSOR

30700-MC8-000

Unavailable

5

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-390-163.

30700-MC8-000

Unavailable

5

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-371-153.

30700-MC8-000

Unavailable

5

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-371-163.

30700-MC8-000

Unavailable

5

CAP ASSY., NOISE SUPPRESSOR This part replaces 30701-371-000.

30700-MC8-000

Unavailable

6

SEAL, SUPPRESSOR This part replaces 30705-371-000.

30705-463-000

Unavailable

6

SEAL, SUPPRESSOR

30705-463-000

Unavailable

7

REGULATOR, POINTLESS (KOKUSAN) (NOT AVAILABLE)

31400-371-003

Unavailable

8

REGULATOR ASSY. (7V) (NOT AVAILABLE)

31410-371-007

Unavailable

8

REGULATOR ASSY. (7V) (NOT AVAILABLE) This part replaces 31410-371-008.

31410-371-007

Unavailable

9

RECTIFIER, SILICON (SHINDENGEN)

31710-371-008

$40.03

10

WIRE HARNESS (NOT AVAILABLE)

32100-371-670

Unavailable

11

CLAMP, WIRE HARNESS (NOT AVAILABLE)

32111-371-000

Unavailable

12

COVER, CONNECTOR SETTING

32138-371-000

Unavailable

13

COVER, CONNECTOR (NOT AVAILABLE)

32150-121-000

Unavailable

14

CLIP, WIRE HARNESS (NOT AVAILABLE)

32172-315-000

Unavailable

15

COVER, STOP SWITCH (NOT AVAILABLE)

32197-371-000

Unavailable

16

SUB-WIRE, HORN (NOT AVAILABLE)

32215-371-000

Unavailable

17

RESISTOR, HEADLIGHT & TAILLIGHT (NOT AVAILABLE)

34920-371-671

$57.49

18

RESISTOR (TOYO) (NOT AVAILABLE)

34930-371-003

Unavailable

19

PROTECTOR, WIRE (NOT AVAILABLE)

35114-371-000

Unavailable

20

HORN ASSY. (MITSUBA)

38100-300-023

Unavailable

22

BOX ASSY., FUSE (NOT AVAILABLE)

38200-371-153

Unavailable

23

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38300-292-670.

38301-KJ6-743

$60.65

23

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-KJ6-741.

38301-KJ6-743

$60.65

23

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-KJ6-742.

38301-KJ6-743

$60.65

23

RELAY, TURN SIGNAL (MITSUBA)

38301-KJ6-743

$60.65

25

SUSPENSION, TURN SIGNAL RELAY (NOT AVAILABLE)

38306-107-670

Unavailable

27

RESERVE UNIT, LIGHTING (STANLEY) (NOT AVAILABLE)

38420-371-671

Unavailable

28

SCREW, PAN (3X12)

93500-03012-0A

$1.49

29

SCREW, PAN (5X6)

93500-05006-0A

$1.49

30

SCREW, PAN (5X20)

93500-05020-0A

$1.49

31

SCREW, PAN (5X32) (NOT AVAILABLE)

93500-05032-4J

Unavailable

32

NUT, HEX. (5MM)

94001-05000-0S

$2.74

33

WASHER, SPRING (5MM)

94111-05000

$1.49

34

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

34

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

35

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

35

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

36

BOLT, FLANGE (6X22) This part replaces 95700-06022-08.

95701-06022-08

$1.72

36

BOLT, FLANGE (6X22)

95701-06022-08

$1.72

37

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.80

37

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

38

FUSE B (5A)

98200-20500

$1.49

39

FUSE B (10A)

98200-21000

$1.49

40

FUSE B (15A)

98200-21500

$1.49
