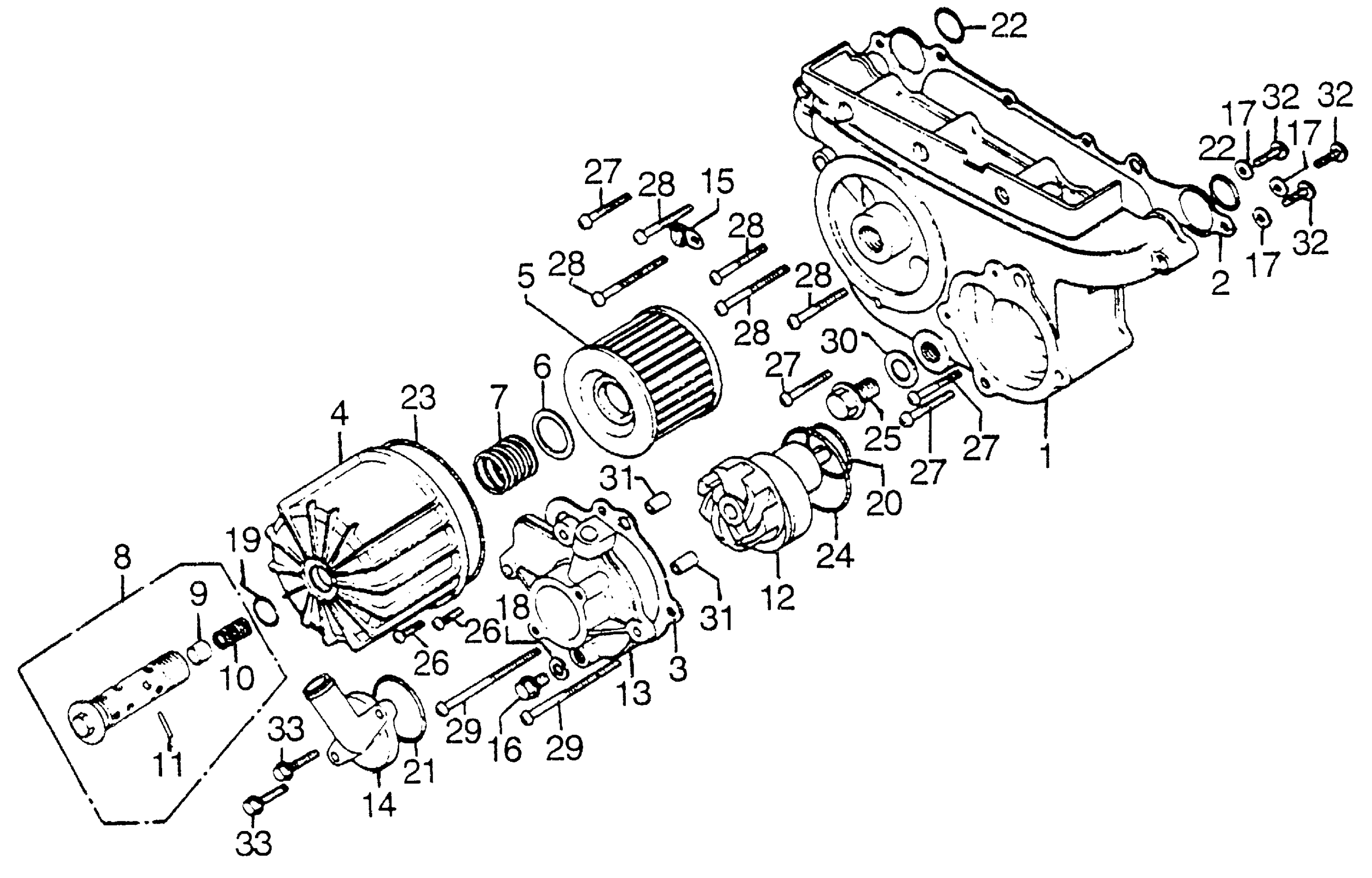

Honda GL1000A (77) GOLD WING, JPN, VIN# GL1-3000001 TO GL1-3025175 TRANSMISSION COVER + WATER PUMP + OIL FILTER Diagram

#

Description
Price

1

COVER, TRANSMISSION (NOT AVAILABLE) This part replaces 11360-371-000.

11360-463-000

Unavailable

2

GASKET, TRANSMISSION COVER This part replaces 11391-371-000.

11391-371-306

Unavailable

2

GASKET, TRANSMISSION COVER

11391-371-306

Unavailable

3

GASKET, WATER PUMP This part replaces 11396-371-000.

11396-371-306

$6.98

3

GASKET, WATER PUMP

11396-371-306

$6.98

4

CASE, OIL FILTER (NOT AVAILABLE)

15411-371-000

Unavailable

5

ELEMENT, OIL FILTER This part replaces 15410-422-000.

15410-426-010

$9.30

5

ELEMENT, OIL FILTER This part replaces 15410-426-000.

15410-426-010

$9.30

5

ELEMENT, OIL FILTER

15410-426-010

$9.30

5

ELEMENT, OIL FILTER This part replaces 15412-300-024.

15410-426-010

$9.30

5

ELEMENT, OIL FILTER This part replaces 15412-300-325.

15410-426-010

$9.30

6

SEAT, OIL FILTER SPRING

15414-300-000

$3.89

7

SPRING, OIL FILTER ELEMENT SETTING

15415-300-000

$4.85

8

BOLT, OIL FILTER CENTER

15420-300-020

Unavailable

9

VALVE, CHECK

15473-300-300

$4.25

10

SPRING, CHECK VALVE

15474-300-310

$4.89

11

PIN, SPRING SETTING

15477-300-300

$3.56

12

WATER PUMP This part replaces 19200-MG9-680.

19200-MG9-681

$231.77

12

WATER PUMP

19200-MG9-681

$231.77

12

WATER PUMP This part replaces 19200-371-000.

19200-MG9-681

$231.77

12

WATER PUMP This part replaces 19200-371-010.

19200-MG9-681

$231.77

12

WATER PUMP This part replaces 19200-371-020.

19200-MG9-681

$231.77

13

COVER, WATER PUMP (NOT AVAILABLE) This part replaces 19221-MB9-000.

19221-371-980

Unavailable

13

COVER, WATER PUMP (NOT AVAILABLE) This part replaces 19221-371-000.

19221-371-980

Unavailable

14

CAP, WATER PUMP (NOT AVAILABLE)

19225-371-000

Unavailable

15

CLAMP, CABLE

32111-323-000

$3.98

16

CHECK BOLT, OIL LEVEL This part replaces 90007-371-004.

90035-KZ1-000

Unavailable

17

WASHER, SEALING (6MM)

90441-028-010

$2.92

18

WASHER (10.2MM)

90481-001-020

$2.92

19

O-RING (15X2.5)

91301-MY9-003

$2.28

19

O-RING (15X2.5) This part replaces 91302-028-000.

91301-MY9-003

$2.28

20

O-RING (37X2.4) (ARAI) GASKET KIT A This part replaces 91303-283-000.

91305-KT7-003

$2.83

20

O-RING (37X2.4) (ARAI)

91305-KT7-003

$2.83

21

O-RING (46X2) This part replaces 91305-216-000.

91305-426-003

$7.19

21

O-RING (46X2)

91305-426-003

$7.19

22

O-RING (23X2.1) This part replaces 91312-371-003.

91312-371-013

$2.92

22

O-RING (23X2.1)

91312-371-013

$2.92

23

O-RING (89X4.5) This part replaces 91316-300-005.

91316-425-003

$4.45

23

O-RING (89X4.5)

91316-425-003

$4.45

24

O-RING (56X2.4)

91356-706-000

$3.44

25

BOLT, DRAIN PLUG (14MM)

92800-14000

$3.67

26

BOLT, FLANGE (6X22) This part replaces 95700-06022-00.

95701-06022-00

$1.80

26

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

27

SCREW, PAN (6X35) This part replaces 93500-06035.

93500-06035-0A

$1.49

27

SCREW, PAN (6X35)

93500-06035-0A

$1.49

28

SCREW, PAN (6X55) This part replaces 93500-06055.

93500-06055-0A

$1.49

28

SCREW, PAN (6X55)

93500-06055-0A

$1.49

29

BOLT, FLANGE (6X80) This part replaces 95700-06080-00.

95701-06080-00

$2.34

29

BOLT, FLANGE (6X80)

95701-06080-00

$2.34

30

WASHER, DRAIN PLUG (14MM)

94109-14000

$1.49

31

PIN A, DOWEL (8X14)

94301-08140

$2.25

32

BOLT, FLANGE (6X18) BOLT, HEX. (6X18) This part replaces 95700-06018-00.

95701-06018-00

$1.62

32

BOLT, FLANGE (6X18)

95701-06018-00

$1.62

33

BOLT, FLANGE (6X22) This part replaces 95700-06022-00.

95701-06022-00

$1.80

33

BOLT, FLANGE (6X22)

95701-06022-00

$1.80
