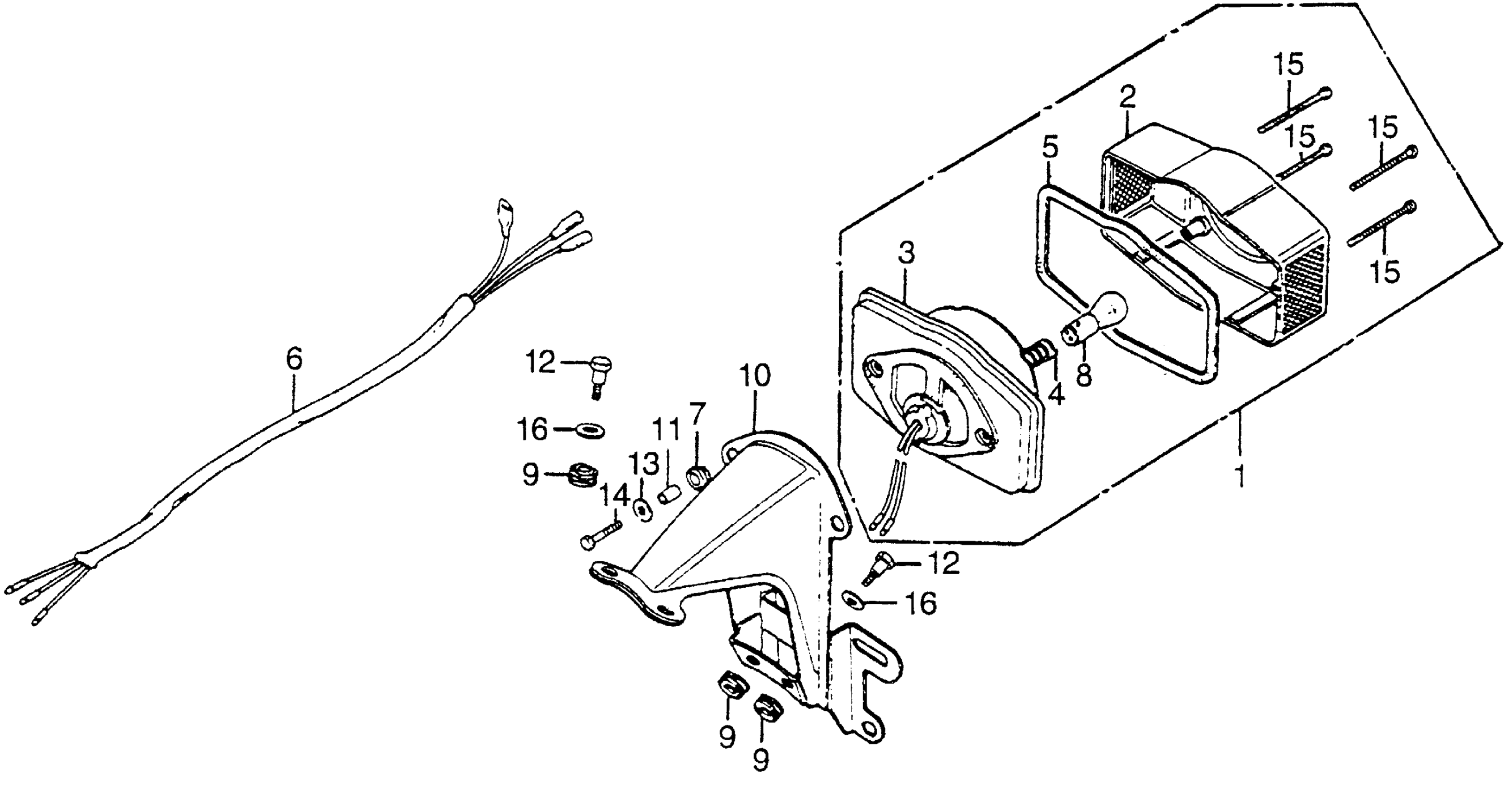

Honda GL1000A (77) GOLD WING, JPN, VIN# GL1-3000001 TO GL1-3025175 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT (12V 32/3CP) (NOT AVAILABLE)

33701-341-910

Unavailable

2

LENS, TAILLIGHT

33702-341-671

Unavailable

3

BASE, TAILLIGHT (NOT AVAILABLE)

33703-341-900

Unavailable

4

WIRE, TAILLIGHT

33708-098-000

Unavailable

4

WIRE, TAILLIGHT This part replaces 33708-341-671.

33708-098-000

Unavailable

5

GASKET, TAILLIGHT LENS

33709-341-671

Unavailable

6

WIRE, TAILLIGHT (NOT AVAILABLE)

33711-371-000

Unavailable

7

RUBBER, REGULATOR CUSHION This part replaces 31403-300-000.

31403-323-000

$3.38

7

RUBBER, REGULATOR CUSHION

31403-323-000

$3.38

8

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY)

34906-MG9-771

$4.15

8

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY) This part replaces 34906-341-671.

34906-MG9-771

$4.15

9

RUBBER, RR. FENDER CUSHION

80101-283-000

$4.91

10

BRACKET, NUMBER PLATE *MRCR2* (CHROME PLATING) (NOT AVAILABLE)

84701-341-670XW

Unavailable

11

COLLAR, TAILLIGHT UNIT

84706-378-000

Unavailable

12

BOLT, TAILLIGHT SETTING

90162-283-000

$4.24

12

BOLT, TAILLIGHT SETTING This part replaces 90162-292-000.

90162-283-000

$4.24

13

WASHER (18MM)

90581-831-650

$1.87

14

BOLT, HEX. (5X25) This part replaces 92000-05025-0A.

92101-05025-0A

$1.49

14

BOLT, HEX. (5X25)

92101-05025-0A

$1.49

15

SCREW, PAN (4X55)

93500-04055-4J

$1.49

16

WASHER, PLAIN (8MM)

94101-08200

$1.49
