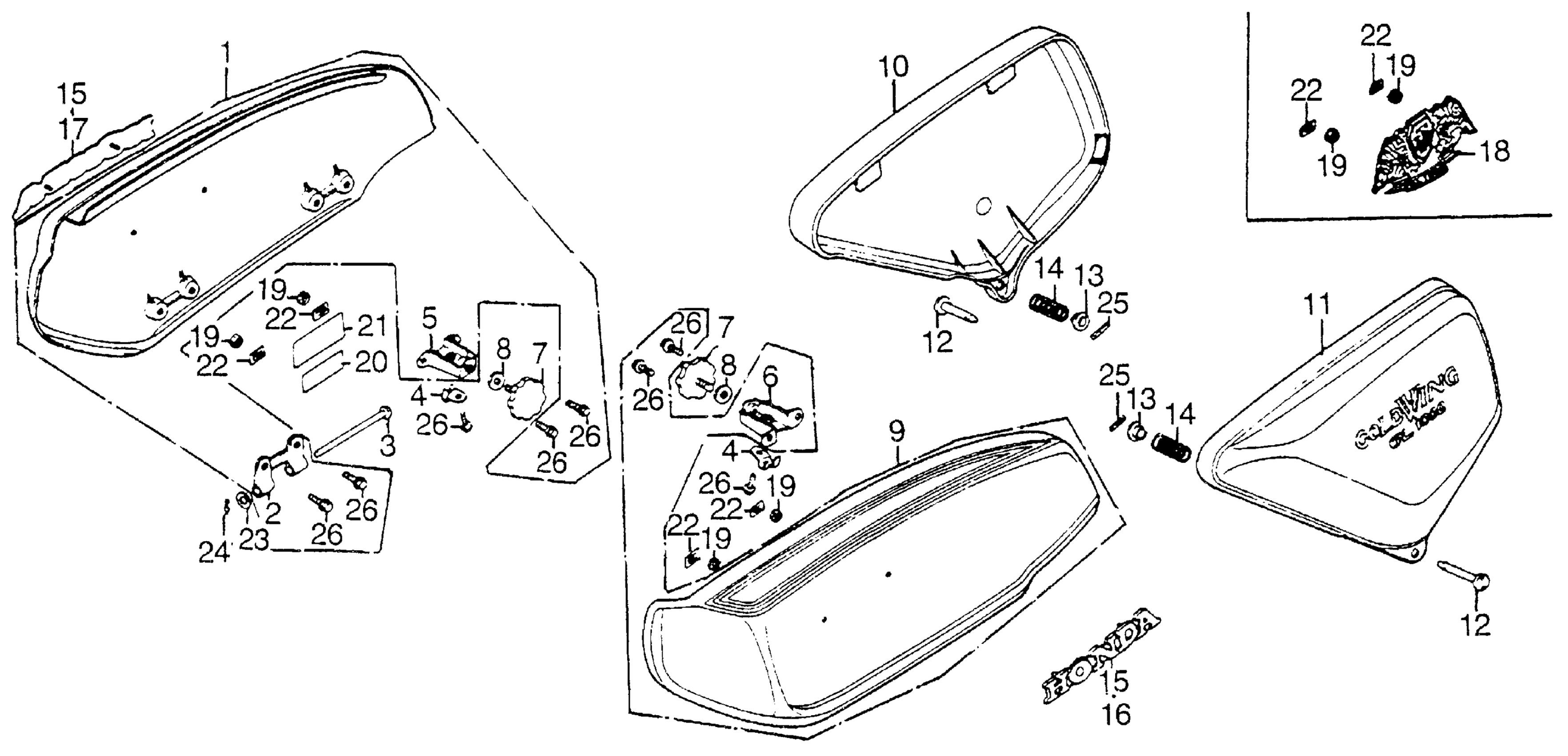

Honda GL1000A (77) GOLD WING, JPN, VIN# GL1-3000001 TO GL1-3025175 SIDE SHELTER + SIDE COVER Diagram

#

Description
Price

1

SHELTER, R. SIDE *R6CS* (CANDY ANTARES RED SPECIAL) (NOT AVAILABLE)

83100-371-661ZA

Unavailable

1

SHELTER, R. SIDE *NH1* (BLACK) (NOT AVAILABLE)

83100-371-661ZB

Unavailable

1

SHELTER, R. SIDE *PB6CS* (CANDY SIRIUS BLUE SPECIAL) (NOT AVAILABLE)

83100-371-661ZC

Unavailable

2

HINGE, SHELTER

83105-371-000

Unavailable

3

PIN, SHELTER HINGE

83109-371-000

$6.32

4

STAY, SHELTER STOP (NOT AVAILABLE)

83119-371-000

Unavailable

5

BRACKET, R. SHELTER (NOT AVAILABLE)

83125-371-010

Unavailable

6

BRACKET, L. SHELTER (NOT AVAILABLE)

83126-371-010

Unavailable

7

LATCH, SHELTER (NOT AVAILABLE)

83127-371-010

Unavailable

8

STOPPER, SHELTER LATCH (NOT AVAILABLE)

83128-371-000

Unavailable

9

SHELTER, L. SIDE *R6CS* (CANDY ANTARES RED SPECIAL) (NOT AVAILABLE)

83200-371-661ZA

Unavailable

9

SHELTER, L. SIDE *NH1* (BLACK) (NOT AVAILABLE)

83200-371-661ZB

Unavailable

9

SHELTER, L. SIDE *PB6CS* (CANDY SIRIUS BLUE SPECIAL)

83200-371-661ZC

Unavailable

10

COVER, R. SIDE *R6CS* (CANDY ANTARES RED SPECIAL) (NOT AVAILABLE)

83600-371-661ZA

Unavailable

10

COVER, R. SIDE *NH1* (BLACK) (NOT AVAILABLE)

83600-371-661ZB

Unavailable

10

COVER, R. SIDE *PB6CS* (CANDY SIRIUS BLUE SPECIAL) (NOT AVAILABLE)

83600-371-661ZC

Unavailable

11

COVER, L. SIDE *R6CS* (CANDY ANTARES RED SPECIAL) (NOT AVAILABLE)

83700-371-661ZA

Unavailable

11

COVER, L. SIDE *NH1* (BLACK) (NOT AVAILABLE)

83700-371-661ZB

Unavailable

11

COVER, L. SIDE *PB6CS* (CANDY SIRIUS BLUE SPECIAL) (NOT AVAILABLE)

83700-371-661ZC

Unavailable

12

PIN, SIDE COVER

83703-371-000

Unavailable

13

GUIDE, SPRING

83704-333-000

Unavailable

14

SPRING, SIDE COVER SETTING

83705-371-000

Unavailable

16

EMBLEM, L. SIDE SHELTER

87121-371-000

Unavailable

16

EMBLEM, L. SIDE SHELTER This part replaces 87121-371-660.

87121-371-000

Unavailable

17

EMBLEM, L. SIDE SHELTER

87121-371-000

Unavailable

17

EMBLEM, L. SIDE SHELTER This part replaces 87122-371-660.

87121-371-000

Unavailable

19

RUBBER, RR. EMBLEM SETTING

87411-538-910

$7.16

20

LABEL, RESERVE TANK (NOT AVAILABLE)

87507-371-671

Unavailable

21

MARK, RADIATOR CAUTION (NOT AVAILABLE)

87508-371-670

Unavailable

22

NUT, SPEED (3MM)

90313-567-000

$3.97

23

WASHER, PLAIN (5MM)

94101-05000

$1.49

24

PIN, LOCK (5MM)

94251-05000

$1.49

25

PIN, SPRING (2X14)

94305-20142

$1.49

26

BOLT, FLANGE (6X10)

95700-06010-08

$1.61

26

BOLT, FLANGE (6X10)

95701-06010-08

$1.61
