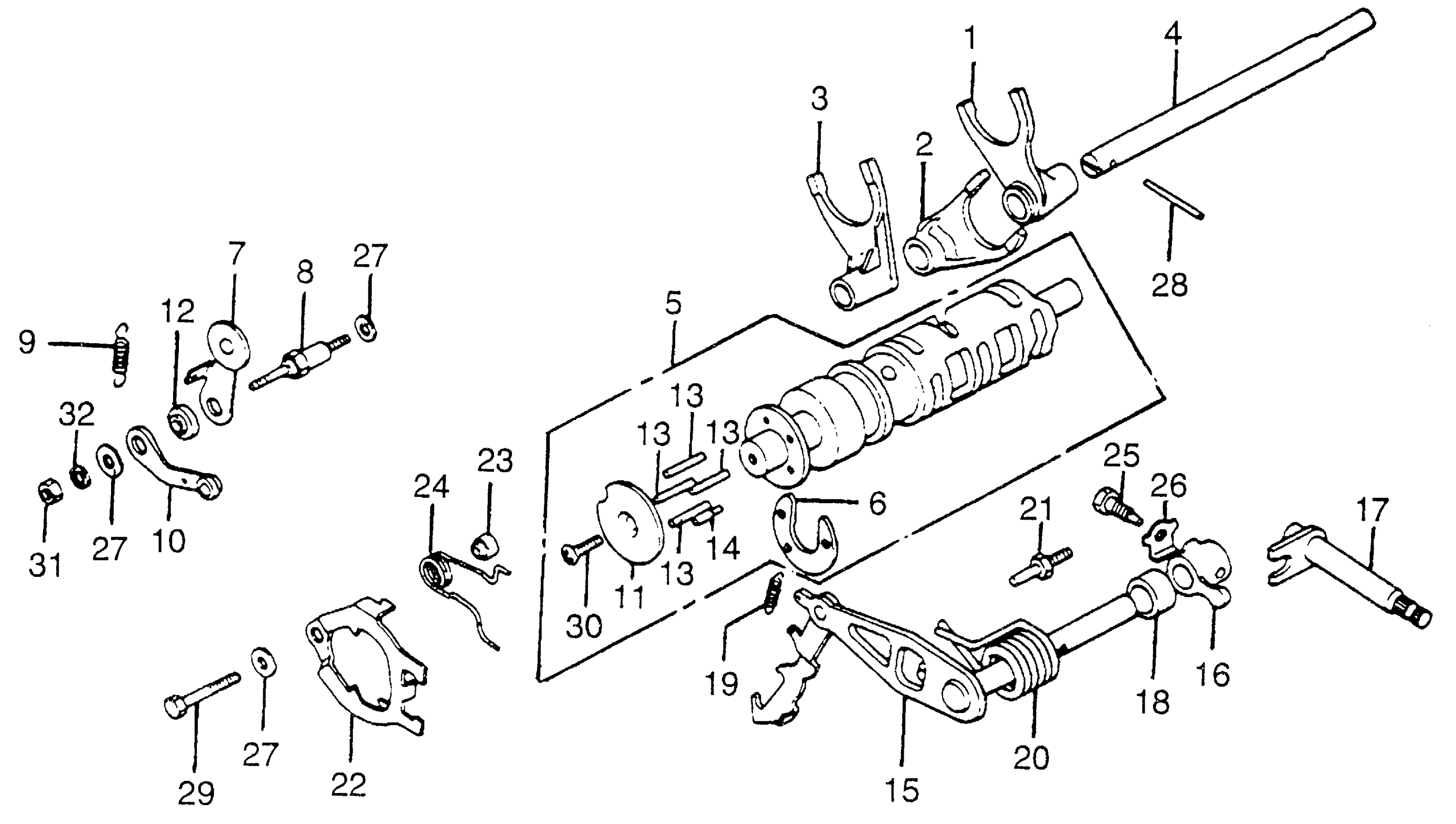

Honda GL1000A (77) GOLD WING, JPN, VIN# GL1-3000001 TO GL1-3025175 SHIFT DRUM + SHIFT FORK Diagram

#

Description
Price

1

FORK, R. GEARSHIFT

24211-371-000

Unavailable

2

FORK, CENTER GEARSHIFT

24212-MG9-000

Unavailable

2

FORK, CENTER GEARSHIFT This part replaces 24212-371-000.

24212-MG9-000

Unavailable

2

FORK, CENTER GEARSHIFT This part replaces 24212-463-000.

24212-MG9-000

Unavailable

3

FORK, L. GEARSHIFT This part replaces 24213-371-000.

24213-463-000

Unavailable

3

FORK, L. GEARSHIFT

24213-463-000

Unavailable

4

SHAFT, GEARSHIFT FORK (NOT AVAILABLE)

24261-371-000

Unavailable

5

DRUM ASSY., GEARSHIFT

24300-371-010

Unavailable

6

PLATE, ROLLER STOPPER (NOT AVAILABLE)

24302-371-000

Unavailable

7

STOPPER, DRUM

24430-371-000

Unavailable

8

SHAFT, DRUM STOPPER (NOT AVAILABLE)

24434-371-000

Unavailable

9

SPRING, DRUM STOPPER (NOT AVAILABLE)

24435-371-000

Unavailable

10

ARM, NEUTRAL STOPPER

24440-371-000

Unavailable

11

PLATE, NEUTRAL STOPPER (NOT AVAILABLE)

24442-371-000

Unavailable

12

COLLAR, NEUTRAL STOPPER PIVOT (NOT AVAILABLE)

24447-371-000

Unavailable

13

ROLLER (4X29.8) (NOT AVAILABLE)

24501-371-000

Unavailable

14

ROLLER (4X17.0) (NOT AVAILABLE)

24502-371-010

Unavailable

15

ARM, GEARSHIFT (NOT AVAILABLE)

24610-371-000

Unavailable

16

ARM B, GEARSHIFT (NOT AVAILABLE)

24615-371-000

Unavailable

17

SPINDLE, GEARSHIFT (NOT AVAILABLE)

24620-371-000

Unavailable

18

COLLAR, GEARSHIFT SPRING (NOT AVAILABLE)

24624-371-000

Unavailable

19

SPRING, SHIFT ARM (NOT AVAILABLE)

24641-371-000

Unavailable

20

SPRING, SHIFT RETURN

24651-371-000

Unavailable

21

PIN, SHIFT RETURN SPRING (NOT AVAILABLE)

24652-300-000

Unavailable

22

STOPPER, GEARSHIFT POSITIVE (NOT AVAILABLE)

24661-371-000

Unavailable

23

COLLAR, STOPPER ARM (NOT AVAILABLE)

24663-300-000

Unavailable

24

SPRING, POSITIVE STOPPER

24666-300-000

Unavailable

25

BOLT, SPECIAL (8X24) This part replaces 90029-611-000.

90029-611-010

$8.88

25

BOLT, SPECIAL (8X24)

90029-611-010

$8.88

26

WASHER, LOCK

90406-PS1-000

Unavailable

26

WASHER, LOCK This part replaces 90406-611-000.

90406-PS1-000

Unavailable

27

WASHER, GEARSHIFT DRUM SIDE

90417-041-000

$2.19

28

PIN (4X40) (NOT AVAILABLE)

90705-371-000

Unavailable

29

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

29

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

30

SCREW, FLAT (6X22) (NOT AVAILABLE)

93600-06022

Unavailable

31

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

31

NUT, HEX. (6MM)

94001-06200-0S

$1.49

32

WASHER, SPRING (6MM)

94111-06000

$1.49
