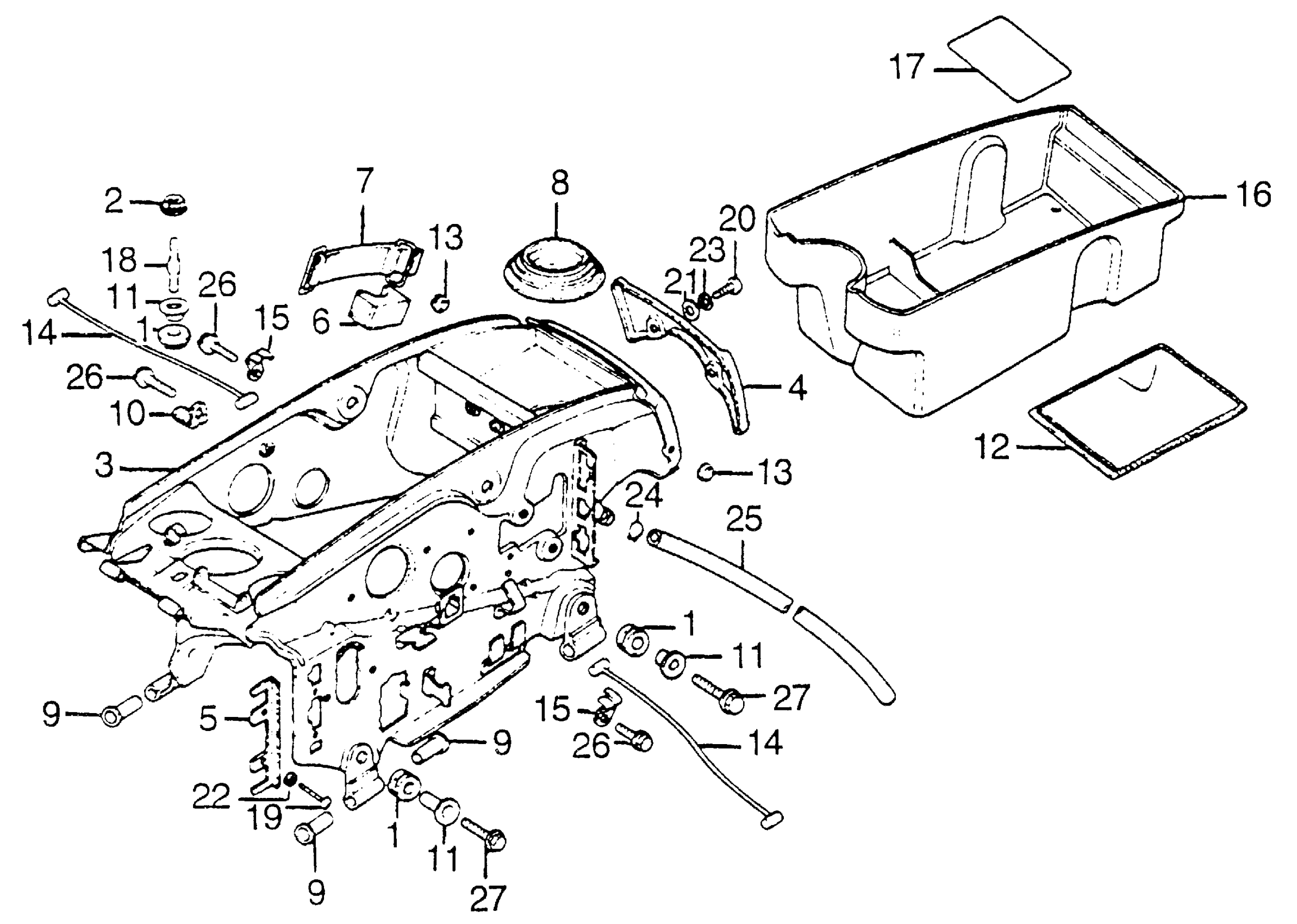

Honda GL1000A (77) GOLD WING, JPN, VIN# GL1-3000001 TO GL1-3025175 SHELTER FRAME + TOOL TRAY Diagram

#

Description
Price

1

RUBBER, AIR CLEANER HOUSING SETTING

17245-107-010

$2.89

2

NUT, FLANGE (6MM) This part replaces 18362-720-000.

94050-06000

$1.49

2

NUT, FLANGE (6MM)

94050-06000

$1.49

3

FRAME, SHELTER *NH1* (BLACK)

50410-371-010ZA

Unavailable

4

COVER, RR. SHELTER *R6CS* (CANDY ANTARES RED SPECIAL) (NOT AVAILABLE)

50411-371-000ZA

Unavailable

4

COVER, RR. SHELTER *NH1* (BLACK) (NOT AVAILABLE)

50411-371-000ZD

Unavailable

4

COVER, RR. SHELTER *PB6CS* (CANDY SIRIUS BLUE SPECIAL)

50411-371-000ZE

Unavailable

5

HOLDER, CONNECTOR (NOT AVAILABLE)

50412-371-000

Unavailable

6

RUBBER, KICK ARM MOUNT (NOT AVAILABLE)

50419-371-000

Unavailable

7

BAND, KICK ARM MOUNT (NOT AVAILABLE)

50420-371-000

Unavailable

8

RUBBER, FUEL TRAY (NOT AVAILABLE)

50423-371-000

Unavailable

9

BUSH, SIDE HINGE

50425-371-000

Unavailable

10

STOPPER, SUB-TANK (NOT AVAILABLE)

50438-371-000

Unavailable

11

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

11

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

11

COLLAR, RR. FENDER

61105-428-000

Unavailable

12

BAG, SERVICE BOOK This part replaces 77251-342-000.

77251-GR1-000

$4.30

13

PLUG, RR. FENDER (NOT AVAILABLE)

80124-351-000

Unavailable

14

STOPPER, SHELTER (NOT AVAILABLE)

83118-371-000

Unavailable

15

STAY, SHELTER STOP (NOT AVAILABLE)

83119-371-000

Unavailable

16

TRAY, TOOL (NOT AVAILABLE)

83501-371-000

Unavailable

17

LABEL, ACCESSORIES & LOADING CAUTION (NOT AVAILABLE)

87512-371-670

Unavailable

18

BOLT, STUD (6X32)

92718-06032-10

Unavailable

19

SCREW, PAN (3X10)

93500-03010-0A

$1.49

20

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

20

SCREW, PAN (6X12)

93500-06012-0A

$1.49

20

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

21

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

21

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

21

WASHER, PLAIN (6MM)

94101-06800

$1.49

22

WASHER, SPRING (3MM)

94111-03000

$1.49

23

WASHER, SPRING (6MM)

94111-06000

$1.49

24

CLIP, TUBE (B12.5)

95002-02130

$1.49

25

TUBE, VINYL (9X13X820) (NOT AVAILABLE)

95003-27082-30

Unavailable

26

BOLT, FLANGE (6X10)

95700-06010-08

$1.61

26

BOLT, FLANGE (6X10)

95701-06010-08

$1.61

27

BOLT, FLANGE (6X22) This part replaces 95700-06022-08.

95701-06022-08

$1.72

27

BOLT, FLANGE (6X22)

95701-06022-08

$1.72
