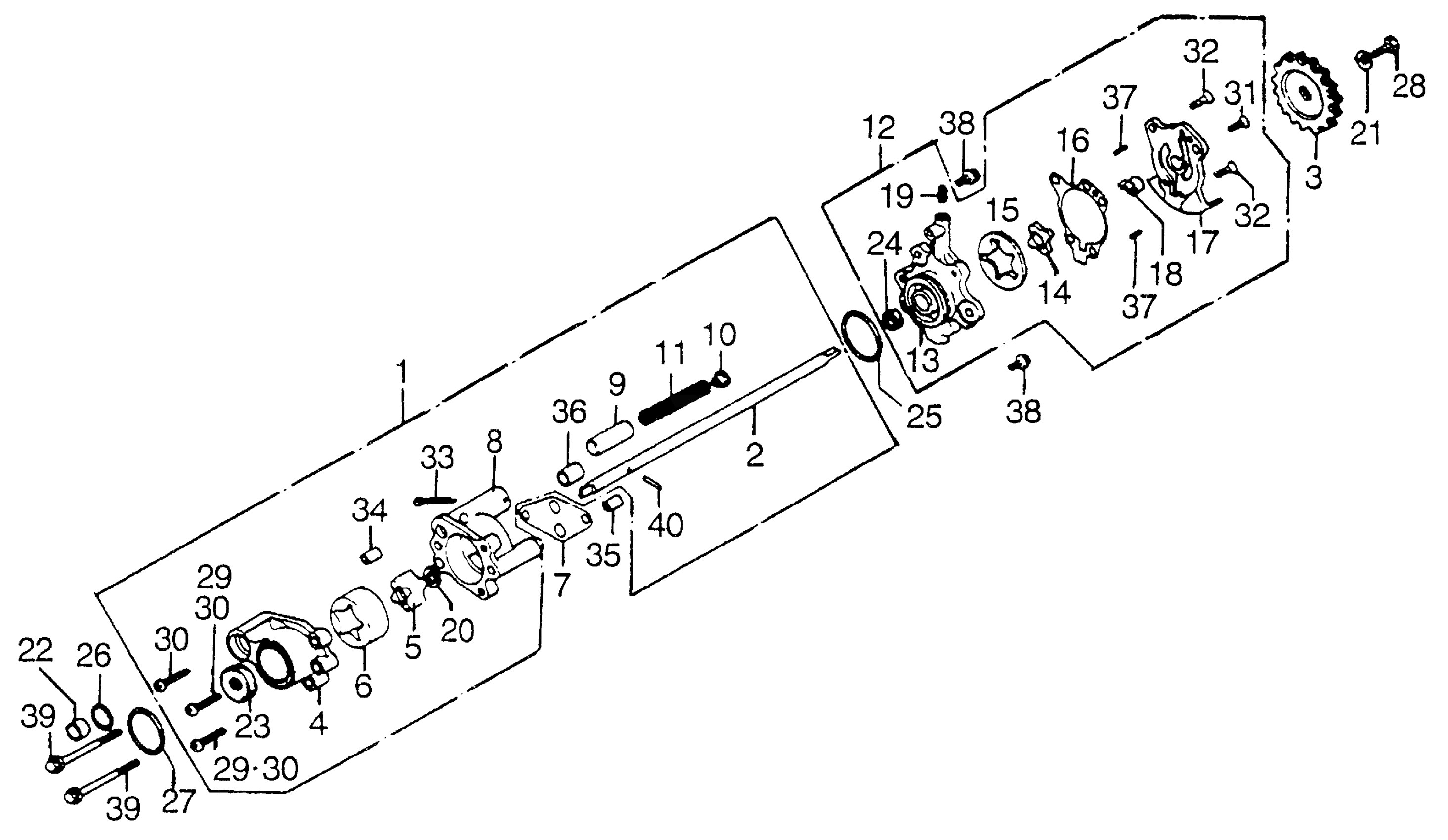

Honda GL1000A (77) GOLD WING, JPN, VIN# GL1-3000001 TO GL1-3025175 OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY., OIL (NOT AVAILABLE)

15110-371-000

Unavailable

2

SHAFT, OIL PUMP (NOT AVAILABLE)

15111-371-000

Unavailable

3

SPROCKET, OIL PUMP (NOT AVAILABLE)

15116-371-003

Unavailable

4

BODY, OIL PUMP (NOT AVAILABLE)

15121-371-010

Unavailable

5

ROTOR A, OIL PUMP (INNER) (NOT AVAILABLE)

15125-371-000

Unavailable

6

ROTOR A, OIL PUMP (OUTER) (NOT AVAILABLE)

15126-371-000

Unavailable

7

GASKET, OIL PASSAGE (NOT AVAILABLE)

15128-371-000

Unavailable

8

BASE, OIL PUMP (NOT AVAILABLE)

15131-371-010

Unavailable

9

VALVE, RELIEF (NOT AVAILABLE)

15141-371-000

Unavailable

10

SEAT, RELIEF VALVE

15142-371-000

Unavailable

11

SPRING, RELIEF VALVE (NOT AVAILABLE)

15145-371-000

Unavailable

12

PUMP ASSY., CLUTCH OIL (NOT AVAILABLE)

15220-371-000

Unavailable

13

BODY, CLUTCH OIL PUMP (NOT AVAILABLE)

15221-371-000

Unavailable

14

ROTOR B (INNER)

15225-371-000

Unavailable

15

ROTOR B (OUTER) (NOT AVAILABLE)

15226-371-000

Unavailable

16

GASKET, CLUTCH OIL PUMP (NOT AVAILABLE)

15229-371-000

Unavailable

17

COVER, CLUTCH OIL PUMP (NOT AVAILABLE)

15231-371-000

Unavailable

18

COLLAR, OIL PUMP This part replaces 15256-371-000.

15256-371-005

Unavailable

18

COLLAR, OIL PUMP

15256-371-005

Unavailable

19

SCREW, SEALING

90025-371-000

Unavailable

20

WASHER, THRUST (11MM)

90456-333-000

$2.53

21

WASHER, GEARSHIFT DRUM SIDE

90417-041-000

$2.19

22

COLLAR (17X10) (NOT AVAILABLE)

90703-371-000

Unavailable

23

OIL SEAL (10X25X7)

91207-580-003

$4.99

23

OIL SEAL (10X25X7) This part replaces 91207-580-015.

91207-580-003

$4.99

24

OIL SEAL (11X15X3) (KOYO)

91208-MN1-771

$8.66

24

OIL SEAL (11X15X3) (KOYO) This part replaces 91208-300-003.

91208-MN1-771

$8.66

25

O-RING (33.5X3.0) This part replaces 91302-200-000.

91304-HB3-003

$7.70

25

O-RING (33.5X3.0) This part replaces 91302-943-003.

91304-HB3-003

$7.70

25

O-RING (33.5X3.0)

91304-HB3-003

$7.70

26

O-RING (17.0X2.5) (ARAI)

91333-KE5-003

$2.13

26

O-RING (17.0X2.5) (ARAI) This part replaces 91333-567-010.

91333-KE5-003

$2.13

27

O-RING (29X2.2)

91345-580-000

Unavailable

28

BOLT, SPECIAL (6X12)

90004-371-000

Unavailable

30

SCREW, PAN (6X28) This part replaces 93500-06028.

93500-06028-0A

$1.49

30

SCREW, PAN (6X28)

93500-06028-0A

$1.49

31

SCREW, FLAT (5X12)

93600-05012-0H

Unavailable

32

SCREW, FLAT (5X14)

93600-05014-0A

$1.49

33

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

33

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

33

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

33

PIN, COTTER (3.0X45)

94201-30450

$1.49

34

PIN A, DOWEL (8X10)

94301-08100

$2.25

35

PIN A, DOWEL (8X14)

94301-08140

$2.25

36

PIN A, DOWEL (14X20)

94301-14200

$2.28

37

PIN C, DOWEL (4X6.5)

94303-04065

$2.14

38

BOLT, FLANGE (6X18) BOLT, HEX. (6X18) This part replaces 95700-06018-00.

95701-06018-00

$1.62

38

BOLT, FLANGE (6X18)

95701-06018-00

$1.62

39

BOLT, FLANGE (6X80) This part replaces 95700-06080-00.

95701-06080-00

$2.34

39

BOLT, FLANGE (6X80)

95701-06080-00

$2.34

40

ROLLER (4X15.8)

96220-40158

$1.49
