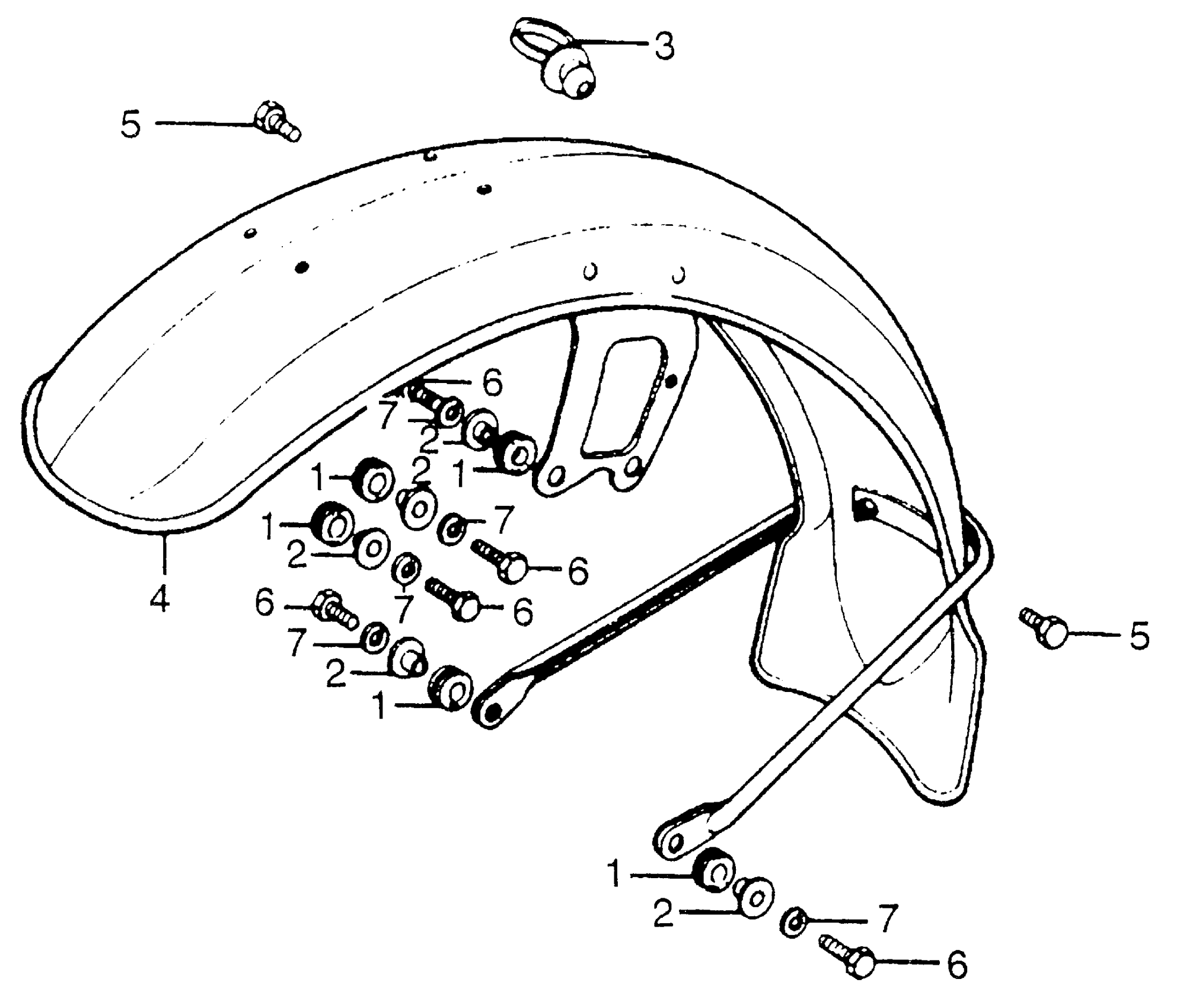

Honda GL1000A (77) GOLD WING, JPN, VIN# GL1-3000001 TO GL1-3025175 FRONT FENDER Diagram

RUBBER, CHAIN CASE SETTING

40513-310-000

$2.43

COLLAR, CHAIN CASE

40514-310-000

$5.83

GROMMET, CABLE

45451-367-690

$3.75

FENDER, FR. (NOT AVAILABLE)

61100-371-000

Unavailable

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.28

BOLT, HEX. (6X10)

92101-06010-0A

$1.28

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$0.94

BOLT, HEX. (6X20)

92101-06020-0A

$0.94

WASHER, SPRING (6MM)

94111-06000

$0.86
