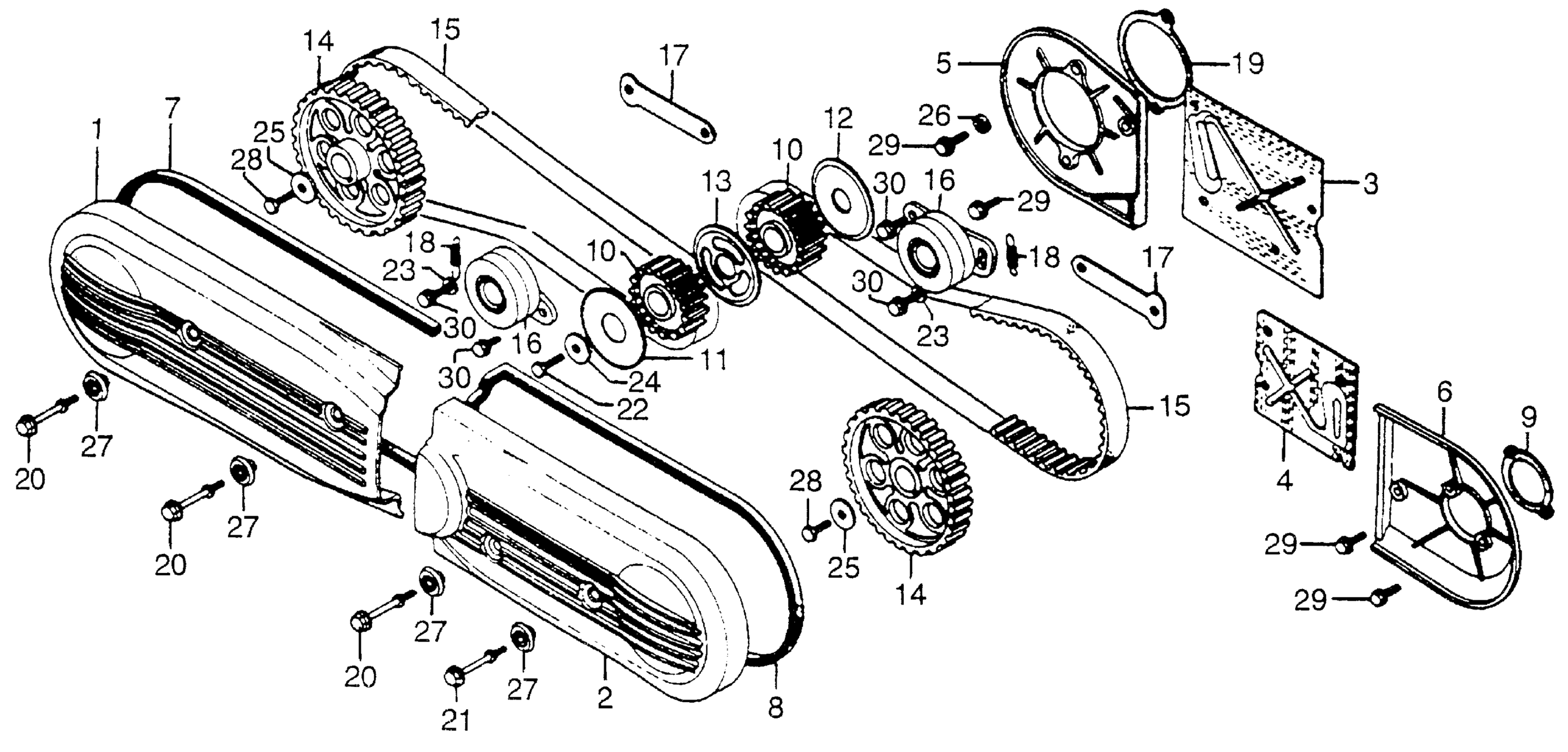

Honda GL1000A (77) GOLD WING, JPN, VIN# GL1-3000001 TO GL1-3025175 FRONT COVER + TIMING BELT Diagram

#

Description
Price

1

COVER, R. FR. (NOT AVAILABLE)

11511-371-010

Unavailable

2

COVER, L. FR.

11521-371-010

Unavailable

3

PLATE B, TIMING BELT ADJUSTING (NOT AVAILABLE) This part replaces 11531-371-000.

11531-431-000

Unavailable

4

PLATE A, TIMING BELT ADJUSTING (NOT AVAILABLE) This part replaces 11535-371-000.

11535-431-000

Unavailable

4

PLATE A, TIMING BELT ADJUSTING (NOT AVAILABLE) This part replaces 11535-371-405.

11535-431-000

Unavailable

5

COVER, R. CYLINDER HEAD (NOT AVAILABLE)

11541-371-000

Unavailable

6

COVER, L. CYLINDER HEAD (NOT AVAILABLE)

11542-371-000

Unavailable

7

GASKET, R. FR. COVER

11831-371-010

Unavailable

8

GASKET, L. FR. COVER

11832-371-010

Unavailable

9

GASKET, CYLINDER HEAD COVER This part replaces 12391-371-000.

12391-371-306

Unavailable

9

GASKET, CYLINDER HEAD COVER

12391-371-306

Unavailable

10

PULLEY, TIMING BELT DRIVE (NOT AVAILABLE)

13621-657-000

Unavailable

11

PLATE, TIMING BELT GUIDE (NOT AVAILABLE)

13622-371-000

Unavailable

12

PLATE A, TIMING BELT GUIDE (NOT AVAILABLE)

13622-657-000

Unavailable

13

PLATE B, TIMING BELT GUIDE (NOT AVAILABLE)

13623-371-000

Unavailable

14

PULLEY, TIMING BELT DRIVEN This part replaces 14211-PB2-000.

14211-PC1-505

Unavailable

14

PULLEY, TIMING BELT DRIVEN This part replaces 14211-PB2-003.

14211-PC1-505

Unavailable

14

PULLEY, TIMING BELT DRIVEN This part replaces 14211-PC1-000.

14211-PC1-505

Unavailable

14

PULLEY, TIMING BELT DRIVEN This part replaces 14211-657-010.

14211-PC1-505

Unavailable

15

BELT, TIMING

14400-371-014

Unavailable

16

ADJUSTER, TIMING BELT (TOYO)

14510-371-008

Unavailable

17

PLATE, TIMING BELT ADJUSTER (NOT AVAILABLE)

14512-371-000

Unavailable

18

SPRING, TIMING BELT ADJUSTER

14516-371-000

$4.98

19

GASKET, BREAKER This part replaces 30376-371-000.

30376-371-306

Unavailable

19

GASKET, BREAKER

30376-371-306

Unavailable

20

BOLT, SPECIAL (6X45.5)

90016-415-000

Unavailable

20

BOLT, SPECIAL (6X45.5) This part replaces 90017-371-000.

90016-415-000

Unavailable

20

BOLT, SPECIAL (6X45.5) This part replaces 90017-371-010.

90016-415-000

Unavailable

21

BOLT, SPECIAL (6X54) (NOT AVAILABLE)

90019-371-000

Unavailable

22

BOLT, PULLEY (10X28)

90021-371-000

Unavailable

23

WASHER (8MM)

90406-371-000

Unavailable

24

WASHER, SPECIAL (34X10.5X4.0)

90414-611-000

Unavailable

25

WASHER, SPECIAL (28X8.5X4.0)

90435-611-000

$8.69

26

WASHER, SEALING (6MM)

90441-028-010

$2.92

27

RUBBER, SETTING

90541-371-000

$5.01

28

BOLT, HEX. (8X22) This part replaces 92000-08022-0A.

92101-08022-0A

Unavailable

28

BOLT, HEX. (8X22)

92101-08022-0A

Unavailable

29

BOLT, FLANGE (6X18) BOLT, HEX. (6X18) This part replaces 95700-06018-00.

95701-06018-00

$1.62

29

BOLT, FLANGE (6X18)

95701-06018-00

$1.62

30

BOLT, FLANGE (8X22) This part replaces 95700-08022-00.

95701-08022-00

$2.16

30

BOLT, FLANGE (8X22)

95701-08022-00

$2.16
