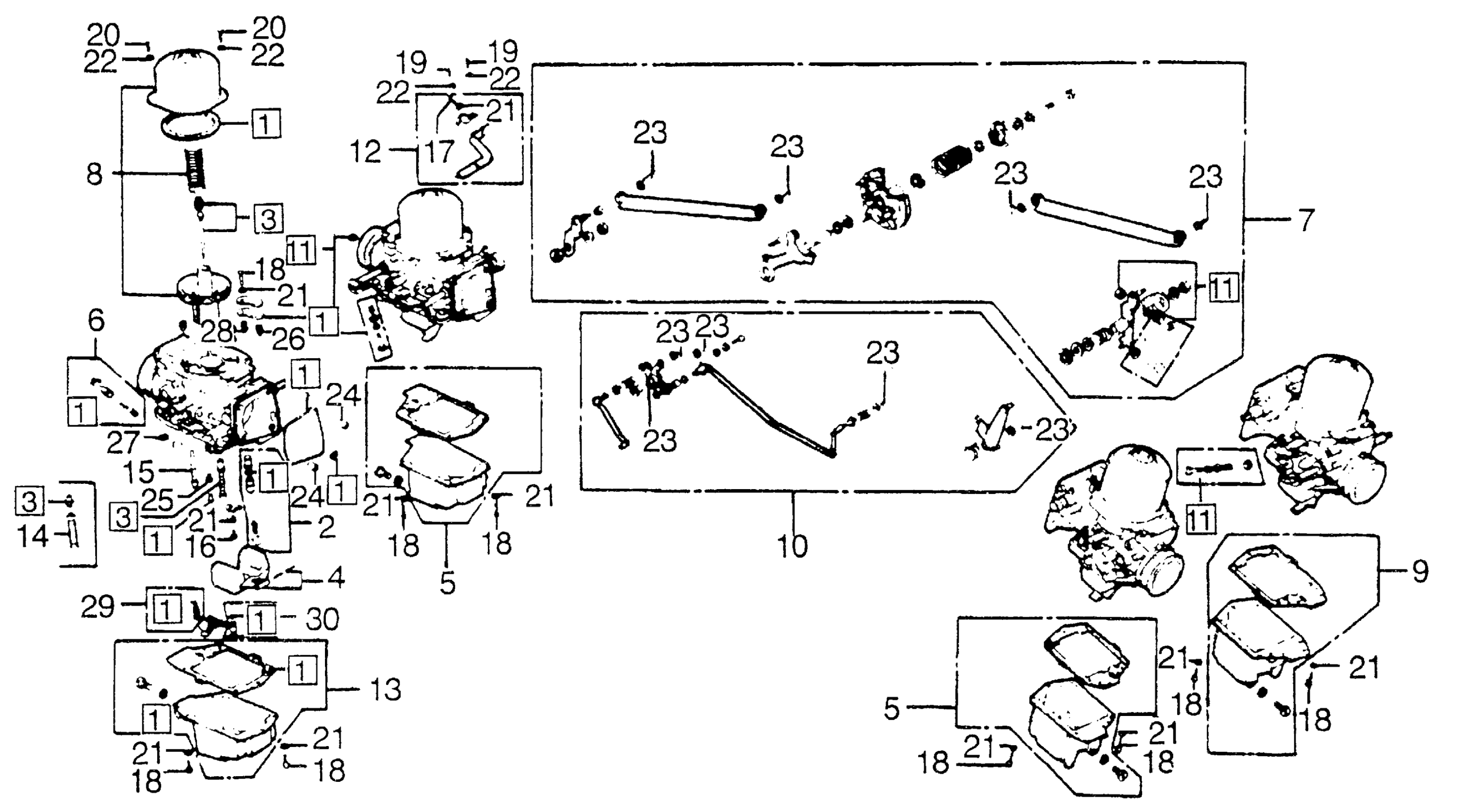

Honda GL1000A (77) GOLD WING, JPN, VIN# GL1-3000001 TO GL1-3025175 CARBURETOR COMPONENTS Diagram

#

Description
Price

1

GASKET SET

16010-371-004

Unavailable

2

VALVE SET, FLOAT This part replaces 16011-371-004.

16011-371-305

$37.20

2

VALVE SET, FLOAT This part replaces 16011-371-014.

16011-371-305

$37.20

2

VALVE SET, FLOAT

16011-371-305

$37.20

3

NEEDLE SET, JET (NOT AVAILABLE)

16012-371-772

$26.08

4

FLOAT SET

16013-567-004

Unavailable

5

CHAMBER SET A, FLOAT (NOT AVAILABLE)

16015-371-004

Unavailable

6

SCREW SET A This part replaces 16016-371-004.

16016-371-305

Unavailable

6

SCREW SET A

16016-371-305

Unavailable

7

LINK SET

16017-371-771

Unavailable

8

PISTON SET, VACUUM (NOT AVAILABLE)

16022-371-771

Unavailable

9

CHAMBER SET B, FLOAT (NOT AVAILABLE)

16023-371-004

Unavailable

10

ROD SET, CHOKE (NOT AVAILABLE)

16025-371-771

Unavailable

11

SCREW SET B

16028-371-004

Unavailable

12

PLATE SET, STAY (NOT AVAILABLE)

16035-371-004

Unavailable

13

CHAMBER SET C, FLOAT (NOT AVAILABLE)

16045-371-004

Unavailable

14

HOLDER, NEEDLE JET (NOT AVAILABLE)

16165-371-770

Unavailable

15

NOZZLE, MAIN (NOT AVAILABLE)

16166-371-770

Unavailable

16

SCREW, PAN (4X8)

93500-04008-0A

$1.49

17

SCREW, PAN (4X10)

93500-04010-0A

$1.49

18

SCREW, PAN (4X14)

93500-04014-0A

$1.49

19

SCREW, PAN (5X12)

93500-05012-0A

$1.49

20

SCREW, PAN (5X16)

93500-05016-0A

$1.49

21

WASHER, SPRING (4MM)

94111-04000

$1.49

22

WASHER, SPRING (5MM)

94111-05000

$1.49

23

PIN, SPLIT (1.0MM) This part replaces 94201-10080.

94201-10150

$1.49

23

PIN, SPLIT (1.0MM) This part replaces 94201-10100.

94201-10150

$1.49

23

PIN, SPLIT (1.0MM)

94201-10150

$1.49

24

PIN C, DOWEL (4X6.5)

94303-04065

$2.14

25

JET, SLOW (#35)

99103-611-0350

Unavailable

26

JET, SECONDARY AIR (#60)

99164-601-0600

Unavailable

27

JET, SLOW AIR (#110) (SOURCE: VINTAGE PARTS INC.)

99164-601-1100

Unavailable

28

JET, PRIMARY AIR (#120) (NOT AVAILABLE)

99164-601-1200

Unavailable

29

JET SET, MAIN (#62) (NOT AVAILABLE)

99201-601-0620

Unavailable

30

JET SET, SECONDARY MAIN (#120)

99202-601-1200

Unavailable
